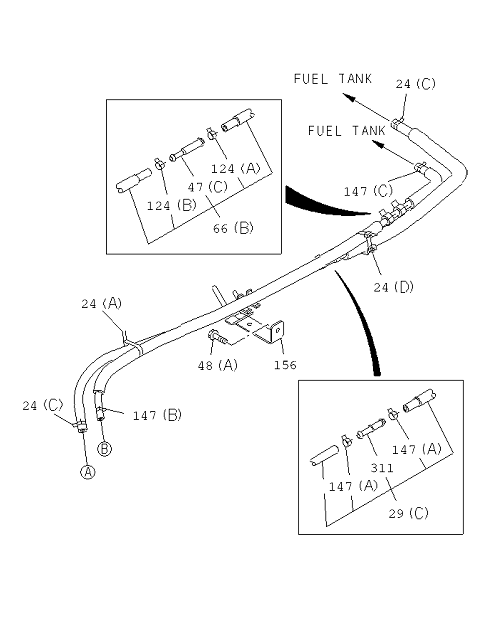

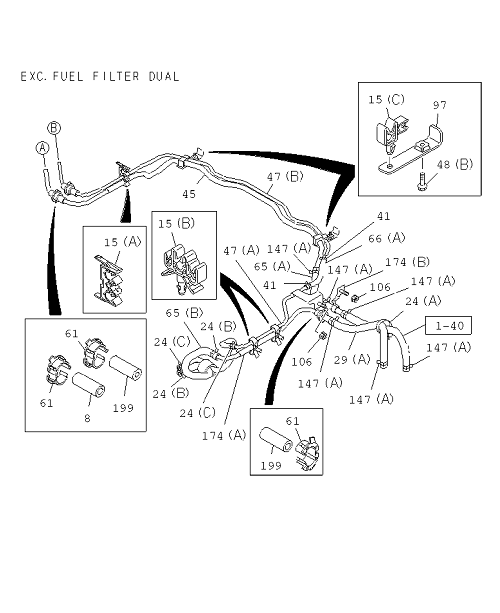

1-41 | FUEL PIPING; CHASSIS
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I8-97326 157-1 | CLIP; FUEL PIPE | 1 | 1208- | NQR71 | 04.930 (A) ID=10X2 OR 12X2 & 6.35 | ||
| 24 | I8-98150 358-0 | CLIP; FUEL HOSE | 2 | 1208- | NQR71 | 01.240 (B) ID=12 | ||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 2 | 1208- | NQR71 | (A) ID=16 | ||
| 66 | I0-01855 300-0 | HOSE; FUEL,RETURN PIPE | 1 | 1208- | NQR71 | |||
| 97 | I8-98057 653-0 | BRACKET; CLIP | 2 | 1208- | NQR71 | |||
| 24 | I5-09707 031-1 | CLIP; FUEL HOSE | 1 | 1208- | NQR71 | (A) L=140 IDN | ||
| 311 | I8-97353 668-0 | JOINT; HOSE | 1 | 1208- | NQR71 | |||
| 106 | I0-91180 110-0 | NUT; FUEL PIPE | 1 | 1208- | NQR71 | M10 FLANGE | ||
| 61 | I8-94128 319-A | GROMMET; PIPE TO FRAME | 2 | 1208- | NQR71 | |||
| 156 | I8-98041 250-2 | BRACKET; FUEL HOSE | 1 | 1208- | NQR71 | |||
| 24 | I5-09707 031-1 | CLIP; FUEL HOSE | 2 | 1208- | NQR71 | (A) L=140 IDN | ||
| 61 | I8-94128 319-A | GROMMET; PIPE TO FRAME | 1 | 1208- | NQR71 | |||
| 48 | I0-28650 825-0 | BOLT; BRKT | 2 | 1208- | NQR71 | |||
| 41 | I8-98150 358-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 1208- | NQR71 | |||
| 15 | I8-97215 437-0 | CLIP; FUEL PIPE | 2 | 1208- | NQR71 | (C) ID=12 & 6.35 | ||
| 29 | I0-01259 300-0 | HOSE; FUEL | 1 | 1208- | NQR71 | EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=280 SERVICED BY L=3000 | ||
| 124 | I8-98150 358-0 | CLIP; HOSE | 1 | 1208- | NQR71 | 01.240 (B) ID=12 | ||
| 29 | I8-98149 363-1 | HOSE; FUEL | 1 | 1208- | NQR71 | (C) IDN | ||
| 199 | I8-97077 629-A | PROTECTOR; FUEL PIPE | 1 | 1208- | NQR71 | OD=15 L=50 IDN | ||
| 15 | I8-97202 954-1 | CLIP; FUEL PIPE | 2 | 1208- | NQR71 | 04.686 (B) ID=12 & 6.35 & 4.76 | ||
| 8 | I8-94157 054-A | RUBBER; MTG | 1 | 1208- | NQR71 | OD=17 L=50 IDN | ||
| 47 | I8-98041 618-1 | PIPE; FUEL,RETURN | 1 | 1208- | NQR71 | |||
| 124 | I8-98150 357-0 | CLIP; HOSE | 1 | 1208- | NQR71 | (A) ID=13 | ||
| 174 | I8-98033 844-1 | PIPE; FUEL,FEED,FRT | 1 | 1208- | NQR71 | (A) | ||
| 199 | I8-97077 629-A | PROTECTOR; FUEL PIPE | 1 | 1208- | NQR71 | OD=15 L=50 IDN | ||
| 47 | I8-98113 911-1 | PIPE; FUEL,RETURN | 1 | 1208- | NQR71 | |||
| 29 | I8-98130 342-0 | HOSE; FUEL | 1 | 1208- | NQR71 | FUEL FILTER DUAL(S6B) (B) | ||
| 66 | I8-98149 364-1 | HOSE; FUEL,RETURN PIPE | 1 | 1208- | NQR71 | |||
| 147 | I8-98150 358-0 | CLIP; FUEL PIPE TO HOSE | 1 | 1208- | NQR71 | 01.240 (B) ID=12 | ||
| 48 | I0-28651 030-0 | BOLT; BRKT | 1 | 1208- | NQR71 | |||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 2 | 1208- | NQR71 | (A) ID=16 | ||
| 147 | I8-98150 357-0 | CLIP; FUEL PIPE TO HOSE | 1 | 1208- | NQR71 | (C) ID=13 | ||
| 24 | I1-09987 182-0 | CLIP; FUEL HOSE | 1 | 1208- | NQR71 | 02.559 (D) L=170.3 | ||
| 65 | I0-01259 300-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 1208- | NQR71 | |||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 2 | 1208- | NQR71 | FUEL FILTER DUAL(S6B) (A) ID=16 | ||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 2 | 1208- | NQR71 | (A) ID=16 | ||
| 106 | I0-91180 110-0 | NUT; FUEL PIPE | 1 | 1208- | NQR71 | |||
| 174 | I8-98041 616-0 | PIPE; FUEL,FEED,FRT | 1 | 1208- | NQR71 | (B) | ||
| 147 | I8-98008 098-0 | CLIP; FUEL PIPE TO HOSE | 2 | 1208- | NQR71 | (A) ID=16 | ||
| 24 | I5-09707 031-1 | CLIP; FUEL HOSE | 1 | 1208- | NQR71 | FUEL FILTER DUAL(S6B) (A) L=140 IDN | ||
| 24 | I8-98008 098-0 | CLIP; FUEL HOSE | 4 | 1208- | NQR71 | (C) ID=16 | ||
| 65 | I8-98179 936-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 1208- | NQR71 | |||
| 45 | I8-98113 910-0 | PIPE; FUEL,DELIVERY | 1 | 1208- | NQR71 | |||
| 47 | I8-98036 483-0 | PIPE; FUEL,RETURN | 1 | 1208- | NQR71 |
