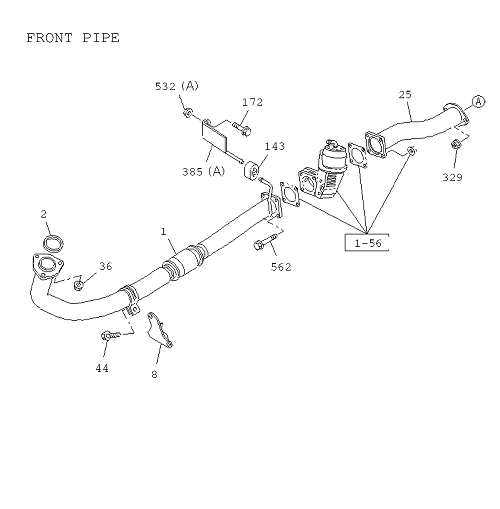

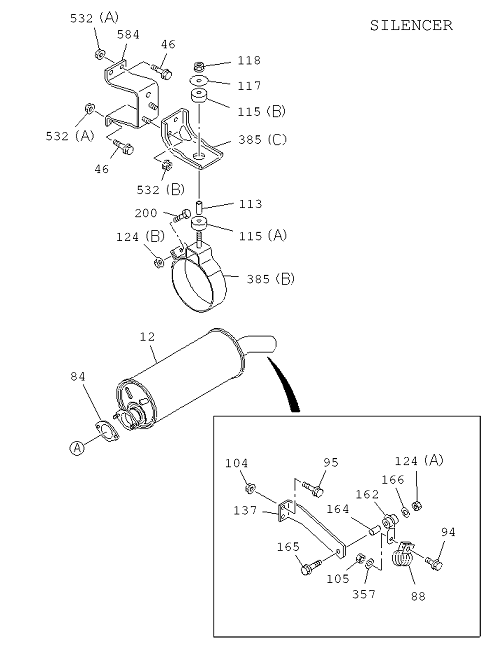

1-50 | EXHAUST PIPE AND SILENCER
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 95 | I0-28651 030-0 | BOLT; BRKT | 2 | 1208- | NQR71 | 00.029 M10X30 FLANGE | ||
| 36 | I8-97096 192-1 | NUT; EXH PIPE | 3 | 1208- | NQR71 | M10 FLANGE | ||
| 88 | I8-97373 158-0 | CLAMP; EXH PIPE | 1 | 1208- | NQR71 | |||
| 118 | I5-09440 006-0 | NUT; SILENCER MTG BRKT | 1 | 1208- | NQR71 | 07.874 M10 FLANGE IDN | ||
| 117 | I8-94319 341-0 | WASHER; PL,SILENCER MTG BRKT | 1 | 1208- | NQR71 | OD=55 | ||
| 532 | I0-91180 110-0 | NUT | 2 | 1208- | NQR71 | 03 . 162 (A) M10 FLANGE | ||
| 8 | I8-97238 728-0 | BRACKET; EXH PIPE | 1 | 1208- | NQR71 | .5506944444444 | ||
| 137 | I8-98173 203-0 | BRACKET; TAIL PIPE | 1 | 1208- | NQR71 | IDN | ||
| 124 | I0-91180 110-0 | NUT; SUPPORT RUBBER | 1 | 1208- | NQR71 | 03 . 162 (B) M10 FLANGE | ||
| 562 | I0-10855 870-0 | PLATE; STUD,BOLT | 4 | 1208- | NQR71 | 03 . 632 M8X70 | ||
| 105 | I0-91110 510-0 | NUT; CLAMP | 1 | 1208- | NQR71 | 00.833 M10 | ||
| 385 | I8-97076 020-0 | BRACKET; SILENCER MTG | 1 | 1208- | NQR71 | 03.706 (B) | ||
| 113 | I9-22151 217-0 | COLLAR; DIST,MTG BRKT | 1 | 1208- | NQR71 | 03.706 L=3 7.5 IDN | ||
| 385 | I8-97041 227-0 | BRACKET; SILENCER MTG | 1 | 1208- | NQR71 | (C) | ||
| 200 | I0-50740 845-0 | BOLT; SUPPORT RUBBER | 1 | 1208- | NQR71 | M8X45 W/LK WASHER | ||
| 162 | I8-98034 765-0 | RUBBER; SUPPORT,TAIL PIPE | 1 | 1208- | NQR71 | L=115 | ||
| 329 | I0-91180 110-0 | NUT; EXH PIPE TO PIPE | 2 | 1208- | NQR71 | 03.162 M10 FLANGE | ||
| 1 | I8-97187 143-1 | PIPE; EXH | 1 | 1208- | NQR71 | |||
| 115 | I8-94457 278-A | RUBBER; MTG,SILENCER | 1 | 1208- | NQR71 | (B) IDN | ||
| 46 | I0-28651 030-0 | BOLT; BRKT,EXH PIPE | 2 | 1208- | NQR71 | 00.029 M10X30 FLANGE | ||
| 84 | I8-94328 352-1 | GASKET; EXH PIPE | 1 | 1208- | NQR71 | 03 . 704 ID=64.7 | ||
| 124 | I0-91110 508-0 | NUT; SUPPORT RUBBER | 1 | 1208- | NQR71 | 02.334 (A) M8 IDN | ||
| 44 | I0-50740 845-0 | BOLT; BRKT | 1 | 1208- | NQR71 | 03.704 M8X45 W/LK WASHER | ||
| 12 | I8-98173 127-0 | SILENCER ASM; EXH | 1 | 1208- | NQR71 | IDN | ||
| 532 | I0-91180 108-0 | NUT | 2 | 1208- | NQR71 | 01. 062 (B) M8 FLANGE | ||
| 584 | I8-98173 132-0 | SPACER; EXH SILENCER | 1 | 1208- | NQR71 | |||
| 166 | I0-91614 810-0 | WASHER; PL,SUPPORT RUBBER,EXH PI | 1 | 1208- | NQR71 | 00.002 ID=10.5 OD=32 | ||
| 165 | I0-28051 070-0 | BOLT; SUPPORT RUBBER | 1 | 1208- | NQR71 | M10X7 0 FLANGE IDN | ||
| 172 | I0-28651 035-0 | BOLT | 2 | 1208- | NQR71 | 02.277 M10X3 5 FLANGE IDN | ||
| 115 | I8-94457 277-A | RUBBER; MTG,SILENCER | 1 | 1208- | NQR71 | (A) IDN | ||
| 104 | I0-91180 110-0 | NUT; BRKT | 2 | 1208- | NQR71 | 03 . 162 M10 FLANGE | ||
| 25 | I8-97361 724-0 | PIPE; EXH,BRK VLV TO SILENCER | 1 | 1208- | NQR71 | IDN | ||
| 2 | I8-97381 455-0 | GASKET; PIPE TO MANIF | 1 | 1208- | NQR71 | |||
| 164 | I9-22151 217-0 | COLLAR; DIST,TAIL PIPE | 1 | 1208- | NQR71 | L=3 7.5 IDN | ||
| 143 | I8-97166 498-1 | RUBBER; SUPPORT | 1 | 1208- | NQR71 | 3613 | ||
| 94 | I0-28051 045-0 | BOLT; CLAMP | 1 | 1208- | NQR71 | 00.685 M10X45 FLANGE | ||
| 357 | I0-91614 610-0 | WASHER; PL,CLAMP | 1 | 1208- | NQR71 | 00.002 ID=10.5 OD=22 | ||
| 532 | I0-91180 110-0 | NUT | 2 | 1208- | NQR71 | 03 . 162 (A) M10 FLANGE | ||
| 385 | I8-98173 128-0 | BRACKET; SILENCER MTG | 1 | 1208- | NQR71 | (A) |
