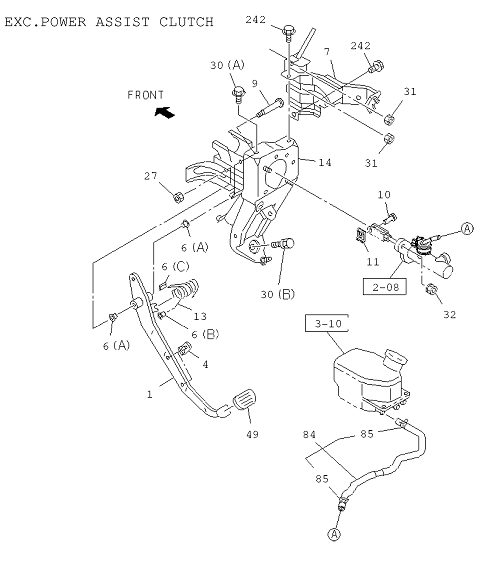

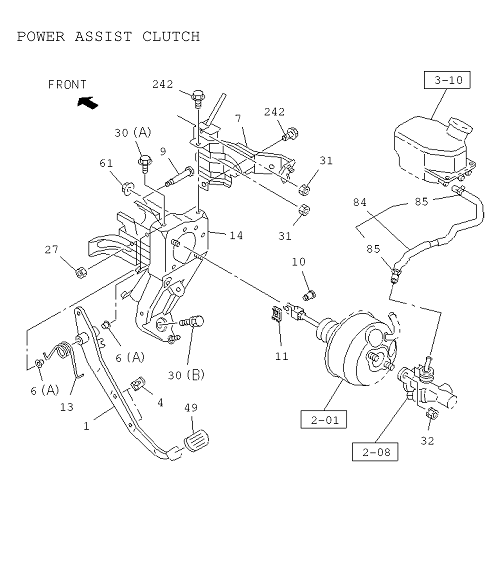

2-03 | CLUTCH PEDAL AND CONTROL
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 27 | I0-91380 010-0 | NUT; FULCRUM PIN | 1 | 1208- | NQR71 | 04.634 M10 LOCK NUT FLANGE | ||
| 84 | I8-98218 207-0 | HOSE; RUBBER,CLU LINE | 1 | 1209- | NQR71 | EXC. POWER ASSIST CLUTCH(S2T) | ||
| 61 | I8-94279 050-0 | NUT; BOOSTER TO BRKT | 4 | 1208- | NQR71 | POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER | ||
| 49 | I8-97853 413-2 | RUBBER; PAD,CLU PEDAL | 1 | 1208- | NQR71 | |||
| 14 | I8-98002 482-4 | BRACKET ASM; CLU PEDAL MTG | 1 | 1208- | NQR71 | POWER ASSIST CLUTCH(S2T) | ||
| 32 | I8-94279 050-0 | NUT; BRKT TO CLU M/CYL | 2 | 1208- | NQR71 | M8 W/LK WASHER | ||
| 242 | I0-28450 816-0 | BOLT; BRKT,CLUTCH | 2 | 1208- | NQR71 | 03.604 M8X16 FLANGE | ||
| 84 | I8-98025 422-1 | HOSE; RUBBER,CLU LINE | 1 | 1208-1208 | NQR71 | EXC. POWER ASSIST CLUTCH(S2T) | ||
| 4 | I8-97853 534-1 | STOPPER; CLU PEDAL | 2 | 1208- | NQR71 | |||
| 1 | I8-98002 484-0 | PEDAL; CLU | 1 | 1208- | NQR71 | POWER ASSIST CLUTCH(S2T) | ||
| 30 | I0-28661 025-0 | BOLT; CLU MTG BRKT | 1 | 1208- | NQR71 | 07.833 (A) M10X25 FLANGE IDN | ||
| 6 | I8-97853 619-0 | BUSHING; CLU PEDAL | 2 | 1208- | NQR71 | EXC. POWER ASSIST CLUTCH(S2T) (B) | ||
| 7 | I8-98029 186-4 | BRACKET; CLU PEDAL | 1 | 1208- | NQR71 | |||
| 6 | I8-94238 596-0 | BUSHING; CLU PEDAL | 2 | 1208- | NQR71 | 04.792 (A) | ||
| 85 | I8-98031 178-0 | CLIP; HOSE TO M/CYL | 2 | 1208-1208 | NQR71 | 4681 | ||
| 1 | I8-98034 754-0 | PEDAL; CLU | 1 | 1208- | NQR71 | EXC. POWER ASSIST CLUTCH(S2T) | ||
| 9 | I8-97866 667-0 | PIN; CLU PEDAL | 1 | 1208- | NQR71 | 4634 | ||
| 84 | I8-98218 205-0 | HOSE; RUBBER,CLU LINE | 1 | 1209- | NQR71 | POWER ASSIST CLUTCH(S2T) | ||
| 13 | I8-98374 602-0 | SPRING; ASSIST,CLU PEDAL | 1 | 1208- | NQR71 | EXC. POWER ASSIST CLUTCH(S2T) | ||
| 30 | I8-97313 188-0 | BOLT; CLU MTG BRKT | 1 | 1208- | NQR71 | 00.833 (B) M10X22 W/PL WASHER | ||
| 14 | I8-98034 750-0 | BRACKET ASM; CLU PEDAL MTG | 1 | 1208- | NQR71 | EXC. POWER ASSIST CLUTCH(S2T) | ||
| 6 | I8-97853 620-0 | BUSHING; CLU PEDAL | 1 | 1208- | NQR71 | EXC. POWER ASSIST CLUTCH(S2T) (C) | ||
| 10 | I8-98147 657-0 | PIN; CLU PEDAL | 1 | 1208- | NQR71 | 4634 | ||
| 11 | I8-98007 161-0 | PIN; SNAP,PUSH ROD TO PEDAL | 1 | 1208- | NQR71 | |||
| 31 | I8-94279 050-0 | NUT; MTG BRKT TO BODY | 2 | 1208- | NQR71 | 00.777 M8 W/LK WASHER | ||
| 13 | I8-98023 621-1 | SPRING; ASSIST,CLU PEDAL | 1 | 1208- | NQR71 | POWER ASSIST CLUTCH(S2T) | ||
| 84 | I8-98023 510-4 | HOSE; RUBBER,CLU LINE | 1 | 1208-1208 | NQR71 | POWER ASSIST CLUTCH(S2T) | ||
| 85 | I8-98168 080-0 | CLIP; HOSE TO M/CYL | 2 | 1209- | NQR71 |
