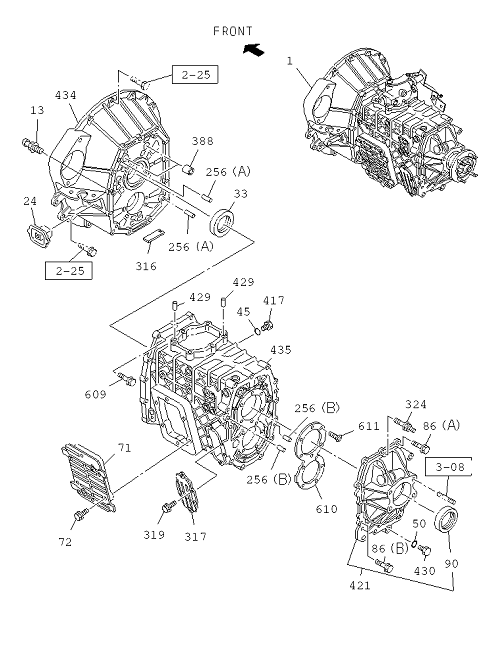

2-20 | MANUAL TRANSMISSION ASM AND CASE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 256 | I8-97135 423-0 | PIN; KNOCK | 2 | 1208- | NQR71 | |||
| 435 | I8-97379 375-0 | CASE; TRANS | 1 | 1208- | NQR71 | |||
| 610 | I8-97241 315-1 | RETAINER; BRG | 1 | 1208- | NQR71 | |||
| 86 | I0-28151 040-0 | BOLT; RR COVER | 10 | 1208- | NQR71 | |||
| 609 | I0-28151 040-0 | BOLT; HSG TO CASE | 13 | 1208- | NQR71 | 09.171 M10X40 FLANGE | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 1208- | NQR71 | |||
| 434 | I8-97237 099-6 | HOUSING; CLU | 1 | 1208- | NQR71 | |||
| 1 | I8-98187 418-0 | TRANSMISSION ASM; MANUAL | 1 | 1208- | NQR71 | |||
| 13 | I8-97255 384-1 | SUPPORT; SHIFT FORK | 1 | 1208- | NQR71 | |||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 1208- | NQR71 | |||
| 317 | I8-97252 626-0 | COVER; CASE | 1 | 1208- | NQR71 | |||
| 324 | I8-97365 379-0 | STUD; RR COVER | 1 | 1208- | NQR71 | 04.510 M10X15,M10X40 L=65 | ||
| 33 | I6-97253 550-0 | SEAL OIL,FRT C NKR71 | 1 | 1208- | NQR71 | (IADG) | ||
| 24 | I8-97255 201-0 | COVER; CHECK HOLE,DUST | 1 | 1208- | NQR71 | |||
| 33 | I8-97253 550-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1208- | NQR71 | |||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 1208- | NQR71 | |||
| 86 | I8-97365 377-0 | BOLT; RR COVER | 2 | 1208- | NQR71 | |||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 1208- | NQR71 | 04.510 OD=10 L=2 0 | ||
| 611 | I8-97365 354-0 | SCREW | 11 | 1208- | NQR71 | M10X2 7 TORQUES | ||
| 90 | I8-97253 552-1 | SEAL; OIL,RR COVER | 1 | 1208- | NQR71 | |||
| 90 | I6-97253 552-0 | SEAL; OIL RR COVER | 1 | 1208- | NQR71 | (IADG) | ||
| 33 | I6-97253 550-0 | SEAL OIL,FRT C NKR71 | 1 | 1208- | NQR71 | (IADG) | ||
| 388 | I8-97241 326-2 | BUSHING; CLU HSG | 2 | 1208- | NQR71 | |||
| 421 | I8-98020 029-0 | COVER; RR,TRANS | 1 | 1208- | NQR71 | |||
| 72 | I8-98014 142-0 | BOLT; SIDE COVER | 6 | 1208- | NQR71 | |||
| 71 | I8-97252 625-0 | COVER; SIDE,TRANS CASE | 1 | 1208- | NQR71 | |||
| 319 | I0-28050 820-0 | BOLT; COVER | 6 | 1208- | NQR71 | |||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 1208- | NQR71 | |||
| 45 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 1208- | NQR71 | |||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 1208- | NQR71 |
