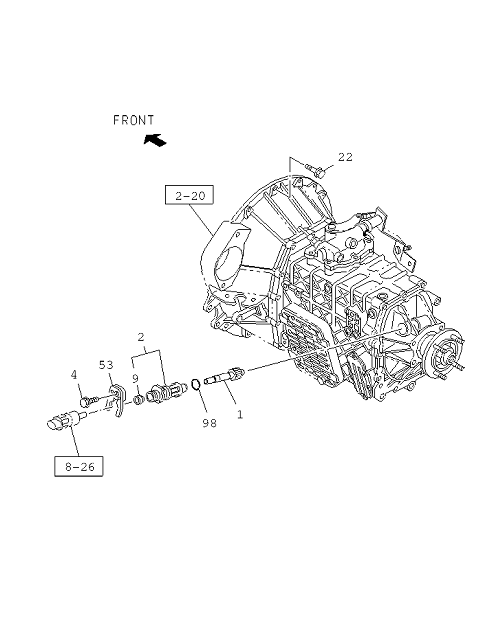

2-25 | SPEEDOMETER DRIVEN GEAR
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-97253 125-0 | BUSHING; DRIVEN GEAR,SPEEDOMETER | 1 | 1208- | NQR71 | FINAL GEAR RATIO 41/7(R41) MARK "12,13,14,15" | ||
| 9 | I8-97131 328-1 | SEAL; OIL,DRIVEN GEAR | 1 | 1208- | NQR71 | NOK | ||
| 22 | I0-28151 030-0 | BOLT; TRANS CASE TO ENG | 2 | 1208- | NQR71 | 09.171 M10X30 FLANGE | ||
| 2 | I8-97253 125-0 | BUSHING; DRIVEN GEAR,SPEEDOMETER | 1 | 1208- | NQR71 | FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-12 7(CTF) MARK "12,13,14,15" | ||
| 22 | I0-28151 035-0 | BOLT; TRANS CASE TO ENG | 3 | 1208- | NQR71 | 03.670 M10X35 FLANGE | ||
| 98 | I8-97075 755-0 | SEAL; OIL,BUSH | 1 | 1208- | NQR71 | 4439 | ||
| 2 | I8-97253 124-0 | BUSHING; DRIVEN GEAR,SPEEDOMETER | 1 | 1208- | NQR71 | FINAL GEAR RATIO 43/7(R42) | ||
| 1 | I8-97253 558-1 | GEAR; DRIVEN,SPD | 1 | 1208- | NQR71 | FINAL GEAR RATIO 43/7(R42) | ||
| 22 | I8-97365 449-0 | BOLT; TRANS CASE TO ENG | 2 | 1208- | NQR71 | 00.683 M10X55 FLANGE | ||
| 22 | I0-28151 030-0 | BOLT; TRANS CASE TO ENG | 2 | 1208- | NQR71 | 09.171 M10X30 FLANGE | ||
| 1 | I8-97253 561-1 | GEAR; DRIVEN,SPD | 1 | 1208- | NQR71 | FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-12 7(CTF) Z=14 | ||
| 1 | I8-97253 560-1 | GEAR; DRIVEN,SPD | 1 | 1208- | NQR71 | FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-12 7(CTF) Z=15 | ||
| 1 | I8-97253 560-1 | GEAR; DRIVEN,SPD | 1 | 1208- | NQR71 | FINAL GEAR RATIO 41/7(R41) | ||
| 53 | I8-98046 217-0 | PLATE; LOCK,DRIVEN GEAR | 1 | 1208- | NQR71 | |||
| 4 | I0-28650 820-0 | BOLT; RET,DRIVEN GEAR | 1 | 1208- | NQR71 | 01.531 M8X20 FLANGE IDN |
