2-26 | MANUAL TRANSMISSION GEAR
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 50 | I8-97241 237-1 | GEAR; 2ND,MAINSHAFT | 1 | 1208- | NQR71 | Z=3 8 | ||
| 524 | I8-97366 526-0 | SLEEVE & HUB ASM; TOP-4TH,OD | 1 | 1208- | NQR71 | |||
| 120 | I8-98258 279-0 | SLEEVE | 2 | 1208- | NQR71 | (A) Z=45 | ||

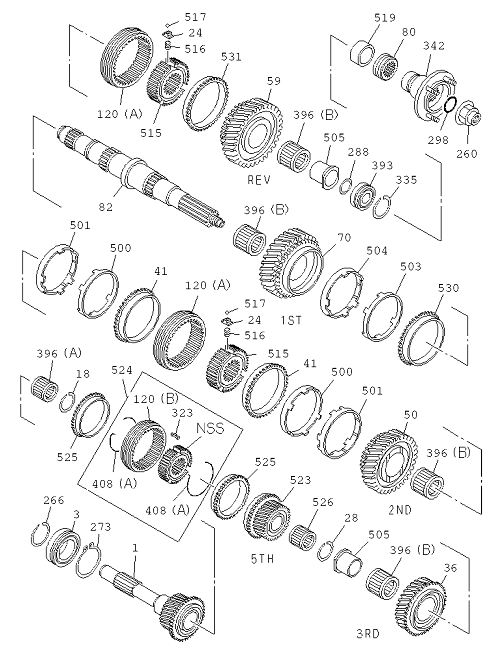

| 82 | I8-97253 117-3 | SHAFT; MAIN,TRANS | 1 | 1208- | NQR71 | Z=28-42-42-21 | ||
| 266 | I8-97286 916-0 | RING; SNAP,BRG INNER | 1 | 1208- | NQR71 | |||
| 523 | I8-97241 231-0 | GEAR; OD,MAINSHAFT | 1 | 1208- | NQR71 | Z=22 | ||
| 510 | I9-08160 825-0 | PIN; STRAIGHT,ANTI LASH | 3 | 1208- | NQR71 | .5986111111111 | ||
| 325 | I8-97252 667-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.35 | ||
| 273 | I8-97254 610-0 | RING; SNAP,BRG OUTER | 1 | 1208- | NQR71 | |||
| 335 | I8-97254 722-0 | RING; SNAP,BEARING | 1 | 1208- | NQR71 | |||
| 325 | I8-97306 189-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.17 | ||
| 408 | I8-97366 040-1 | SPRING | 2 | 1208- | NQR71 | (A) | ||
| 260 | I8-97360 410-0 | NUT; MAINSHAFT END | 1 | 1208- | NQR71 | 04.525 M27 H=25 | ||
| 314 | I8-97253 114-0 | BEARING; NEEDLE,REV GEAR | 1 | 1208- | NQR71 | NSK | ||
| 325 | I8-97252 674-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.77 | ||
| 325 | I8-97252 669-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.47 | ||
| 3 | I8-97253 098-A | BEARING; TOP GEAR SHAFT | 1 | 1208- | NQR71 | (IADG) | ||
| 396 | I8-97253 110-0 | BEARING; NEEDLE,MAINSHAFT | 4 | 1208- | NQR71 | (B) | ||
| 516 | I8-97254 835-0 | SPRING; SYNCHRO,INDEX | 6 | 1208- | NQR71 | |||
| 505 | I8-97253 119-2 | COLLAR; 3RD & REV | 2 | 1208- | NQR71 | |||
| 36 | I8-97241 234-0 | GEAR; 3RD,MAINSHAFT | 1 | 1208- | NQR71 | Z=3 4 | ||
| 135 | I8-98031 869-1 | GEAR; REV IDLER | 1 | 1208- | NQR71 | Z=25 | ||
| 288 | I8-97252 942-0 | SPACER; BRG,MAINSHAFT | 1 | 1208- | NQR71 | |||
| 396 | I8-97253 102-1 | BEARING; NEEDLE,MAINSHAFT | 1 | 1208- | NQR71 | (A) | ||
| 120 | I8-94421 871-1 | SLEEVE | 1 | 1208- | NQR71 | 04.535 (B) Z=45 | ||
| 93 | I8-97254 734-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1208- | NQR71 | ID=30.7 T=1 . 9 | ||
| 525 | I8-97309 532-0 | RING; BLOCK,TOP & 4TH,OD | 2 | 1208- | NQR71 | Z=45 | ||
| 408 | I8-94148 196-0 | SPRING | 3 | 1208- | NQR71 | 04.422 (B) | ||
| 531 | I8-97368 343-0 | RING; BLOCK,REV | 1 | 1208- | NQR71 | Z=45 | ||
| 501 | I8-97241 312-1 | RING; INSIDE,3RD & 2ND | 2 | 1208- | NQR71 | |||
| 132 | I8-97252 655-0 | SHAFT; REV | 1 | 1208- | NQR71 | |||
| 59 | I8-97241 244-0 | GEAR; REV MAINSHAFT | 1 | 1208- | NQR71 | Z=41 | ||
| 41 | I8-97241 306-1 | RING; BLOCK,2ND & 3RD | 2 | 1208- | NQR71 | Z=45 | ||
| 325 | I8-97252 670-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.53 | ||
| 519 | I8-97252 940-0 | COLLAR; MAINSHAFT END,5TH | 1 | 1208- | NQR71 | 4415 | ||
| 18 | I8-97254 728-0 | RING; SNAP,CLU HUB | 1 | 1208- | NQR71 | ID=30.7 T=1.8 | ||
| 93 | I8-97254 742-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1208- | NQR71 | ID=30.7 T=2.3 | ||
| 393 | I8-97253 105-1 | BEARING; MAINSHAFT END | 1 | 1208- | NQR71 | |||
| 342 | I8-98031 640-0 | FLANGE; OUTPUT | 1 | 1208- | NQR71 | |||
| 298 | I8-98028 226-0 | GASKET; MAINSHAFT | 1 | 1208- | NQR71 | ID=30.6 T=5.7 | ||
| 325 | I8-97257 622-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.89 | ||
| 325 | I8-97252 675-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.83 | ||
| 507 | I8-97253 107-0 | BEARING; COUNTER SHAFT,FRT & RR | 2 | 1208- | NQR71 | |||
| 1 | I8-98031 848-0 | SHAFT; TOP GEAR,TRANS | 1 | 1208- | NQR71 | Z=2 8 | ||
| 323 | I8-94448 202-2 | INSERT | 3 | 1208- | NQR71 | |||
| 325 | I8-97306 188-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.11 | ||
| 325 | I8-97252 671-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.59 | ||
| 24 | I8-97241 313-1 | BLOCK; INDEX,SYN | 6 | 1208- | NQR71 | |||
| 515 | I8-97241 298-3 | HUB; CLU,1ST & REV,2ND & 3RD | 2 | 1208- | NQR71 | |||
| 530 | I8-97241 306-1 | RING; BLOCK,LOW | 1 | 1208- | NQR71 | Z=45 | ||
| 517 | I8-97252 935-0 | BALL; SYNCHRO,INDEX | 6 | 1208- | NQR71 | |||
| 325 | I8-97252 672-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.65 | ||
| 93 | I8-97254 740-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1208- | NQR71 | ID=30.7 T=2.1 | ||
| 325 | I8-97252 668-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.41 | ||
| 325 | I8-97306 190-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.23 | ||
| 500 | I8-97241 309-1 | RING; OUTSIDE,3RD & 2ND | 2 | 1208- | NQR71 | |||
| 325 | I8-97252 673-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.71 | ||
| 3 | I8-97253 098-1 | BEARING; TOP GEAR SHAFT | 1 | 1208- | NQR71 | |||
| 80 | I8-97253 556-0 | GEAR; SPD DRIVE | 1 | 1208- | NQR71 | Z=4 | ||

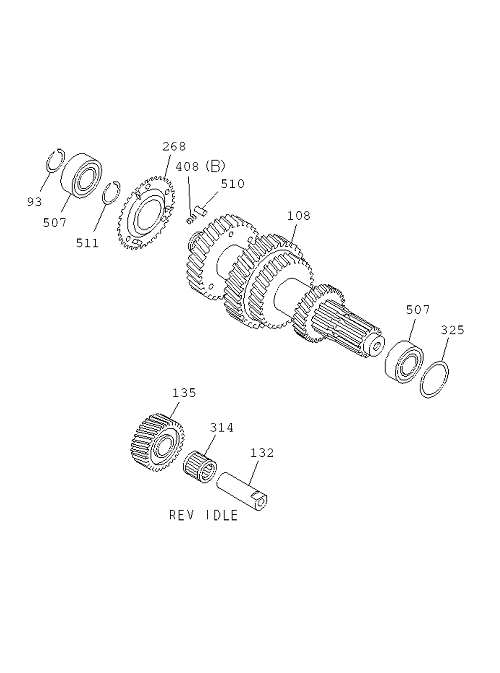

| 108 | I8-97380 630-1 | SHAFT; COUNTER | 1 | 1208- | NQR71 | Z=45-49-33-20 | ||
| 526 | I8-97253 112-0 | BEARING; NEEDLE,4TH & 5TH | 1 | 1208- | NQR71 | |||
| 268 | I8-97257 300-1 | PLATE; ANTI LASH,COUNTER | 1 | 1208- | NQR71 | |||
| 28 | I8-97254 743-0 | RING; SNAP,3RD GEAR | 1 | 1208- | NQR71 | ID=46.5 T=1.8 | ||
| 511 | I8-97254 767-0 | RING; SNAP,ANTI LASH PLATE | 1 | 1208- | NQR71 | |||
| 325 | I8-97252 666-0 | SHIM; COUNTER SHAFT BRG | 1 | 1208- | NQR71 | ID=62.7 T=2.29 | ||
| 503 | I8-97241 309-1 | RING; OUTSIDE,LOW & REV | 1 | 1208- | NQR71 | |||
| 70 | I8-97350 010-0 | GEAR; 1ST,MAINSHAFT | 1 | 1208- | NQR71 | Z=43 | ||
| 504 | I8-97241 312-1 | RING; INSIDE,LOW & REV | 1 | 1208- | NQR71 |
