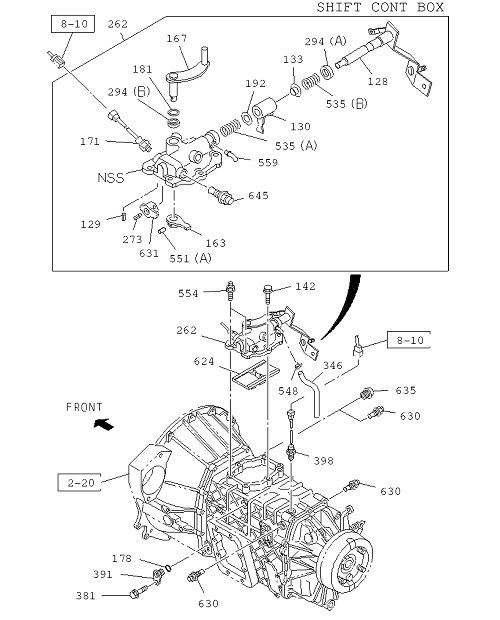

2-30 | GEAR SHIFTER AND QUADRANT BOX
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 633 | I8-97362 743-0 | ROD; GEAR SHIFT,4TH,5TH | 1 | 1208- | NQR71 | |||
| 178 | I9-09567 113-0 | GASKET; PLUG | 1 | 1208- | NQR71 | |||
| 624 | I8-97241 317-3 | PLATE; INTER LOCK | 1 | 1208- | NQR71 | |||
| 629 | I8-97237 107-1 | BRIDGE; LEVER | 1 | 1208- | NQR71 | |||
| 483 | I8-97241 326-2 | BUSHING; SHIFT ARM | 4 | 1208- | NQR71 | |||
| 167 | I8-98039 444-0 | LEVER; SELECT,EXTERNAL | 1 | 1208- | NQR71 | |||
| 128 | I8-98079 799-0 | LEVER; SHIFT,EXTERNAL | 1 | 1208- | NQR71 | |||
| 6 | I8-97241 344-0 | LEVER; RELAY | 1 | 1208- | NQR71 | |||
| 129 | I1-09748 031-0 | PIN; SPR,SHIFT | 1 | 1208- | NQR71 | D=4 | ||
| 25 | I8-98255 926-1 | ARM; SHIFT,2ND & 3RD | 1 | 1208- | NQR71 | |||
| 133 | I8-97305 667-0 | SEAT; SPR | 1 | 1208- | NQR71 | |||
| 192 | I8-97305 661-0 | WASHER; PL | 1 | 1208- | NQR71 | |||
| 631 | I8-97305 666-0 | STOPPER; SPRING | 1 | 1208- | NQR71 | |||
| 36 | I8-97241 329-1 | BLOCK; SHIFT,4TH & 5TH | 1 | 1208- | NQR71 | (A) | ||
| 181 | I8-97367 327-0 | WASHER; PL,SELECT LEVER | 1 | 1208- | NQR71 | |||
| 142 | I8-97365 376-0 | BOLT; QUAD BOX | 4 | 1208- | NQR71 | 04.356 M8X22 FLANGE | ||
| 625 | I8-97362 741-0 | ROD; GEAR SHIFT,LOW,REV,2ND & 3R | 1 | 1208- | NQR71 | |||
| 554 | I8-97365 378-0 | STUD; CONT BOX | 2 | 1208- | NQR71 | |||
| 548 | I8-97031 674-0 | CLIP; HOSE | 1 | 1208- | NQR71 | |||
| 535 | I8-97323 772-0 | SPRING; LEVER | 1 | 1208- | NQR71 | |||
| 551 | I8-97241 340-0 | PIN; SPRING | 1 | 1208- | NQR71 | |||
| 630 | I8-98019 536-0 | DETENT ASM | 3 | 1208- | NQR71 | |||
| 535 | I8-98015 113-0 | SPRING; LEVER | 1 | 1208- | NQR71 | |||
| 645 | I8-98019 536-0 | DETENT ASM | 1 | 1208- | NQR71 | 4307 | ||
| 195 | I8-97365 375-0 | BOLT | 2 | 1208- | NQR71 | M10X2 8 FLANGE REAMER | ||
| 294 | I8-97363 225-0 | SEAL; OIL,SELECT | 1 | 1208- | NQR71 | |||
| 49 | I8-97258 716-0 | ARM; SHIFT,4TH & 5TH | 1 | 1208- | NQR71 | |||
| 234 | I8-94460 357-0 | RING; SNAP | 1 | 1208- | NQR71 | 04.307 ID=12 | ||
| 398 | I8-98324 878-0 | SWITCH; REV LAMP | 1 | 1208- | NQR71 | |||
| 130 | I8-97306 647-0 | LEVER; SHIFT,INTERNAL | 1 | 1208- | NQR71 | |||
| 171 | I8-98324 878-0 | SWITCH; NEUTRAL | 1 | 1208- | NQR71 | .5680555555556 | ||
| 634 | I8-97241 327-1 | BLOCK; SHIFT,LOW,REV | 1 | 1208- | NQR71 | |||
| 551 | I1-09748 032-0 | PIN; SPRING | 1 | 1208- | NQR71 | |||
| 273 | I8-97103 142-0 | PIN; SPR,STOPPER | 1 | 1208- | NQR71 | |||
| 294 | I8-97305 662-0 | SEAL; OIL,SELECT | 1 | 1208- | NQR71 | |||
| 346 | I8-97309 855-0 | HOSE; AIR | 1 | 1208- | NQR71 | |||
| 391 | I8-97300 273-1 | PLUG; SW HOLE | 1 | 1208- | NQR71 | |||
| 635 | I8-97380 892-0 | PLUG; DETENT | 1 | 1208- | NQR71 | .1430555555556 | ||
| 262 | I8-98079 798-0 | BOX ASM; SHIFT CONT | 1 | 1208- | NQR71 | |||
| 381 | I0-28650 616-0 | BOLT | 1 | 1208- | NQR71 | |||
| 1 | I8-97241 320-2 | ARM; SHIFT,1ST & REV | 1 | 1208- | NQR71 | |||
| 163 | I8-97305 663-0 | LEVER; SELECT,INTERNAL | 1 | 1208- | NQR71 | |||
| 559 | I8-97358 318-0 | PIPE; BREATHER | 1 | 1208- | NQR71 | |||
| 36 | I8-97241 330-0 | BLOCK; SHIFT,4TH & 5TH | 1 | 1208- | NQR71 | (B) | ||
| 551 | I8-97011 596-2 | PIN; SPRING | 4 | 1208- | NQR71 |
