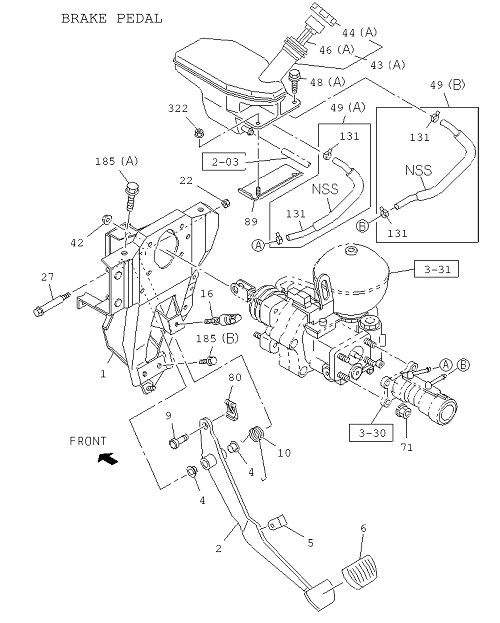

3-10 | BRAKE PEDAL AND CONTROL
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I0-91380 010-0 | NUT; SHAFT | 1 | 1208- | NQR71 | M10 LOCK NUT FLANGE | ||
| 200 | I0-91180 108-0 | NUT; BRKT | 2 | 1208- | NQR71 | 01.062 M8 FLANGE | ||
| 6 | I8-97853 413-2 | COVER; BRK PEDAL | 1 | 1208- | NQR71 | .5756944444444 | ||

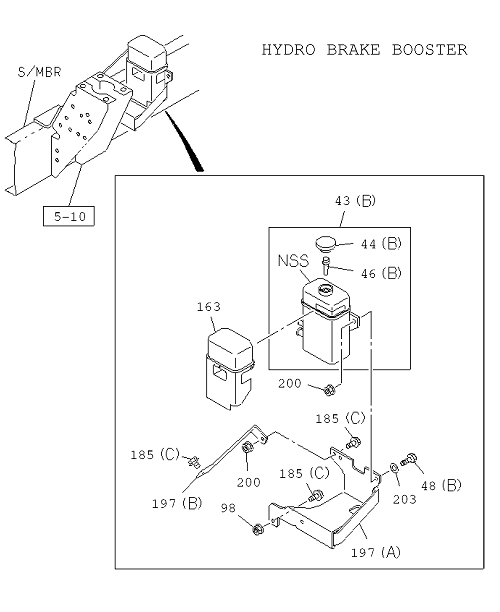

| 43 | I8-97306 217-0 | TANK ASM; OIL | 1 | 1208- | NQR71 | (B) | ||
| 44 | I8-94146 153-2 | CAP; OIL TANK | 1 | 1208- | NQR71 | 06 . 635 (B) | ||
| 185 | I8-97313 188-0 | BOLT; BRKT | 2 | 1208- | NQR71 | 00.833 (B) M10X2 2 W/PL WASHER | ||
| 71 | I8-94279 050-0 | NUT; BRK M/CYL | 4 | 1208- | NQR71 | 00.777 M8 W/LK WASHER | ||
| 89 | I8-98014 337-1 | BRACKET; M/CYL | 1 | 1208- | NQR71 | |||
| 16 | I8-98000 028-0 | SWITCH; STOP LAMP | 1 | 1208- | NQR71 | |||
| 163 | I8-97164 749-1 | COVER; OIL TANK | 1 | 1208- | NQR71 | |||
| 46 | I8-98022 269-0 | FILTER; RE S ERVOIR,BRK | 1 | 1208- | NQR71 | (A) | ||
| 80 | I8-98007 161-0 | PIN; SNAP,BRK PEDAL | 1 | 1208- | NQR71 | .5784722222222 | ||
| 185 | I0-28650 825-0 | BOLT; BRKT | 4 | 1208- | NQR71 | 06.216 (C) M8X25 FLANGE IDN | ||
| 197 | I8-97173 342-2 | BRACKET; OIL TANK | 1 | 1208- | NQR71 | (A) | ||
| 10 | I8-97853 212-1 | SPRING; RETURN,BRK PEDAL | 1 | 1208- | NQR71 | |||
| 2 | I8-98011 432-0 | PEDAL; BRK | 1 | 1208- | NQR71 | |||
| 185 | I0-28661 025-0 | BOLT; BRKT | 2 | 1208- | NQR71 | 07.833 (A) M10X2 5 FLANGE IDN | ||
| 203 | I0-91610 708-0 | WASHER; PL,OIL TANK | 2 | 1208- | NQR71 | 04.595 ID=8.4 OD=22 | ||
| 43 | I8-97387 217-3 | TANK ASM; OIL | 1 | 1208- | NQR71 | (A) | ||
| 44 | I8-98022 268-0 | CAP; OIL TANK | 1 | 1208- | NQR71 | (A) | ||
| 4 | I8-94238 596-0 | BUSHING; BRK PEDAL | 2 | 1208- | NQR71 | .7166666666667 | ||
| 197 | I8-97333 555-2 | BRACKET; OIL TANK | 1 | 1208- | NQR71 | (B) | ||
| 9 | I8-98147 657-0 | PIN; JAW JOINT | 1 | 1208- | NQR71 | |||
| 1 | I8-98091 563-0 | BRACKET ASM; PEDAL | 1 | 1208- | NQR71 | |||
| 49 | I8-97387 667-1 | HOSE; OIL TANK TO BRK M/CYL | 1 | 1208- | NQR71 | (B) | ||
| 131 | I8-98031 178-0 | CLIP; RUBBER HOSE,OIL TANK TO BR | 4 | 1208- | NQR71 | |||
| 27 | I8-97866 667-0 | SHAFT; BRK PEDAL | 1 | 1208- | NQR71 | |||
| 48 | I8-97370 668-0 | BOLT; OIL TANK TO BRKT | 1 | 1208- | NQR71 | 08.077 (A) M6X2 0 W/PL WASHER | ||
| 42 | I8-94279 050-0 | NUT; BRK PEDAL | 4 | 1208- | NQR71 | 00.777 M8 W/LK WASHER | ||
| 48 | I0-28650 825-0 | BOLT; OIL TANK TO BRKT | 2 | 1208- | NQR71 | 06.216 (B) M8X25 FLANGE IDN | ||
| 46 | I8-97094 732-0 | FILTER; RE S ERVOIR,BRK | 1 | 1208- | NQR71 | 06 .600 (B) | ||
| 49 | I8-97387 666-1 | HOSE; OIL TANK TO BRK M/CYL | 1 | 1208- | NQR71 | (A) | ||
| 98 | I0-91180 108-0 | NUT; BRKT | 3 | 1208- | NQR71 | 01.062 M8 FLANGE | ||
| 5 | I8-98029 187-0 | STOPPER; BRK PEDAL | 1 | 1208- | NQR71 | |||
| 322 | I0-91180 106-0 | NUT; OIL TANK | 1 | 1208- | NQR71 | 01.062 M6 FLANGE |
