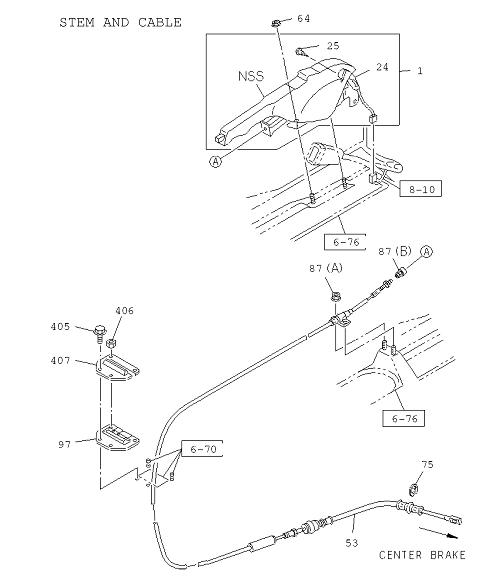

3-11 | PARKING BRAKE CONTROL
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 405 | I0-28450 620-0 | BOLT; GROMMET | 2 | 1208- | NQR71 | 00.785 M6X20 FLANGE | ||
| 53 | I8-98130 270-0 | CABLE; PARK BRK,FRT LWR | 1 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> | ||
| 91 | I8-97036 333-1 | CLIP; PARKING BRK CABLE | 1 | 1208- | NQR71 | |||
| 241 | I0-91180 108-0 | NUT; BRKT | 2 | 1208- | NQR71 | |||
| 87 | I8-98034 313-1 | NUT | 1 | 1208- | NQR71 | |||
| 225 | I0-91180 108-0 | NUT; CABLE CLIP | 1 | 1208- | NQR71 | |||
| 8 | I8-98110 964-0 | GUIDE; PARKING BRK | 1 | 1208- | NQR71 | |||
| 338 | I0-28650 825-0 | SCREW; GUIDE | 1 | 1208- | NQR71 | 06 .216 M8X25 FLANGE IDN | ||
| 64 | I0-91380 008-0 | NUT; PARKING BRK | 2 | 1208- | NQR71 | |||
| 235 | I8-98106 986-1 | BRACKET; CONT CABLE TO FRAME | 1 | 1208- | NQR71 | |||
| 237 | I0-91180 110-0 | NUT; BRKT TO FRAME | 1 | 1208- | NQR71 | |||
| 87 | I0-91180 108-0 | NUT | 2 | 1208- | NQR71 | |||
| 181 | I0-28650 825-0 | BOLT; BRKT | 3 | 1208- | NQR71 | |||
| 324 | I8-98034 185-1 | BRACKET | 1 | 1208- | NQR71 | |||
| 91 | I8-97036 333-1 | CLIP; PARKING BRK CABLE | 1 | 1208- | NQR71 | |||
| 407 | I1-33657 674-0 | RETAINER; GROMMET | 1 | 1208- | NQR71 | 4047 | ||
| 91 | I8-97036 333-1 | CLIP; PARKING BRK CABLE | 1 | 1208- | NQR71 | |||
| 53 | I8-98079 119-2 | CABLE; PARK BRK,FRT LWR | 1 | 1208- | NQR71 | EXC. FRONT WIDE TREAD<7GV> | ||
| 406 | I0-91180 106-0 | NUT; GROMMET | 2 | 1208- | NQR71 | 01.062 M6 FLANGE | ||
| 238 | I0-28651 030-0 | BOLT; CLIP TO BRKT | 1 | 1208- | NQR71 | |||
| 1 | I8-97426 513-0 | STEM ASM; PARKING BRK | 1 | 1208- | NQR71 | |||
| 338 | I8-98046 876-0 | SCREW; GUIDE | 1 | 1208- | NQR71 | 16.069 M8X35 FLANGE | ||
| 301 | I0-91180 108-0 | NUT; BRKT,BRK & CLU PEDAL | 1 | 1208- | NQR71 | |||
| 97 | I8-97065 212-1 | GROMMET; PARKING BRK CABLE | 1 | 1208- | NQR71 | |||
| 235 | I8-98087 322-0 | BRACKET; CONT CABLE TO FRAME | 1 | 1208- | NQR71 | |||
| 181 | I0-28050 816-0 | BOLT; BRKT | 1 | 1208- | NQR71 | |||
| 225 | I0-91180 108-0 | NUT; CABLE CLIP | 2 | 1208- | NQR71 | |||
| 324 | I8-98111 394-1 | BRACKET | 1 | 1208- | NQR71 | |||
| 324 | I8-98034 115-0 | BRACKET | 1 | 1208- | NQR71 | |||
| 75 | I0-91805 512-0 | RING; SNAP,HAND BRK CABLE | 1 | 1208- | NQR71 | |||
| 91 | I8-98023 622-0 | CLIP; PARKING BRK CABLE | 1 | 1208- | NQR71 | |||
| 238 | I0-28650 825-0 | BOLT; CLIP TO BRKT | 2 | 1208- | NQR71 | |||
| 25 | I8-98152 463-0 | SCREW; SW,PARKING BRK | 1 | 1208- | NQR71 | |||
| 24 | I8-98238 611-0 | SWITCH ASM; PARK BRK | 1 | 1208- | NQR71 | |||
| 324 | I8-98099 516-0 | BRACKET | 1 | 1208- | NQR71 | |||
| 85 | I1-09701 012-0 | CLIP; BRKT | 1 | 1208- | NQR71 | |||
| 8 | I8-98096 374-0 | GUIDE; PARKING BRK | 1 | 1208- | NQR71 |
