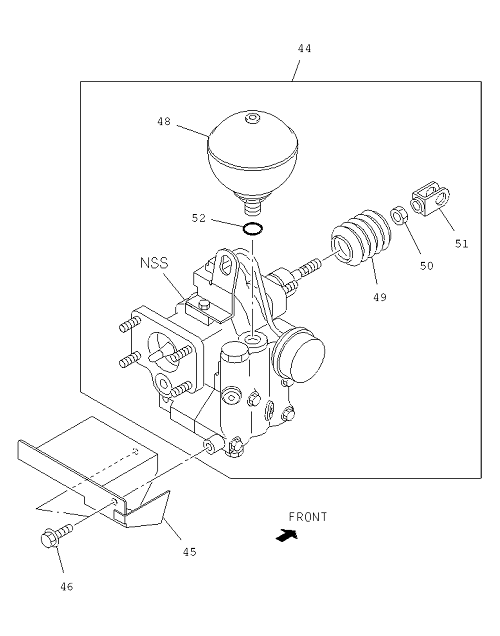

3-31 | BRAKE MASTER VAC AND BRAKE BOOSTER
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 49 | I8-97191 043-0 | GUARD; HYDRO BRK BOOSTER | 1 | 1208- | NQR71 | |||
| 46 | I0-28050 610-0 | BOLT; HEAT PROTECTOR | 2 | 1208- | NQR71 | 03.671 M6X10 FLANGE IDN | ||
| 50 | I8-98038 349-0 | NUT; HYDRO BRK BOOSTER | 1 | 1208- | NQR71 | |||
| 45 | I8-98031 415-1 | PROTECTOR; HEAT | 1 | 1208- | NQR71 | |||
| 51 | I8-98038 347-0 | CLEVIS; HYDRO BRK BOOSTER | 1 | 1208- | NQR71 | |||
| 44 | I8-97532 751-0 | BOOSTER; HYDRAULIC BRK | 1 | 1208- | NQR71 | |||
| 52 | I1-33739 065-0 | GASKET; HYDRO BRK BOOSTER | 1 | 1208- | NQR71 | 4910 | ||
| 48 | I8-98038 346-0 | ACCUMULATOR; HYDRO BOOSTER | 1 | 1208- | NQR71 |
