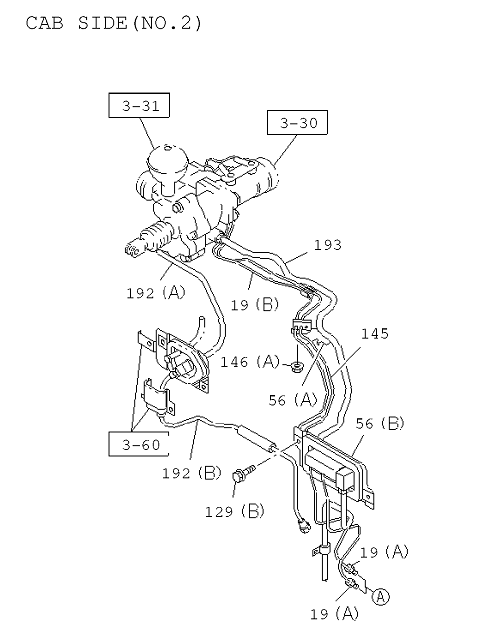

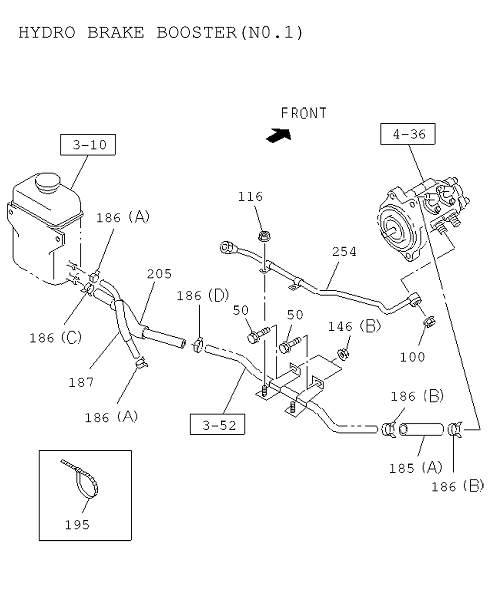

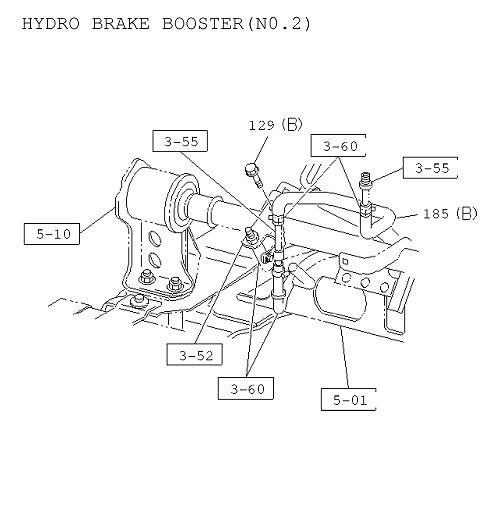

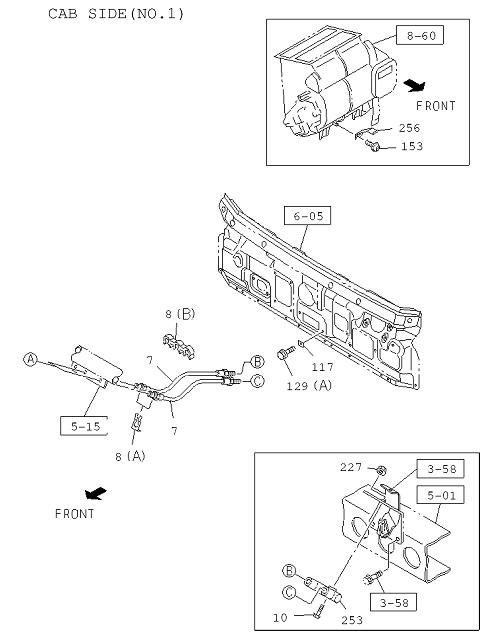

3-50 | BRAKE PIPING; OIL,MASTER CYLINDER
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 56 | I8-98154 266-1 | BRACKET; UNION,BRK | 1 | 1208- | NQR71 | (B) | ||
| 186 | I8-98150 355-0 | CLIP; HOSE | 2 | 1208- | NQR71 | 06.672 (B) ID=21 | ||
| 186 | I8-98008 098-0 | CLIP; HOSE | 2 | 1208- | NQR71 | 03.162 (A) ID=16 | ||
| 7 | I8-98029 865-0 | HOSE; FLEX,PIPE TO 5 WAY JOINT | 2 | 1208- | NQR71 | |||
| 116 | I0-91180 106-0 | NUT | 2 | 1208- | NQR71 | 01.062 M6 FLANGE | ||
| 100 | I8-97358 958-0 | NUT; HYDRAULIC UNIT | 1 | 1208- | NQR71 | |||
| 185 | I8-98085 720-0 | HOSE; RUBBER,SUCTION | 1 | 1208- | NQR71 | (B) | ||
| 186 | I8-98150 355-0 | CLIP; HOSE | 1 | 1208- | NQR71 | (D) ID=21 | ||
| 192 | I8-98193 137-0 | PIPE; PRESSURE | 1 | 1208- | NQR71 | (B) | ||
| 56 | I8-98098 679-0 | BRACKET; UNION,BRK | 1 | 1208- | NQR71 | (A) | ||
| 185 | I8-97330 513-0 | HOSE; RUBBER,SUCTION | 1 | 1208- | NQR71 | (A) | ||
| 129 | I8-98081 030-0 | BOLT; BRKT | 2 | 1208- | NQR71 | 08.857 (A) M6X2 0 W/LK&PL WASHER | ||
| 10 | I0-28650 640-0 | BOLT; JOINT | 1 | 1208- | NQR71 | 00.685 M6X40 FLANGE | ||
| 117 | I8-97856 616-0 | SEAL; UNION,BRK PIPE JOINT | 2 | 1208- | NQR71 | 08.845 IDN | ||
| 256 | I8-98163 521-0 | BRACKET; BRK PIPE | 1 | 1208- | NQR71 | FORGED AIR VENTILATION(C3 9),HEATER & DEFRO STER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> | ||
| 19 | I8-98098 682-1 | PIPE; BRK,M/CYL TO UNION | 1 | 1208- | NQR71 | (B) | ||
| 8 | I8-97365 304-0 | CLIP; FLEX HOSE,CABLE SIDE | 2 | 1208- | NQR71 | (A) | ||
| 146 | I8-94279 050-0 | NUT; BRKT | 1 | 1208- | NQR71 | 00.777 (A) M8 W/LK WASHER | ||
| 153 | I0-72180 512-0 | SCREW; BRKT FIX | 1 | 1208- | NQR71 | FORGED AIR VENTILATION(C3 9),HEATER & DEFRO STER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 M5X12 TAPPING IDN | ||
| 19 | I8-98043 501-2 | PIPE; BRK,M/CYL TO UNION | 2 | 1208- | NQR71 | (A) | ||
| 227 | I0-91180 108-0 | NUT; JOINT | 2 | 1208- | NQR71 | 01.062 M8 FLANGE | ||
| 193 | I8-98098 683-0 | PIPE; RETURN | 1 | 1208- | NQR71 | |||
| 145 | I8-98098 680-1 | PIPE; BRK,METERING VLV TO UNION | 1 | 1208- | NQR71 | |||
| 146 | I0-91180 108-0 | NUT; BRKT | 2 | 1208- | NQR71 | 01.062 (B) M8 FLANGE | ||
| 186 | I8-97359 141-0 | CLIP; HOSE | 1 | 1208- | NQR71 | 03.278 (C) ID=22 | ||
| 192 | I8-98127 262-0 | PIPE; PRESSURE | 1 | 1208- | NQR71 | (A) | ||
| 254 | I8-97334 118-1 | PIPE; BRAKE,2WAY | 1 | 1208- | NQR71 | |||
| 129 | I0-28050 612-0 | BOLT; BRKT | 1 | 1208- | NQR71 | 03 .162 (B) M6X12 FLANGE | ||
| 195 | I5-09707 030-1 | CLIP; HOSE | 2 | 1208- | NQR71 | 02.559 L=250 IDN | ||
| 253 | I5-47456 009-1 | JOINT | 1 | 1208- | NQR71 | 4686 | ||
| 187 | I8-98100 245-0 | HOSE; RUBBER,OIL TANK | 1 | 1208- | NQR71 | |||
| 50 | I0-28050 816-0 | BOLT; PIPE | 2 | 1208- | NQR71 | 02.343 M8X16 FLANGE | ||
| 8 | I8-97076 471-0 | CLIP; FLEX HOSE,CABLE SIDE | 1 | 1208- | NQR71 | 04.686 (B) | ||
| 205 | I8-97334 259-1 | HOSE; TANK TO PIPE | 1 | 1208- | NQR71 |
