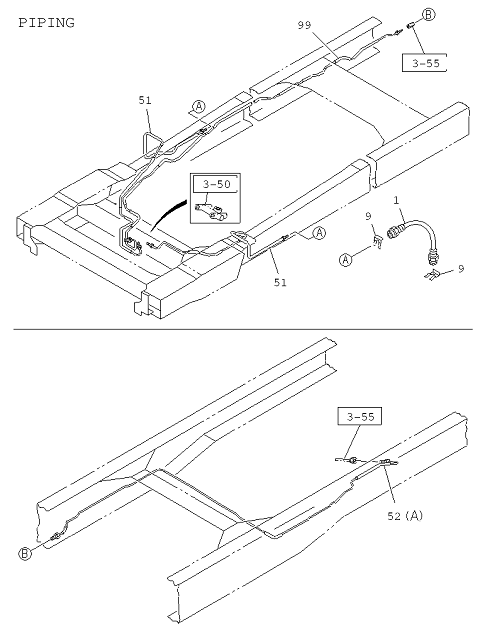

3-52 | BRAKE PIPING; OIL,FRONT
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 51 | I8-98136 043-0 | PIPE; BRK | 1 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> | ||
| 1 | I8-97039 543-1 | HOSE; FLEX,FRT BRK | 2 | 1208- | NQR71 | EXC. FRONT WIDE TREAD<7GV> | ||
| 51 | I8-98136 044-0 | PIPE; BRK | 1 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> | ||
| 9 | I8-97360 054-0 | CLIP; FLEX HOSE,FRT BRK | 2 | 1208- | NQR71 | |||
| 51 | I8-98065 766-1 | PIPE; BRK | 1 | 1208- | NQR71 | EXC. FRONT WIDE TREAD<7GV> | ||
| 99 | I8-98057 259-0 | PIPE ASM; 4/5/6 WAY | 1 | 1208- | NQR71 | |||
| 1 | I8-97115 907-0 | HOSE; FLEX,FRT BRK | 2 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> | ||

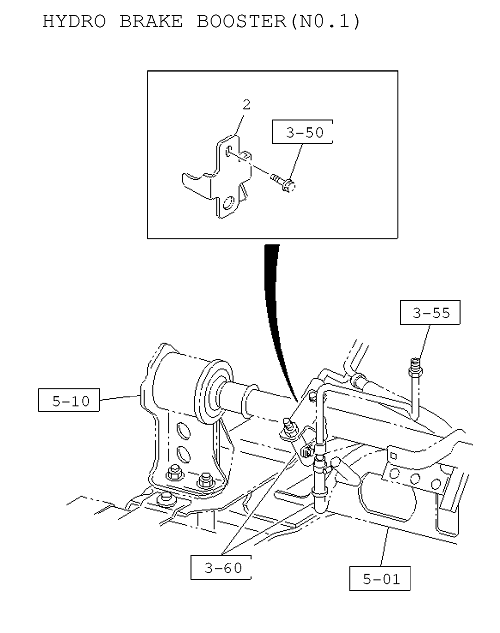

| 2 | I8-98136 577-0 | BRACKET; FLEX HOSE,FRT BRK | 1 | 1208- | NQR71 | |||
| 52 | I8-98057 264-0 | PIPE; BRK | 1 | 1208- | NQR71 | |||

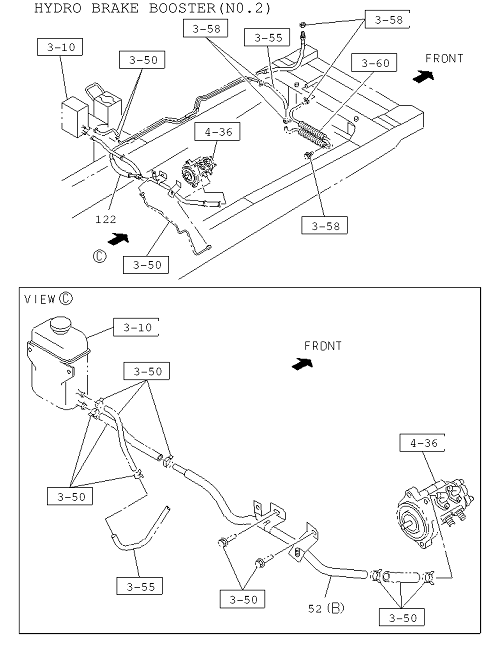

| 122 | I8-98214 082-0 | PIPE ASM; BRK,2 WAY | 1 | 1208- | NQR71 | |||
| 52 | I8-97370 410-0 | PIPE; BRK | 1 | 1208- | NQR71 | |||
| 51 | I8-98065 765-1 | PIPE; BRK | 1 | 1208- | NQR71 | EXC. FRONT WIDE TREAD<7GV> |
