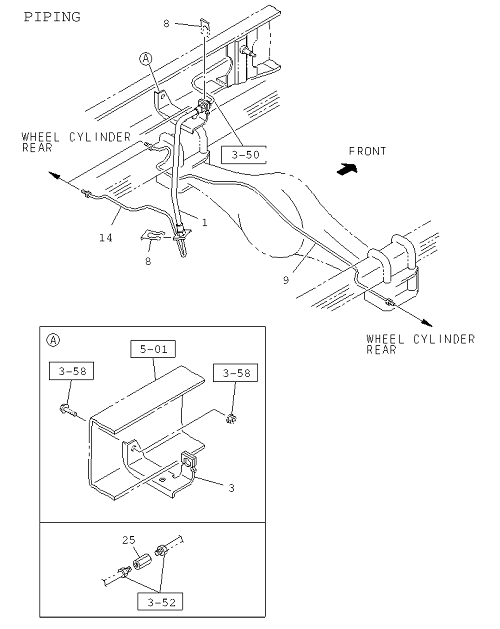

3-55 | BRAKE PIPING; OIL,REAR
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 60 | I8-98080 549-0 | PIPE ASM; BRK | 1 | 1208- | NQR71 | |||
| 1 | I8-97089 061-0 | HOSE; FLEX,RR BRK | 1 | 1208- | NQR71 | |||
| 9 | I8-98026 057-0 | PIPE; BRK,RR AXLE | 1 | 1208- | NQR71 | |||
| 3 | I8-97205 714-1 | BRACKET; FLEX HOSE,RR BRK | 1 | 1208- | L | NQR71 | ||
| 118 | I8-98158 200-0 | HOSE; PIPE TO PIPE | 1 | 1208- | NQR71 | |||
| 8 | I8-97360 054-0 | CLIP; RR BRK | 2 | 1208- | NQR71 | |||
| 14 | I8-97359 748-0 | PIPE; BRK,FLEX HOSE TO WHEEL CYL | 1 | 1208- | NQR71 | |||
| 60 | I8-98041 326-1 | PIPE ASM; BRK | 1 | 1208- | NQR71 | |||
| 25 | I0-92107 005-0 | CONNECTOR | 1 | 1208- | NQR71 | |||
| 60 | I8-98088 313-1 | PIPE ASM; BRK | 1 | 1208- | NQR71 |
