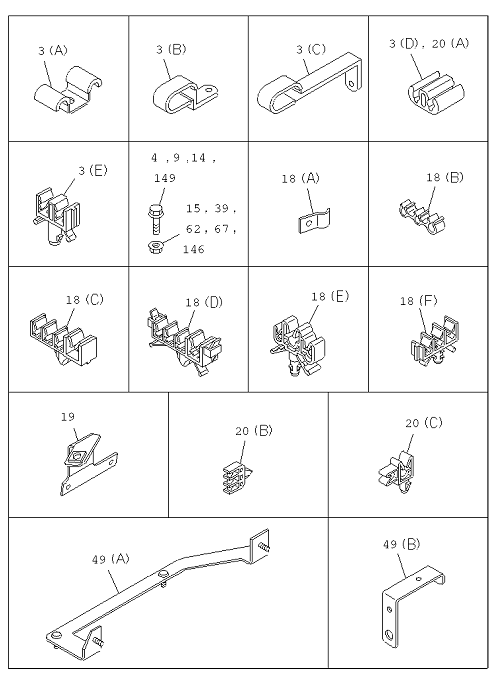

3-58 | FIXING PARTS; OIL PIPING
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I8-97215 437-0 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | 03.162 (C) ID=12 & 6.35 | ||
| 67 | I0-91111 514-0 | NUT; BRKT | 1 | 1208- | NQR71 | 06.515 M14 | ||
| 39 | I0-91180 108-0 | NUT; BRKT FIX | 1 | 1208- | NQR71 | 1062 | ||
| 18 | I8-97168 819-0 | CLIP; BRK PIPE | 2 | 1208- | NQR71 | (C) ID=10 & 4.76X3 | ||
| 3 | I1-09701 101-0 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | |||
| 18 | I8-97168 819-0 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | (C) ID=10 & 4.76X3 | ||
| 18 | I1-09700 372-0 | CLIP; BRK PIPE | 2 | 1208- | NQR71 | (A) B=18 L=2 0 | ||
| 149 | I0-28650 620-0 | BOLT; HOSE | 1 | 1208- | NQR71 | 03.162 M6X2 0 FLANGE IDN | ||
| 18 | I8-97326 158-1 | CLIP; BRK PIPE | 6 | 1208- | NQR71 | (D) ID=10 & 4.76X3 | ||
| 18 | I8-97202 954-1 | CLIP; BRK PIPE | 3 | 1208- | NQR71 | (E) ID=12 & 6.35 & 4.76 | ||
| 49 | I8-98041 600-0 | BRACKET; BRK PIPE | 1 | 1208- | NQR71 | (A) | ||
| 62 | I0-91180 110-0 | NUT | 2 | 1208- | NQR71 | 03.162 M10 FLANGE | ||
| 3 | I8-94252 455-2 | CLIP; BRK PIPE | 3 | 1208- | NQR71 | |||
| 3 | I8-97018 546-0 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | |||
| 3 | I1-09700 744-0 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | |||
| 3 | I8-97018 546-0 | CLIP; BRK PIPE | 2 | 1208- | NQR71 | |||
| 4 | I0-28650 825-0 | BOLT; BRKT | 2 | 1208- | NQR71 | |||
| 18 | I8-97326 158-1 | CLIP; BRK PIPE | 7 | 1208- | NQR71 | (D) ID=10 & 4.76X3 | ||
| 146 | I0-91180 108-0 | NUT; PIPE | 1 | 1208- | NQR71 | 01.062 M8 FLANGE | ||
| 49 | I8-98033 802-1 | BRACKET; BRK PIPE | 1 | 1208- | NQR71 | (B) | ||
| 3 | I8-94252 455-2 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | |||
| 20 | I8-94250 923-2 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | (B) | ||
| 67 | I0-91180 110-0 | NUT; BRKT | 1 | 1208- | NQR71 | 03.162 M10 FLANGE | ||
| 14 | I0-28650 825-0 | BOLT; CLIP,OIL PIPE | 2 | 1208- | NQR71 | |||
| 3 | I1-09700 072-0 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | |||
| 146 | I0-91180 110-0 | NUT; PIPE | 2 | 1208- | NQR71 | 03.162 M10 FLANGE | ||
| 19 | I8-97389 845-2 | BRACKET; OIL PIPE | 1 | 1208- | NQR71 | |||
| 18 | I8-94146 043-0 | CLIP; BRK PIPE | 1 | 1208- | NQR71 | (B) | ||
| 20 | I8-94474 113-0 | CLIP; BRK PIPE | 3 | 1208- | NQR71 | 03.162 (A) | ||
| 9 | I0-28650 825-0 | BOLT; BRKT | 1 | 1208- | NQR71 | |||
| 15 | I0-91180 108-0 | NUT; CLIP,OIL PIPE | 2 | 1208- | NQR71 | 1062 | ||
| 4 | I0-28651 025-0 | BOLT; BRKT | 1 | 1208- | NQR71 | |||
| 18 | I8-97064 484-1 | CLIP; BRK PIPE | 2 | 1208- | NQR71 | 03.162 (F) ID=10 & 6.4 & 4.8 |
