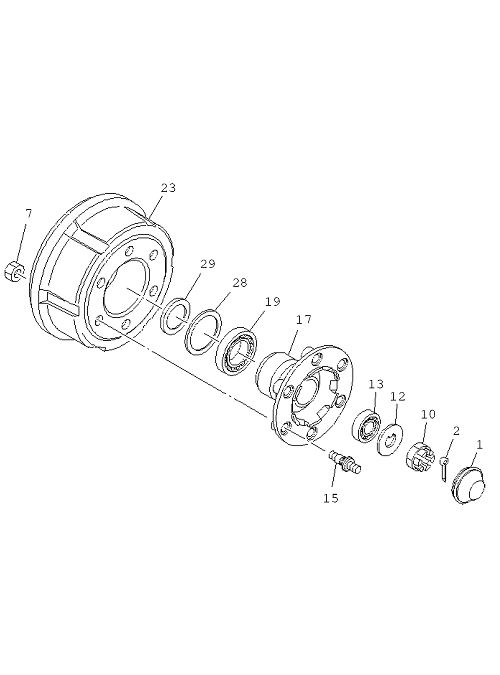

4-11 | FRONT HUB AND DRUM OR ROTOR
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 7 | I0-91110 522-0 | NUT; FRT HUB | 12 | 1208- | NQR71 | 07.172 M22 | ||
| 13 | I9-00093 172-0 | BEARING; HUB OUTER,FRT AXLE | 2 | 1208- | NQR71 | |||
| 2 | I0-81125 040-0 | PIN; SPLIT, HUB TO AXLE SHAFT | 2 | 1208- | NQR71 | OD=4.6 L=40 | ||
| 12 | I8-98282 435-0 | WASHER; LK,FRT HUB BRG | 2 | 1208- | NQR71 | |||
| 17 | I8-97131 236-0 | HUB; FRT AXLE | 2 | 1208- | NQR71 | |||
| 29 | I8-97234 513-0 | DISTANCE PIECE; HUB BRKT | 2 | 1208- | NQR71 | NTN | ||
| 1 | I8-98331 242-1 | CAP; HUB,FRT AXLE | 2 | 1208- | NQR71 | |||
| 13 | I9-00093 172-A | BEARING; HUB OUTER, FRT AXLE | 2 | 1208- | NQR71 | (IADG) | ||
| 15 | I8-97131 283-3 | PIN; WHEEL,FRT AXLE | 6 | 1208- | NQR71 | M20X28,M22X50 RH THREAD | ||
| 28 | I8-94248 117-1 | SEAL; OIL,FRT HUB | 2 | 1208- | NQR71 | |||
| 10 | I8-94247 357-1 | NUT; FRT HUB BRG | 2 | 1208- | NQR71 | 6022 | ||
| 15 | I8-97131 284-3 | PIN; WHEEL,FRT AXLE | 6 | 1208- | NQR71 | M20X28 LH THREAD,M22X50 RH THREAD | ||
| 23 | I8-97188 115-0 | DRUM; BRK,FRT | 2 | 1208- | NQR71 | |||
| 28 | I6-94248 117-0 | SEAL OIL FR HUB | 2 | 1208- | NQR71 | (IADG) | ||
| 19 | I8-98171 254-0 | BEARING; HUB INNER,FRT AXLE | 2 | 1208- | NQR71 | |||
| 19 | I8-98171 254-A | BEARING; HUB INNER, FRT AXLE | 2 | 1208- | NQR71 | (IADG) |
