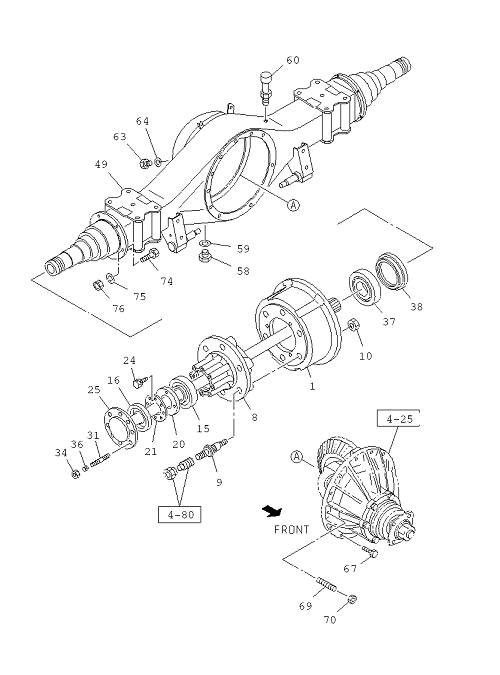

4-20 | 4-20 REAR AXLE CASE AND SHAFT
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I9-00093 609-A | BEARING; HUB OUTER, RR AXLE | 2 | 1208- | NQR71 | (IADG) NSK | ||
| 31 | I8-97359 803-0 | STUD; AXLE SHAFT TO HUB | 16 | 1208- | NQR71 | M10X30 L=49 | ||
| 37 | I8-97122 938-0 | BEARING; HUB INNER,RR AXLE | 2 | 1208- | NQR71 | |||
| 37 | I8-97122 938-A | BEARING; HUB INNER, RR AXLE | 2 | 1208- | NQR71 | (IADG) | ||
| 15 | I9-00093 609-A | BEARING; HUB OUTER, RR AXLE | 2 | 1208- | NQR71 | (IADG) NSK | ||
| 10 | I0-91110 522-0 | NUT; WHEEL PIN,RR AXLE | 12 | 1208- | NQR71 | 07.172 M22 | ||
| 67 | I0-50561 050-0 | BOLT; FINAL DRIVE SETTING | 4 | 1208- | NQR71 | M10X50 W/LK WASHER IDN | ||
| 16 | I8-98202 912-0 | SEAL; OIL,RR HUB,OUTER | 2 | 1208- | NQR71 | NOK | ||
| 1 | I8-97102 001-3 | DRUM; BRK,RR | 2 | 1208- | NQR71 | |||
| 49 | I8-97222 079-4 | CASE; RR AXLE | 1 | 1208- | NQR71 | |||
| 76 | I7-05014 012-A | NUT; RR BRK ASM SETTING | 12 | 1208- | NQR71 | 07.833 M14 | ||
| 74 | I8-98007 879-0 | BOLT; RR BRK ASM SETTING | 12 | 1208- | NQR71 | M14X40 | ||
| 9 | I8-97081 585-4 | PIN; WHEEL,RR AXLE | 6 | 1208- | NQR71 | M20X28 LH THREAD,M2 2X5 7 RH THREAD | ||
| 8 | I8-97107 549-2 | HUB; RR AXLE | 2 | 1208- | NQR71 | |||
| 64 | I8-94462 734-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 1208- | NQR71 | ID=20 OD=30 | ||
| 63 | I8-98009 333-0 | PLUG; OIL FILLER,AXLE CASE | 1 | 1208- | NQR71 | M20X10.5 | ||
| 38 | I8-97122 937-0 | SEAL; OIL,RR HUB,INNER | 2 | 1208- | NQR71 | |||
| 70 | I7-05110 010-A | NUT; CARRIER | 2 | 1208- | NQR71 | 04.085 M10 FLANGE | ||
| 15 | I9-00093 609-A | BEARING; HUB OUTER,RR AXLE | 2 | 1208- | NQR71 | (IADG) NSK | ||
| 34 | I7-05110 010-A | NUT; AXLE SHAFT | 16 | 1208- | NQR71 | 04.085 M10 FLANGE | ||
| 67 | I0-50561 040-0 | BOLT; FINAL DRIVE SETTING | 7 | 1208- | NQR71 | 06.156 M10X40 W/LK WASHER IDN | ||
| 60 | I8-98006 960-0 | BREATHER; RR AXLE CASE | 1 | 1208- | NQR71 | L=2 9 | ||
| 24 | I0-28050 610-0 | BOLT; LK WASHER | 4 | 1208- | NQR71 | 03.671 M6X10 FLANGE IDN | ||
| 58 | I8-97307 060-0 | PLUG; DRAIN,AXLE CASE | 1 | 1208- | NQR71 | M16X12.5 | ||
| 9 | I8-97081 584-4 | PIN; WHEEL,RR AXLE | 6 | 1208- | NQR71 | M20X28,M22X57 RH THREAD | ||
| 69 | I8-97359 802-0 | STUD; AXLE CASE | 2 | 1208- | NQR71 | M10X40.5 L=52.5 | ||
| 75 | I0-91510 814-0 | WASHER; LK,RR BRK ASM SETTING | 12 | 1208- | NQR71 | 06.174 ID=14.2 | ||
| 25 | I8-97134 439-0 | SHAFT; AXLE,RR | 2 | 1208- | NQR71 | L=885 | ||
| 16 | I8-98202 912-0 | SEAL; OIL,RR HUB,OUTER | 2 | 1208- | NQR71 | TKK | ||
| 20 | I8-97137 094-0 | NUT; BRG,RR HUB | 2 | 1208- | NQR71 | M55 | ||
| 59 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 1208- | NQR71 | 01.252 ID=16.2 OD=24 | ||
| 38 | I6-97122 937-0 | SEAL; OIL,RR HUB,INNER | 2 | 1208- | NQR71 | (IADG) | ||
| 36 | I8-97360 004-0 | WASHER; SPECIAL,AXLE SHAFT | 16 | 1208- | NQR71 | ID=10.5 | ||
| 21 | I9-09653 002-1 | WASHER; LK,BRG NUT | 2 | 1208- | NQR71 | ID=55 |
