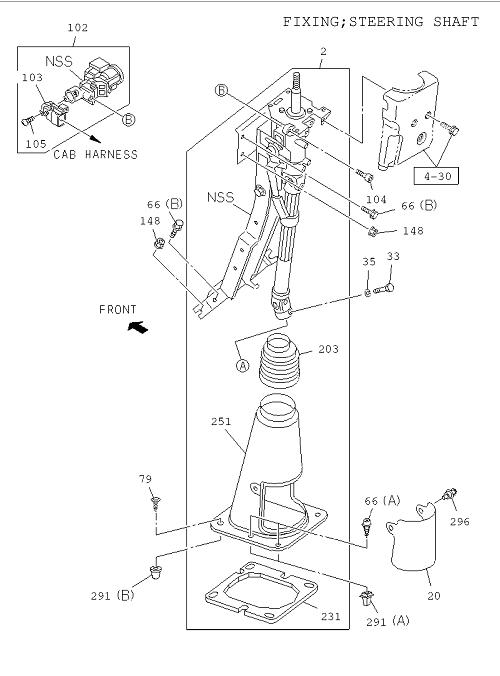

4-31 | STEERING COLUMN AND SHAFT
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 104 | I8-97321 385-0 | BOLT; STRG LOCK TO COLUMN | 2 | 1208- | NQR71 | M8X2 0 | ||
| 203 | I8-98137 331-0 | BOOT; STRG COLUMN LWR | 1 | 1208- | NQR71 | IDN | ||
| 172 | I8-98081 033-0 | BRACKET; STRG | 1 | 1208- | NQR71 | (B) | ||
| 35 | I0-91510 808-0 | WASHER; LK,STRG SHAFT | 1 | 1208- | NQR71 | 02.559 ID=8.2 | ||
| 95 | I8-98055 055-0 | BOLT; STRG UNIT | 3 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> M12X4 7 FLANGE | ||
| 2 | I8-97406 375-7 | SHAFT ASM; STRG | 1 | 1208- | NQR71 | BLACK IDN | ||
| 66 | I8-98051 939-0 | BOLT; STRG COLUMN | 2 | 1208- | NQR71 | (B) M8X2 4.5 W/LK&PL WASHER | ||
| 148 | I8-97329 625-0 | NUT; COLUMN TO BRKT | 3 | 1208- | NQR71 | 01.840 M8 W/DISHED WASHER | ||
| 321 | I8-98055 055-0 | BOLT; BRKT,STRG | 6 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> 06.509 M12X4 7 FLANGE | ||
| 107 | I8-97359 618-0 | NUT; BRKT | 3 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> 06.509 M12 FLANGE | ||
| 350 | I8-98196 098-0 | STUD; BRACKET | 1 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> | ||
| 66 | I0-72180 518-0 | BOLT; STRG COLUMN | 4 | 1208- | NQR71 | (A) M5X18 TAPPING | ||
| 96 | I8-97359 618-0 | NUT; STRG UNIT | 1 | 1208- | NQR71 | M12 FLANGE | ||
| 348 | I1-09709 288-0 | CLIP; BRKT,STRG | 2 | 1208- | NQR71 | ID=5-12 L=22 | ||
| 291 | I8-98029 442-1 | GROMMET; STRG SHAFT COVER | 2 | 1208- | NQR71 | (B) IDN | ||
| 79 | I8-97002 822-1 | CLIP; STRG COLUMN COVER | 2 | 1208- | NQR71 | 16.800 L=19 BLACK IDN | ||
| 172 | I8-98196 129-0 | BRACKET; STRG | 1 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> (C) | ||
| 103 | I8-98045 349-0 | SWITCH; IGNITION | 1 | 1208- | NQR71 | |||
| 33 | I8-97359 615-0 | BOLT; STRG SHAFT TO UNIT | 1 | 1208- | NQR71 | M8X3 0 | ||
| 251 | I8-97417 049-0 | COVER; LWR | 1 | 1208- | NQR71 | BLACK IDN | ||
| 66 | I0-28650 820-0 | BOLT; STRG COLUMN | 2 | 1208- | NQR71 | 01.531 (B) M8X2 0 FLANGE IDN | ||
| 291 | I8-94463 268-A | GROMMET; STRG SHAFT COVER | 4 | 1208- | NQR71 | 04 . 931 (A) H=15 IDN | ||
| 20 | I8-97405 159-0 | COVER; STRG SHAFT | 1 | 1208- | NQR71 | BLACK | ||
| 102 | I8-98006 150-1 | LOCK ASM; STRG | 1 | 1208- | NQR71 | |||
| 172 | I8-98055 256-1 | BRACKET; STRG | 1 | 1208- | NQR71 | (A) | ||

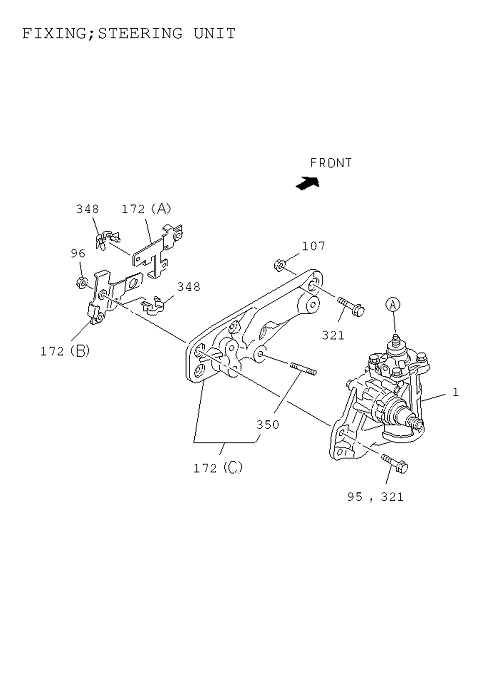

| 1 | I8-98110 219-5 | STEERING UNIT | 1 | 1208- | NQR71 | |||
| 95 | I8-98055 055-0 | BOLT; STRG UNIT | 4 | 1208- | NQR71 | EXC. FRONT WIDE TREAD<7GV> M12X4 7 FLANGE | ||
| 105 | I8-98045 346-0 | SCREW; IGN SW | 2 | 1208- | NQR71 | |||
| 231 | I8-98137 329-0 | SEAL; RUBBER,STRG COLUMN | 1 | 1208- | NQR71 | IDN | ||
| 296 | I8-97868 409-0 | CLIP; COVER | 1 | 1208- | NQR71 | BLACK |
