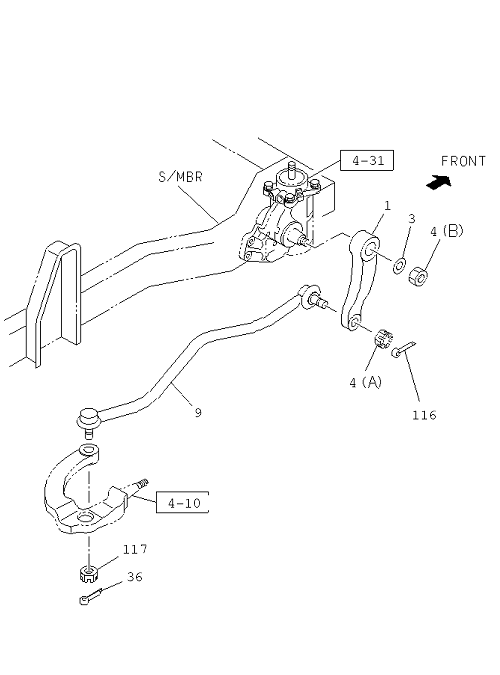

4-33 | STEERING LINKAGE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 117 | I8-97245 632-0 | NUT; DRAG LINK | 1 | 1208- | NQR71 | 06.174 M18 SLOTTED | ||
| 116 | I8-97349 766-0 | PIN; SPLIT,TRACK ROD,CENTER | 1 | 1208- | NQR71 | 06 .881 L=19 | ||
| 4 | I8-97245 632-0 | NUT; PITMAN ARM | 1 | 1208- | NQR71 | 06.174 (A) M18 SLOTTED | ||
| 3 | I0-91510 527-0 | WASHER; LK,PITMAN ARM | 1 | 1208- | NQR71 | ID=2 7.5 | ||
| 36 | I8-98098 024-0 | PIN; SPLIT,DRAG LINK | 1 | 1208- | NQR71 | L=19 | ||
| 4 | I8-97359 616-0 | NUT; PITMAN ARM | 1 | 1208- | NQR71 | (B) M27 | ||
| 1 | I8-97037 746-1 | ARM; PITMAN,STRG | 1 | 1208- | NQR71 | |||
| 9 | I8-98025 642-1 | LINK; DRAG | 1 | 1208- | NQR71 | EXC. FRONT WIDE TREAD<7GV> | ||
| 9 | I8-98141 074-1 | LINK; DRAG | 1 | 1208- | NQR71 | FRONT WIDE TREAD<7GV> |
