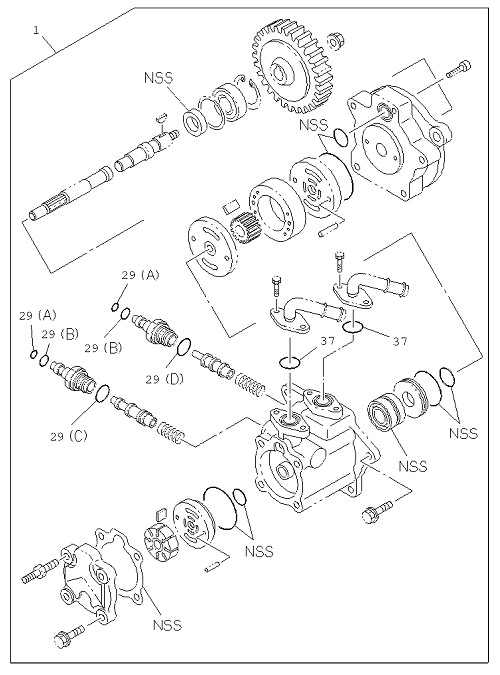

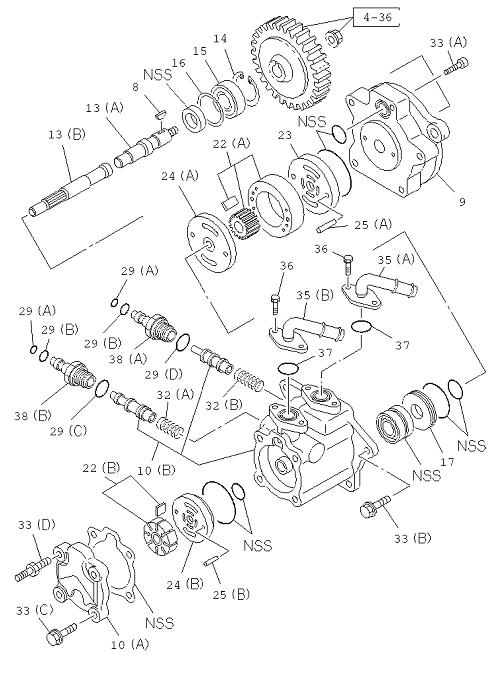

4-42 | POWER STEERING OIL PUMP
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 35 | I8-97258 420-1 | PIPE; HOSE CONN,OIL PUMP | 1 | NQR71 | (A) | |||
| 35 | I8-97182 101-0 | PIPE; HOSE CONN,OIL PUMP | 1 | NQR71 | (B) | |||
| 15 | I9-00090 211-0 | BEARING; BALL,OIL PUMP | 1 | NQR71 | ||||
| 10 | I8-97182 097-0 | BODY ASM; RR,OIL PUMP | 1 | NQR71 | (B) | |||
| 1 | I8-97182 111-0 | REPAIR KIT; OIL PUMP | 1 | NQR71 | ||||
| 37 | I1-19519 292-0 | GASKET; PIPE CONN,OIL PUMP | 2 | NQR71 | ||||
| 32 | I8-94475 376-0 | SPRING; OIL PUMP | 1 | NQR71 | 6612 | |||
| 29 | I9-48429 028-0 | GASKET; PLUG TO VLV | 1 | NQR71 | 6635 | |||
| 33 | I1-44519 119-0 | BOLT; COVER | 4 | NQR71 | (B) | |||
| 9 | I8-97182 095-0 | BODY ASM; FRT,OIL PUMP | 1 | NQR71 | ||||
| 25 | I1-19519 052-0 | PIN; HSG,P/S | 2 | NQR71 | (A) | |||
| 13 | I8-97182 096-0 | SHAFT KIT; RET | 1 | NQR71 | (A) | |||
| 17 | I8-97182 106-0 | RING; RET | 1 | NQR71 | ||||
| 22 | I8-97182 102-0 | CARTRIDGE ASM; OIL PUMP | 1 | NQR71 | (B) | |||
| 13 | I8-97182 105-0 | SHAFT KIT; RET | 1 | NQR71 | (B) | |||
| 38 | I8-97182 109-0 | CONNECTOR; OIL PUMP | 1 | NQR71 | (B) | |||
| 24 | I8-97182 093-0 | PLATE ASM; THRUST | 1 | NQR71 | (A) | |||
| 22 | I8-97182 092-0 | CARTRIDGE ASM; OIL PUMP | 1 | NQR71 | (A) | |||
| 23 | I8-97182 094-0 | PLATE; SIDE,OIL PUMP | 1 | NQR71 | ||||
| 29 | I9-88510 248-0 | GASKET; PLUG TO VLV | 1 | NQR71 | (D) | |||
| 33 | I1-48119 054-0 | BOLT; COVER | 2 | NQR71 | (C) | |||
| 24 | I8-97182 103-0 | PLATE ASM; THRUST | 1 | NQR71 | (B) | |||
| 25 | I8-97182 104-0 | PIN; HSG,P/S | 2 | NQR71 | (B) | |||
| 8 | I9-19519 089-0 | KEY; SHAFT,OIL PUMP | 1 | NQR71 | ||||
| 16 | I1-19519 258-0 | RING; RET,OIL PUMP | 1 | NQR71 | ||||
| 38 | I8-97182 098-0 | CONNECTOR; OIL PUMP | 1 | NQR71 | (A) | |||
| 10 | I8-97182 108-0 | BODY ASM; RR,OIL PUMP | 1 | NQR71 | (A) | |||
| 33 | I8-97182 110-0 | BOLT; COVER | 2 | NQR71 | (D) | |||
| 32 | I9-19529 013-0 | SPRING; OIL PUMP | 1 | NQR71 | 6612 | |||
| 29 | I9-09561 111-0 | GASKET; PLUG TO VLV | 2 | NQR71 | (A) | |||
| 36 | I8-94461 139-1 | BOLT; CONN,PIPE | 4 | NQR71 | ||||
| 33 | I8-97182 100-0 | BOLT; COVER | 1 | NQR71 | (A) | |||
| 14 | I1-19519 257-0 | RING; RET,OIL PUMP | 1 | NQR71 | ||||
| 29 | I8-94140 628-0 | GASKET; PLUG TO VLV | 2 | NQR71 | (B) |
