5-01 | FRAME AND OTHER PARTS
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 75 | I8-98000 584-0 | GUSSET; 5TH C/MBR | 2 | 1208- | NQR71 | RH-LOWER,LH-UPPER | ||

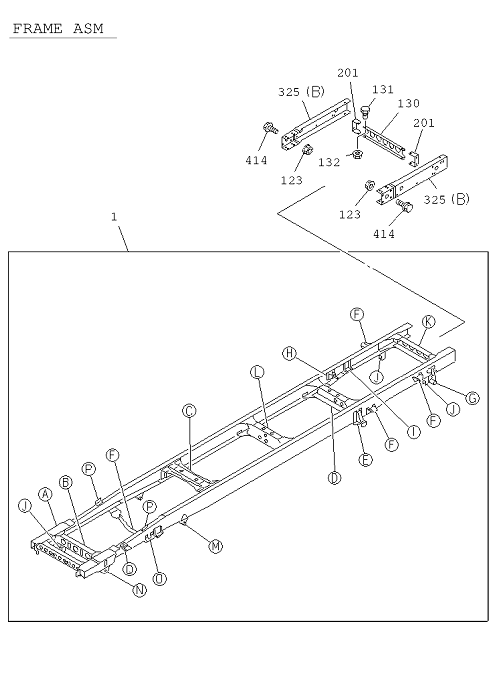

| 1 | I8-98173 440-0 | FRAME ASM | 1 | 1208- | NQR71 | IDN | ||
| 75 | I8-98000 583-0 | GUSSET; 5TH C/MBR | 2 | 1208- | NQR71 | RH-UPPER,LH-LOWER | ||
| 63 | I8-97115 668-0 | BRACKET; RAD MTG | 1 | 1208- | NQR71 | |||
| 414 | I0-28661 230-0 | BOLT | 12 | 1208- | NQR71 | |||
| 139 | I8-97107 384-0 | MEMBER; CROSS,6TH | 1 | 1208- | NQR71 | |||
| 296 | I0-28651 030-0 | BOLT; 3RD C/MBR | 16 | 1208- | NQR71 | 00.029 M10X3 0 FLANGE | ||

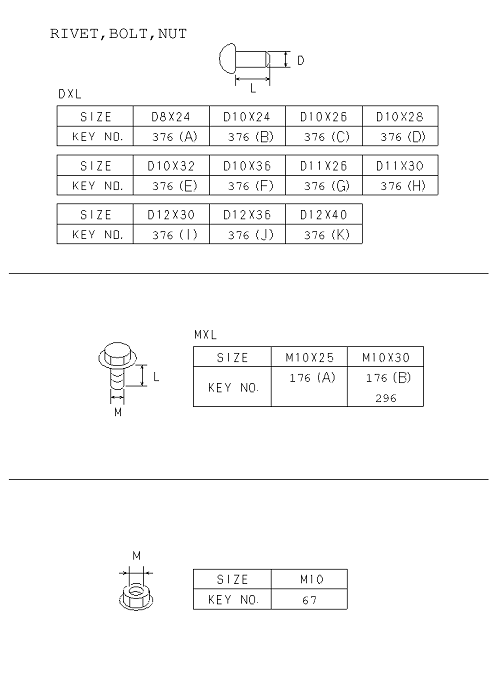

| 376 | I9-06750 824-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 376 | I9-06751 032-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 31 | I8-97184 699-1 | BUSHING; FRT SPR,RR | 4 | 1208- | NQR71 | 07.524 IDN | ||
| 123 | I8-97360 126-0 | NUT | 16 | 1208- | NQR71 | 07.395 M12 IDN | ||
| 376 | I9-06751 028-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 325 | I8-98073 345-0 | EXTENSION; FRAME | 1 | 1208- | NQR71 | |||
| 39 | I8-98014 125-0 | BRACKET; FRT SPR,RR | 2 | 1208- | NQR71 | |||
| 103 | I8-97079 659-1 | STOPPER; SUB SPR | 2 | 1208- | NQR71 | 7524 | ||
| 215 | I8-97184 699-1 | BUSHING; BRKT,RR SPRING | 4 | 1208- | NQR71 | IDN | ||
| 74 | I8-98000 583-0 | GUSSET; 4TH C/MBR | 2 | 1208- | NQR71 | RH-LOWER,LH-UPPER | ||
| 201 | I8-97128 805-0 | GUSSET; C/MBR | 2 | 1208- | NQR71 | |||
| 140 | I8-97080 884-1 | BRACKET; S/ABS,RR | 2 | 1208- | NQR71 | (A) | ||
| 34 | I8-98074 639-3 | MEMBER; CROSS,3RD | 1 | 1208- | NQR71 | |||
| 376 | I9-06751 126-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 2 | I8-97387 866-5 | MEMBER; CROSS,1ST | 1 | 1208- | NQR71 | |||
| 414 | I0-28661 240-0 | BOLT | 4 | 1208- | NQR71 | M12X40 FLANGE | ||
| 176 | I0-28651 025-0 | BOLT; C/MBR,ENG MTG | 4 | 1208- | NQR71 | 00.029 (A) M10X2 5 FLANGE IDN | ||
| 345 | I8-97175 993-3 | MEMBER; CROSS,5TH | 1 | 1208- | NQR71 | |||
| 176 | I0-28051 030-0 | BOLT; C/MBR,ENG MTG | 4 | 1208- | NQR71 | 03.890 (B) M10X3 0 FLANGE | ||
| 74 | I8-98000 584-0 | GUSSET; 4TH C/MBR | 2 | 1208- | NQR71 | RH-UPPER,LH-LOWER | ||
| 376 | I9-06751 230-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 198 | I8-98014 079-1 | GUSSET; 6TH C/MBR | 2 | 1208- | NQR71 | |||
| 140 | I8-97302 511-0 | BRACKET; S/ABS,RR | 2 | 1208- | NQR71 | 07.395 (B) | ||
| 24 | I8-98015 274-0 | BRACKET; FRT SPR,FRT | 2 | 1208- | NQR71 | |||
| 101 | I8-98243 605-0 | BRACKET; RR SPR,FRT | 2 | 1208- | NQR71 | |||
| 20 | I8-98014 074-7 | MEMBER; CROSS,2ND | 1 | 1208- | NQR71 | |||
| 130 | I8-97205 394-0 | MEMBER; CROSS,END | 1 | 1208- | NQR71 | |||
| 196 | I8-98033 523-0 | BRACKET; STAB TO FRAME | 4 | 1208- | NQR71 | |||
| 376 | I9-06751 240-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 376 | I9-06751 236-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 105 | I8-98032 489-0 | BRACKET; RR SPR,RR | 1 | 1208- | NQR71 | |||
| 132 | I0-91180 110-0 | NUT; END C/MBR | 8 | 1208- | NQR71 | 03 . 162 M10 FLANGE | ||
| 376 | I9-06751 024-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 376 | I9-06751 130-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 217 | I8-97202 417-0 | BRACKET; HELPER RUBBER,RR SPRING | 2 | 1208- | NQR71 | |||
| 325 | I8-97222 891-1 | EXTENSION; FRAME | 1 | 1208- | NQR71 | (B) | ||
| 325 | I8-97222 892-1 | EXTENSION; FRAME | 1 | 1208- | NQR71 | (B) | ||
| 67 | I7-05110 010-A | NUT; C/MBR | 18 | 1208- | NQR71 | 04.085 M10 FLANGE | ||
| 42 | I8-98032 389-0 | MEMBER; CROSS,ENG MTG | 1 | 1208- | NQR71 | |||
| 344 | I8-97175 993-3 | MEMBER; CROSS,4TH | 1 | 1208- | NQR71 | |||
| 165 | I8-98000 886-0 | BRACKET; RAD STAY | 1 | 1208- | NQR71 | |||
| 105 | I8-98032 488-0 | BRACKET; RR SPR,RR | 1 | 1208- | NQR71 | |||
| 131 | I0-28661 025-0 | BOLT; END C/MBR | 8 | 1208- | NQR71 | 07.833 M10X2 5 FLANGE IDN | ||
| 376 | I9-06751 036-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 51 | I8-98034 961-0 | BRACKET; ENG SUPPORT,OUTER | 2 | 1208- | NQR71 | |||
| 376 | I9-06751 026-0 | RIVET; FRAME | AR | 1208- | NQR71 | |||
| 325 | I8-98073 344-1 | EXTENSION; FRAME | 1 | 1208- | NQR71 |
