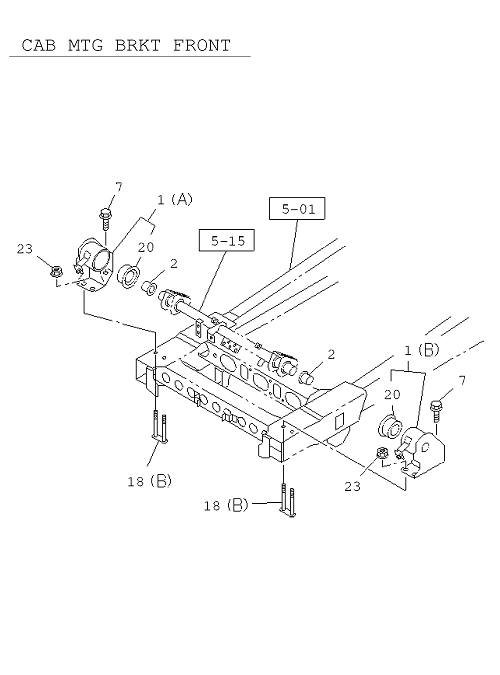

5-10 | CAB MOUNTING; FRAME SIDE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98074 800-2 | BRACKET; CAB MTG | 1 | 1208- | NQR71 | 16.545 (B) IDN | ||
| 23 | I8-98039 989-0 | NUT; MTG BRKT | 4 | 1208- | NQR71 | M14 | ||
| 151 | I8-97359 040-1 | WASHER; CAB MTG,RR UPR | 2 | 1208- | NQR71 | ID=16.5 OD=58 IDN | ||
| 300 | I0-28651 020-0 | BOLT; MTG RUBBER | 8 | 1208- | NQR71 | 02.343 M10X2 0 FLANGE IDN | ||
| 149 | I8-98038 868-0 | RUBBER; MTG,CAB,UPR RR | 2 | 1208- | NQR71 | IDN | ||
| 191 | I0-28651 240-0 | BOLT; BRKT FIX | 8 | 1208- | NQR71 | M12X40 FLANGE | ||
| 199 | I8-98099 144-0 | BRACKET; CAB RR MTG | 1 | 1208- | NQR71 | (A) | ||
| 7 | I0-28661 440-0 | BOLT; BRKT,CAB TILT | 2 | 1208- | NQR71 | M14X40 FLANGE IDN | ||
| 2 | I8-97061 514-0 | BUSHING; TORSION BAR | 2 | 1208- | NQR71 | IDN | ||
| 192 | I0-91180 112-0 | NUT; BRKT FIX | 8 | 1208- | NQR71 | 02 .042 M12 FLANGE IDN | ||
| 20 | I8-98007 037-1 | RUBBER; MTG,CAB BRKT | 1 | 1208- | NQR71 | |||
| 18 | I8-97034 139-2 | PLATE; MTG BRKT FIX | 2 | 1208- | NQR71 | (A) | ||
| 1 | I8-98074 798-2 | BRACKET; CAB MTG | 1 | 1208- | NQR71 | 16.545 (A) IDN | ||
| 20 | I8-98007 037-1 | RUBBER; MTG,CAB BRKT | 1 | 1208- | NQR71 | |||
| 199 | I8-98024 778-0 | BRACKET; CAB RR MTG | 1 | 1208- | NQR71 | (B) | ||
| 156 | I0-91180 114-0 | NUT; CAB MTG RR | 2 | 1208- | NQR71 | M14 FLANGE IDN | ||
| 18 | I8-98029 285-1 | PLATE; MTG BRKT FIX | 2 | 1208- | NQR71 | (B) |
