5-15 | CAB MOUNTING; CAB SIDE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 311 | I8-98031 126-0 | SEAL; CAB LOCK | 1 | 1208- | NQR71 | 16.545 OD=32 BLACK | ||
| 3 | I8-97359 033-0 | BOLT; LEVER | 4 | 1208- | NQR71 | M12X3 7 W/LK&PL WASHER | ||

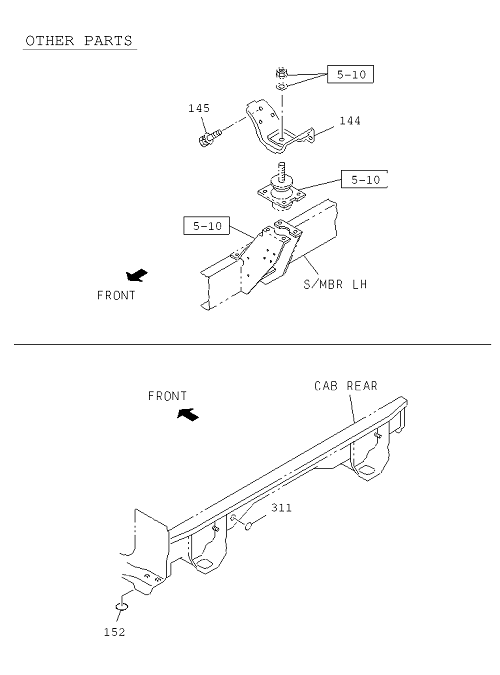

| 145 | I8-98051 939-0 | BOLT; CAB RR MTG BRKT | 12 | 1208- | NQR71 | 06.514 M8X24.5 W/LK&PL WASHER | ||
| 144 | I8-97853 066-5 | BRACKET ASM; CAB RR MTG | 2 | 1208- | NQR71 | IDN | ||

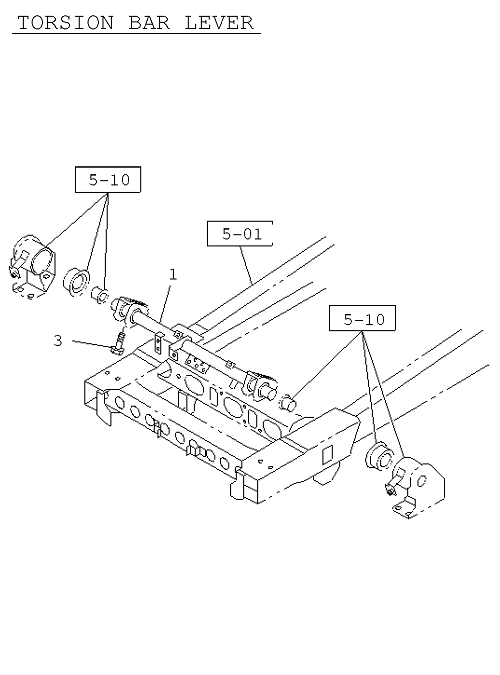

| 1 | I8-98077 693-0 | LEVER; TORSION BAR | 1 | 1208- | NQR71 | IDN | ||
| 152 | I1-76798 029-0 | GROMMET; DUMMY HOLE,CAB TILT LOC | 2 | 1208- | NQR71 | 16. 165 OD=25 BLACK |
