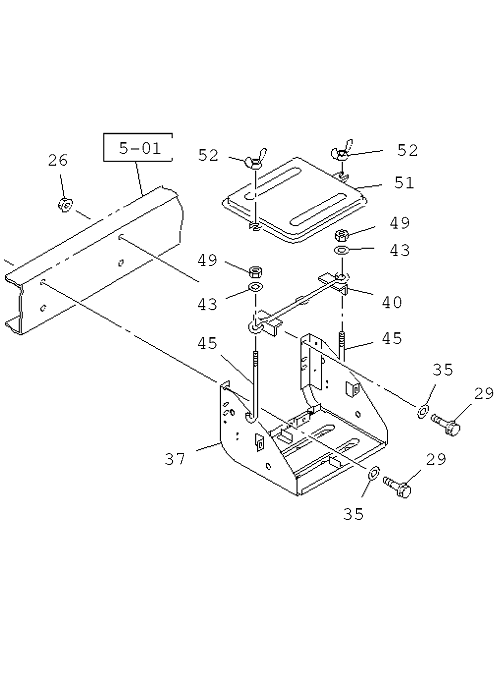

| 37 |
I8-97695 343-A |
|
BRACKET; BATTERY |
1 |
1208- |
|
NQR71 |
BATTERY 80D26L<TM1> IDN |
| 40 |
I5-53615 004-A |
|
CLAMP; BATTERY |
1 |
1208- |
|
NQR71 |
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> IDN |
| 29 |
I0-28661 035-0 |
|
BOLT; BRKT TO FRAME |
4 |
1208- |
|
NQR71 |
03.023 M10X3 5 FLANGE |
| 52 |
I0-91118 408-0 |
|
NUT; WING,COVER FIX |
2 |
1208- |
|
NQR71 |
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> M8 WING NUT IDN |
| 49 |
I0-91180 108-0 |
|
NUT; ROD,BATTERY |
2 |
1208- |
|
NQR71 |
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 01. 062 M8 FLANGE |
| 51 |
I8-97120 747-A |
|
COVER; BATTERY |
1 |
1208- |
|
NQR71 |
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> IDN |
| 35 |
I0-91610 610-0 |
|
WASHER; PL,BATTERY CARRIER |
4 |
1208- |
|
NQR71 |
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 |
| 43 |
I0-91614 708-0 |
|
WASHER; PL,CLAMP |
2 |
1208- |
|
NQR71 |
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 |
| 26 |
I7-05110 010-A |
|
NUT; BRKT |
4 |
1208- |
|
NQR71 |
04.085 M10 FLANGE |
| 45 |
I9-53616 615-A |
|
ROD; TENSION,BATTERY |
2 |
1208- |
|
NQR71 |
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> IDN |
| 37 |
I8-97384 068-2 |
|
BRACKET; BATTERY |
1 |
1208- |
|
NQR71 |
BATTERY 75D23L<8LZ> IDN |
