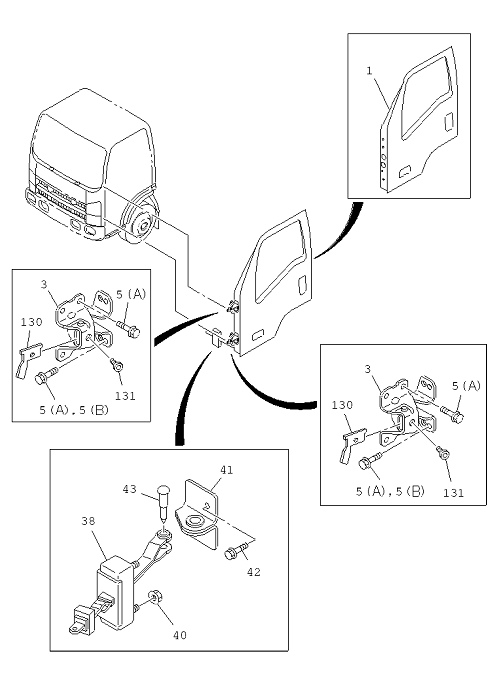

6-30 | FRONT DOOR AND HINGE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 40 | I8-97329 625-0 | NUT; CHECKER | 4 | 1208- | NQR71 | 01 .840 M8 W/DISHED WASHER | ||
| 5 | I8-98029 440-0 | BOLT; HINGE | 8 | 1208- | NQR71 | EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X2 3 FLANGE | ||
| 42 | I8-98032 159-2 | BOLT; BRKT | 4 | 1208- | NQR71 | M6X2 0 W/PL WASHER IDN | ||
| 3 | I8-98191 302-0 | HINGE; DOOR FRT | 4 | 1208- | NQR71 | IDN | ||
| 1 | I8-98171 234-0 | DOOR ASM; FRT,WO/TRIM | 1 | 1208- | NQR71 | |||
| 5 | I8-98029 440-0 | BOLT; HINGE | 8 | 1208- | NQR71 | (B) M8X2 3 FLANGE | ||
| 1 | I8-98171 226-0 | DOOR ASM; FRT,WO/TRIM | 1 | 1208- | NQR71 | |||
| 38 | I8-98330 950-0 | CHECKER ASM; DOOR | 2 | 1208- | NQR71 | IDN | ||
| 5 | I8-98049 756-0 | BOLT; HINGE | 12 | 1208- | NQR71 | (A) M8X2 0 FLANGE | ||
| 5 | I8-98049 756-0 | BOLT; HINGE | 8 | 1208- | NQR71 | KD PREPARATORY PACK VAR.4<7TV> (A) M8X2 0 FLANGE | ||
| 43 | I8-98037 152-2 | PIN | 2 | 1208- | NQR71 | IDN | ||
| 130 | I8-98038 299-1 | STOPPER; HINGE | 4 | 1208- | NQR71 | IDN | ||
| 41 | I8-98029 290-4 | BRACKET; CHECKER | 2 | 1208- | NQR71 | IDN | ||
| 131 | I8-98039 593-1 | BOLT; DOOR STOPPER | 4 | 1208- | NQR71 | M10X11 IDN |
