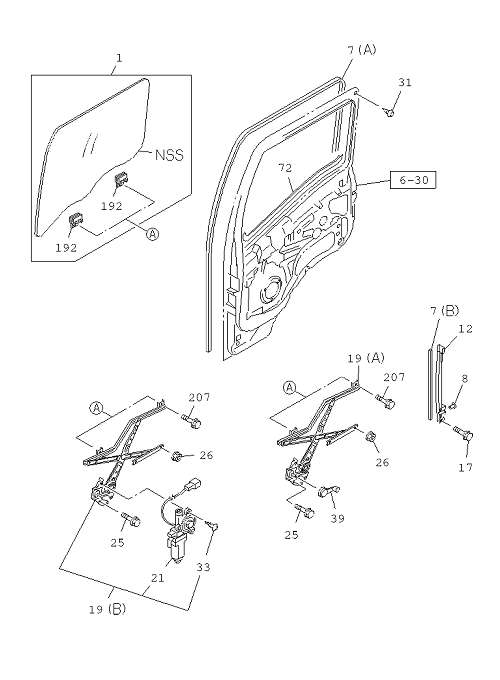

6-31 | FRONT DOOR GLASS AND REGULATOR
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 192 | I8-98211 762-0 | HOLDER; DOOR GLASS | 4 | 1208- | NQR71 | IDN | ||
| 19 | I8-98050 288-2 | REGULATOR; WINDOW,FRT DOOR | 1 | 1208- | R | NQR71 | POWER WINDOW FRT DOOR<A3 2> (B) | |
| 21 | I8-98058 429-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 1208- | R | NQR71 | POWER WINDOW FRT DOOR<A3 2> | |
| 31 | I8-94358 581-0 | STOPPER; RUBBER,DOOR INNER | 4 | 1208- | NQR71 | 16400 | ||
| 12 | I8-98188 419-0 | CHANNEL; GLASS RUN,FRT | 1 | 1208- | L | NQR71 | IDN | |
| 21 | I8-98058 430-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 1208- | L | NQR71 | POWER WINDOW FRT DOOR<A3 2> | |
| 7 | I8-98031 742-2 | GLASS RUN; FRT DOOR | 2 | 1208- | R | NQR71 | (B) IDN | |
| 207 | I0-28050 610-0 | SCREW; DOOR GLASS | 4 | 1208- | NQR71 | 03.671 M6X10 FLANGE IDN | ||
| 227 | I8-97405 321-0 | RUBBER; SHUTTER | 1 | 1208- | NQR71 | GRAY IDN | ||
| 12 | I8-98188 418-0 | CHANNEL; GLASS RUN,FRT | 1 | 1208- | R | NQR71 | IDN | |
| 39 | I8-97405 313-3 | HANDLE; WINDOW REG,FRT DOOR | 2 | 1208- | NQR71 | EXC. POWER WINDOW FRT DOOR<A32> GRAY | ||
| 7 | I8-98029 196-3 | GLASS RUN; FRT DOOR | 1 | 1208- | L | NQR71 | (A) IDN | |
| 222 | I8-97405 318-0 | CAP; GUARD BAR | 1 | 1208- | R | NQR71 | GRAY IDN | |
| 8 | I8-98048 796-0 | CLIP; GLASS GUIDE | 2 | 1208- | NQR71 | IDN | ||
| 17 | I0-28050 610-0 | SCREW; RR CHANNEL | 4 | 1208- | NQR71 | 03.671 M6X10 FLANGE IDN | ||
| 221 | I8-97405 316-2 | BAR ASM; DOOR GLASS GUARD | 1 | 1208- | R | NQR71 | DARK GRAY IDN | |
| 33 | I8-98058 431-0 | SCREW; REG MOTOR | 6 | 1208- | NQR71 | POWER WINDOW FRT DOOR<A3 2> | ||
| 72 | I8-98029 192-1 | SEAL; WAIST,FRT DOOR | 1 | 1208- | R | NQR71 | IDN | |
| 221 | I8-97405 317-2 | BAR ASM; DOOR GLASS GUARD | 1 | 1208- | L | NQR71 | DARK GRAY IDN | |
| 1 | I8-97696 474-A | GLASS; FRT DOOR | 1 | 1208- | R | NQR71 | IDN | |
| 222 | I8-97405 319-0 | CAP; GUARD BAR | 1 | 1208- | L | NQR71 | GRAY IDN | |
| 72 | I8-98029 193-1 | SEAL; WAIST,FRT DOOR | 1 | 1208- | L | NQR71 | IDN | |
| 7 | I8-98029 195-3 | GLASS RUN; FRT DOOR | 1 | 1208- | R | NQR71 | (A) IDN | |
| 19 | I8-98029 237-3 | REGULATOR; WINDOW,FRT DOOR | 1 | 1208- | L | NQR71 | POWER WINDOW FRT DOOR<A3 2> (B) | |
| 1 | I8-97696 475-A | GLASS; FRT DOOR | 1 | 1208- | L | NQR71 | IDN | |
| 19 | I8-98029 233-3 | REGULATOR; WINDOW,FRT DOOR | 1 | 1208- | R | NQR71 | EXC. POWER WINDOW FRT DOOR<A32> (A) IDN | |
| 26 | I0-91180 106-0 | NUT; FLANGE,WINDOW REG | 4 | 1208- | NQR71 | 01.062 M6 FLANGE | ||
| 223 | I8-98177 721-0 | SCREW; GUARD BAR | 8 | 1208- | NQR71 | M6X2 5 HEXALOBULAR SOCKET IDN | ||
| 19 | I8-98029 234-3 | REGULATOR; WINDOW,FRT DOOR | 1 | 1208- | L | NQR71 | EXC. POWER WINDOW FRT DOOR<A32> (A) IDN | |
| 25 | I0-28050 610-0 | BOLT; WINDOW REG | 8 | 1208- | NQR71 | 03.671 M6X10 FLANGE IDN |
