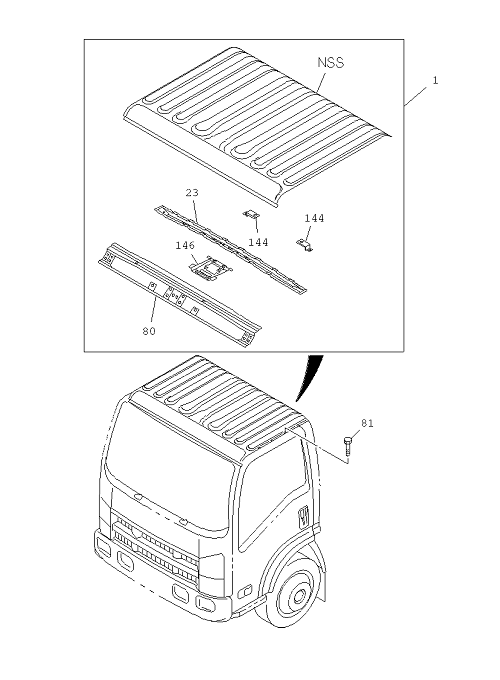

6-60 | ROOF PANEL
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I8-98013 502-0 | REINFORCEMENT; ROOF PANEL,FRT | 1 | 1208- | NQR71 | IDN | ||
| 146 | I8-98075 827-0 | 8-98013-931-1 REINFORCEMENT; ROOM LAMP | 1 | 1208- | NQR71 | IDN | ||
| 146 | I8-98013 LAMP | 8-98013-931-1 REINFORCEMENT; ROOM LAMP | 2 | 1208- | NQR71 | IDN | ||
| 1 | I8-98024 941-6 | PANEL; ROOF | 1 | 1208- | NQR71 | |||
| 81 | I8-98141 874-0 | BOLT; ROOF | 8 | 1208- | NQR71 | M8X15.5 HEX SOCKET IDN | ||
| 80 | I8-97584 190-4 | PANEL; HEADER,ROOF | 1 | 1208- | NQR71 | IDN |
