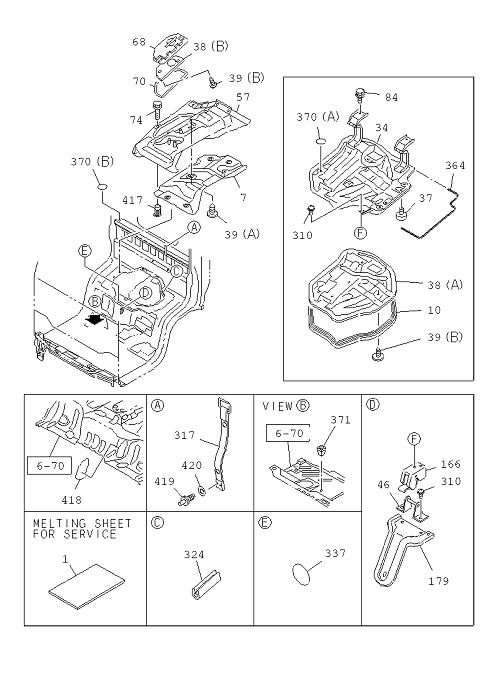

6-76 | FLOOR EQUIPMENT AND SEALING
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 337 | I8-98031 126-0 | SEAL; CLIP HOLE | 4 | 1208- | NQR71 | OD=32 BLACK | ||
| 317 | I8-97585 575-0 | BAND; ENGINE COVER | 1 | 1208- | NQR71 | IDN | ||
| 418 | I8-98090 192-2 | SEAL; PROTECTOR | 1 | 1208- | NQR71 | IDN | ||
| 1 | I8-94262 093-0 | SHEET; MELTING,FLOOR | AR | 1208- | NQR71 | NON ASBESTOS 1000X600 T=1.5; PARTS ONLY | ||
| 364 | I8-97892 744-0 | FINISHER; ENG COVER SIDE | 1 | 1208- | NQR71 | L=1100 IDN | ||
| 324 | I8-97892 742-0 | FINISHER; FLOOR PANEL | 3 | 1208- | NQR71 | L=140 IDN | ||
| 417 | I8-98013 752-0 | NUT; POP | 1 | 1208- | NQR71 | 09.786 M6 POP NUT IDN | ||
| 310 | I0-28650 616-0 | SCREW; ENG COVER HOOK | 4 | 1208- | NQR71 | 02.343 M6X16 FLANGE | ||
| 39 | I8-97808 623-0 | CLIP; INSULATOR,COVER | 5 | 1208- | NQR71 | 08.021 (A) ID=6.2 L=11.4 | ||
| 68 | I8-98040 141-0 | COVER ASM; SUB,ENG COVER | 1 | 1208- | NQR71 | IDN | ||
| 34 | I8-97587 395-3 | COVER ASM; ENG,CAB FLOOR | 1 | 1208- | NQR71 | IDN | ||
| 337 | I8-98031 126-0 | SEAL; CLIP HOLE | 8 | 1208- | NQR71 | OD=32 BLACK | ||
| 179 | I8-98048 301-1 | REINFORCEMENT; COVER | 1 | 1208- | NQR71 | IDN | ||
| 37 | I5-74917 001-A | RUBBER; BUFFER,ENG COVER | 2 | 1208- | NQR71 | 16.155 OD=30 T=10 IDN | ||
| 70 | I8-97853 050-A | SEAL; ENG SUB COVER,CAB FLOOR | 1 | 1208- | NQR71 | IDN | ||
| 84 | I0-28650 820-0 | BOLT; ENG COVER HINGE | 4 | 1208- | NQR71 | 01.531 M8X2 0 FLANGE IDN | ||
| 7 | I8-97586 175-1 | INSULATOR; SUPPORT COVER | 1 | 1208- | NQR71 | IDN | ||
| 46 | I8-98040 145-0 | HOOK ASM; ENG COVER | 2 | 1208- | NQR71 | IDN | ||
| 10 | I8-98029 377-0 | SEAL; ENG COVER | 1 | 1208- | NQR71 | IDN | ||
| 38 | I8-97586 169-2 | INSULATOR; ENG COVER | 1 | 1208- | NQR71 | (B) IDN | ||
| 166 | I8-98040 152-0 | LOCK; ENG COVER | 2 | 1208- | NQR71 | IDN | ||
| 419 | I8-98065 262-0 | RIVET; ENG COVER | 1 | 1208- | NQR71 | IDN | ||
| 418 | I8-98090 191-2 | SEAL; PROTECTOR | 1 | 1208- | NQR71 | IDN | ||
| 370 | I1-76798 029-0 | SEAL; LOCATION HOLE | 3 | 1208- | NQR71 | 16. 165 (B) OD=20 T=0.05 BLACK | ||
| 38 | I8-97586 182-2 | INSULATOR; ENG COVER | 1 | 1208- | NQR71 | (A) IDN | ||
| 57 | I8-97587 400-3 | COVER ASM; SUPPORT,CAB FLOOR | 1 | 1208- | NQR71 | IDN | ||
| 39 | I8-94279 997-0 | CLIP; INSULATOR,COVER | 7 | 1208- | NQR71 | (B) OD=3 0 IDN | ||
| 420 | I0-91614 705-0 | WASHER; ENG COVER | 1 | 1208- | NQR71 | 02 . 335 ID=5.3 OD=16 IDN | ||
| 370 | I1-76798 029-0 | SEAL; LOCATION HOLE | 1 | 1208- | NQR71 | 16. 165 (A) OD=25 BLACK | ||
| 371 | I8-94279 714-0 | GROMMET; LOCATION HOLE | 2 | 1208- | NQR71 | 16.547 14.5X14.5 BLACK IDN | ||
| 310 | I0-38050 616-0 | SCREW; ENG COVER HOOK | 5 | 1208- | NQR71 | 16.570 M6X16 IDN | ||
| 337 | I8-98031 126-0 | SEAL; CLIP HOLE | 1 | 1208- | NQR71 | OD=32 BLACK | ||
| 74 | I0-28650 820-0 | BOLT; SUPPORT COVER TO FLOOR | 10 | 1208- | NQR71 | 01.531 M8X2 0 FLANGE IDN |
