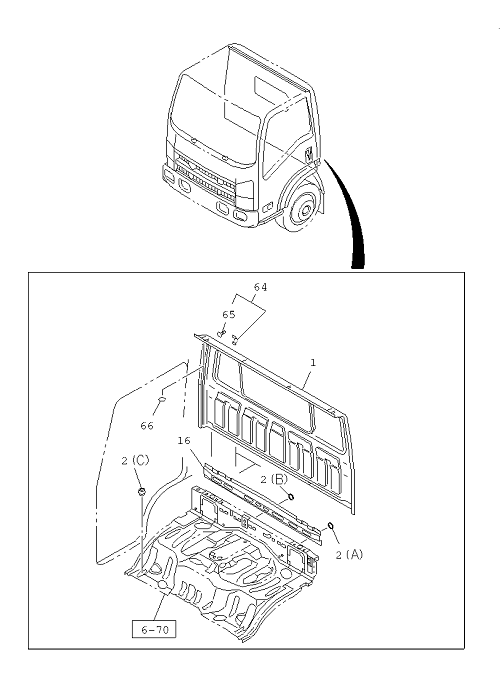

| 65 |
I8-94389 701-0 |
|
STUD; BACK PANEL |
1 |
1208- |
|
NQR71 |
|
| 2 |
I8-98031 126-0 |
|
GROMMET; LOCATION HOLE,BACK PANE |
10 |
1208- |
|
NQR71 |
16.545 (B) OD=32 BLACK |
| 16 |
I8-97584 608-2 |
|
REINFORCEMENT; BACK OUTER PNL |
1 |
1208- |
|
NQR71 |
IDN |
| 2 |
I1-76798 029-0 |
|
GROMMET; LOCATION HOLE,BACK PANE |
2 |
1208- |
|
NQR71 |
16.165 (A) OD=25 BLACK |
| 66 |
I1-76798 029-0 |
|
SEAL; BACK PANEL |
5 |
1208- |
|
NQR71 |
BODY COLOR MARINE BLUE(890),BODY COLOR QUI CK SILVER MET(998),BODY COLOR TRANS BLUE(9 99) 16.165 OD=20 T=0.05 BLACK |
| 2 |
I8-97898 423-0 |
|
GROMMET; LOCATION HOLE,BACK PANE |
4 |
1208- |
|
NQR71 |
16.547 (C) OD=12.1 IDN |
| 1 |
I8-97584 304-3 |
|
PANEL; BACK OUTER |
1 |
1208- |
|
NQR71 |
IDN |
| 64 |
I8-97584 611-1 |
|
BRACKET; AIR INTAKE DUCT |
1 |
1208- |
|
NQR71 |
16.570 IDN |
| 2 |
I8-98031 126-0 |
|
GROMMET; LOCATION HOLE,BACK PANE |
2 |
1208- |
|
NQR71 |
16.545 (B) OD=32 BLACK |
| 66 |
I8-98059 421-0 |
|
SEAL; BACK PANEL |
5 |
1208- |
|
NQR71 |
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE IDN |
