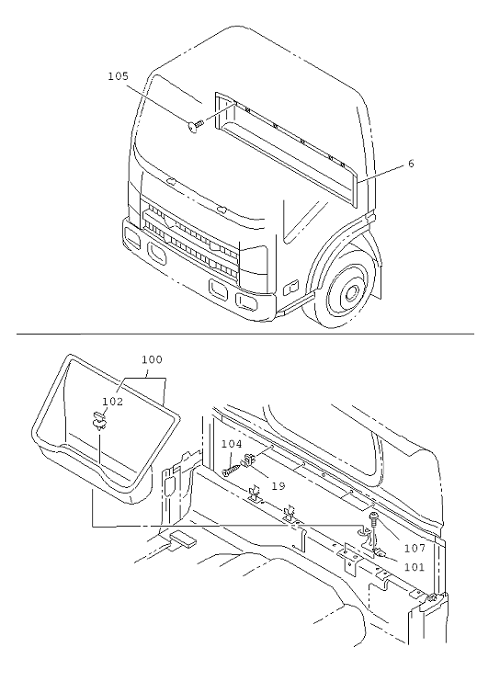

6-84 | BACK TRIM
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 100 | I8-97405 174-1 | TRAY; BACK PANEL | 1 | 1208- | NQR71 | GRAY IDN | ||
| 104 | I0-70540 420-0 | SCREW; BACK TRIM | 4 | 1208- | NQR71 | M4X2 0 TAPPING OVAL-HEAD | ||
| 107 | I0-38050 616-0 | SCREW; BRKT | 1 | 1208- | NQR71 | 16.570 M6X16 IDN | ||
| 101 | I8-98029 438-1 | BRACKET; TRAY,BACK PANEL | 1 | 1208- | NQR71 | IDN | ||
| 19 | I8-97406 042-0 | HOOK; RET | 4 | 1208- | NQR71 | GRAY | ||
| 102 | I8-97406 996-0 | CLIP; TRAY,BACK PANEL | 1 | 1208- | NQR71 | GRAY IDN | ||
| 105 | I8-97405 295-0 | CLIP; BACK TRIM | 2 | 1208- | NQR71 | INTERIOR TRIM-SEMI TRIMMING<SEV> GRAY | ||
| 6 | I8-97405 290-3 | WEATHERSTRIP; BACKLIGHT | 1 | 1208- | NQR71 | INTERIOR TRIM-SEMI TRIMMING<SEV> GRAY |
