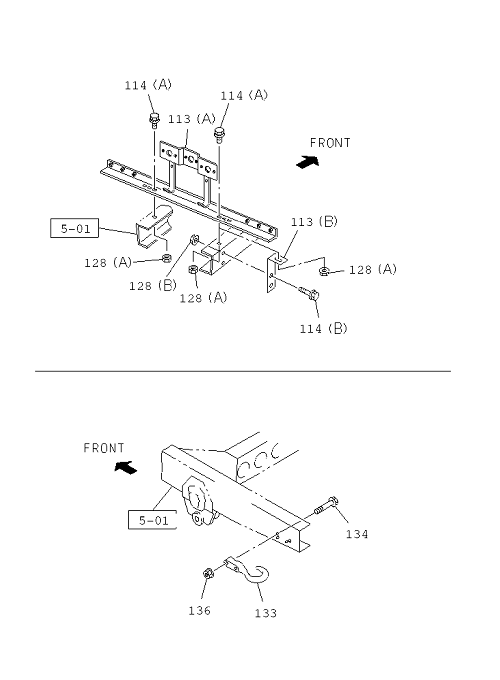

6-90 | REAR BUMPER
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 114 | I0-28661 025-0 | BOLT; BRKT,LICENSE PLATE | 4 | 1208- | NQR71 | 07.833 (B) M10X25 FLANGE IDN | ||
| 128 | I0-91180 110-0 | NUT; CROSS PLATE | 4 | 1208- | NQR71 | 03.162 (B) M10 FLANGE | ||
| 133 | I8-94249 270-A | HOOK | 1 | 1208- | NQR71 | 07. 068 IDN | ||
| 113 | I8-98029 390-3 | BRACKET; LICENSE PLATE | 1 | 1208- | NQR71 | (A) IDN | ||
| 134 | I0-10856 450-0 | BOLT; HOOK | 2 | 1208- | NQR71 | 07. 039 M14X50 | ||
| 113 | I8-98091 681-0 | BRACKET; LICENSE PLATE | 2 | 1208- | NQR71 | (B) IDN | ||
| 128 | I0-91180 108-0 | NUT; CROSS PLATE | 2 | 1208- | NQR71 | 01.062 (A) M8 FLANGE | ||
| 136 | I0-91180 214-0 | NUT; HOOK | 2 | 1208- | NQR71 | 00 . 429 M14 FLANGE | ||
| 114 | I0-28650 840-0 | BOLT; BRKT,LICENSE PLATE | 2 | 1208- | NQR71 | 00.685 (A) M8X4 0 FLANGE |
