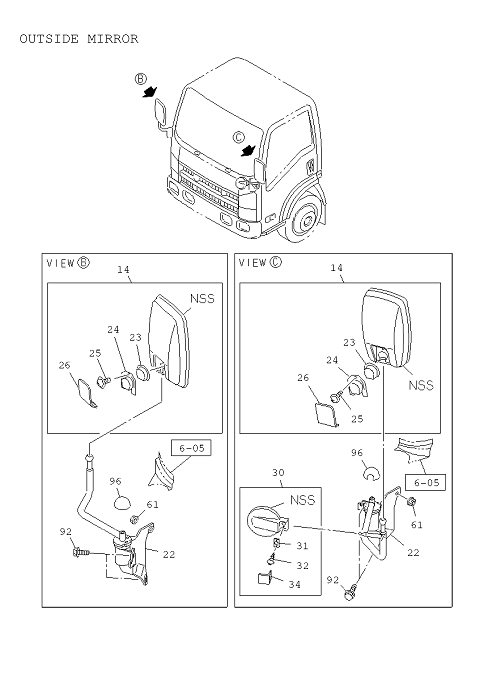

7-20 | MIRROR AND MIRROR STAY
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 61 | I0-91180 108-0 | NUT; STAY,OUTSIDE MIRROR | 2 | 1208- | NQR71 | |||
| 25 | I8-94279 365-0 | SCREW; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||
| 30 | I8-94262 625-2 | MIRROR; UNDER | 1 | 1208- | NQR71 | UNDER MIRROR<RR9> | ||
| 14 | I8-94262 542-3 | MIRROR ASM; OUTSIDE | 1 | 1208- | NQR71 | |||
| 31 | I8-94262 631-0 | PLATE; MIRROR | 1 | 1208- | NQR71 | UNDER MIRROR<RR9> | ||
| 14 | I6-94262 542-0 | MIRROR ASM; OUTSIDE | 1 | 1208- | NQR71 | (IADG) | ||
| 24 | I8-94262 546-1 | HOLDER; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||
| 23 | I8-94262 545-0 | WASHER; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||
| 24 | I8-94262 546-1 | HOLDER; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||
| 32 | I8-94279 372-0 | SCREW; UNDER MIRROR | 2 | 1208- | NQR71 | UNDER MIRROR<RR9> | ||
| 25 | I8-94279 365-0 | SCREW; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||
| 34 | I8-94262 629-0 | CAP; MIRROR | 1 | 1208- | NQR71 | UNDER MIRROR<RR9> | ||
| 96 | I8-98027 552-2 | CAP; MIRROR STAY | 2 | 1208- | NQR71 | IDN | ||
| 2 | I8-98033 674-0 | SCREW; MIRROR TO BODY | 2 | 1208- | NQR71 | |||
| 26 | I8-94262 547-2 | COVER; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||
| 22 | I8-98070 509-A | STAY; OUTSIDE MIRROR | 1 | 1208- | NQR71 | EXC. UNDER MIRROR<RR9> | ||
| 22 | I8-98038 224-A | STAY; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||
| 22 | I8-98027 519-0 | STAY; OUTSIDE MIRROR | 1 | 1208- | NQR71 | UNDER MIRROR<RR9> | ||
| 23 | I8-94262 545-0 | WASHER; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||
| 14 | I8-94262 542-3 | MIRROR ASM; OUTSIDE | 1 | 1208- | NQR71 | |||
| 92 | I0-28650 825-0 | BOLT; STAY BRKT,MIRROR | 4 | 1208- | NQR71 | 06.216 M8X2 5 FLANGE IDN | ||
| 26 | I8-94262 547-2 | COVER; OUTSIDE MIRROR | 1 | 1208- | NQR71 | |||

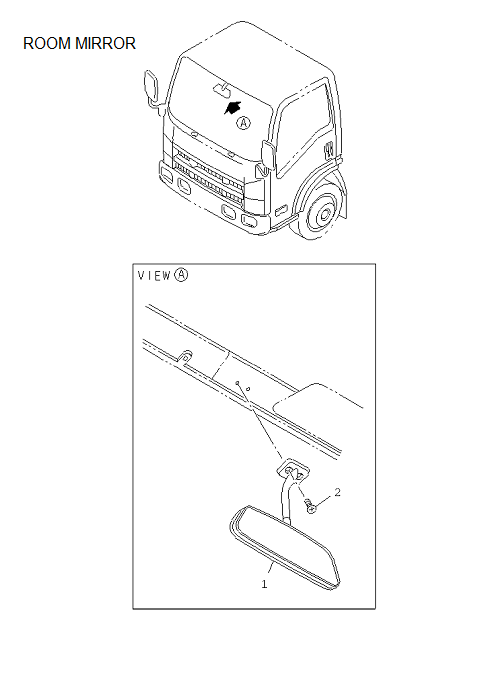

| 1 | I8-98097 534-1 | MIRROR; ROOM | 1 | 1208- | NQR71 |
