| 14 |
I8-98177 744-0 |
|
SCREW; INST PNL |
4 |
1208- |
|
NQR71 |
16.090 M5X16 HEXALOBULAR SOCKET |
| 715 |
I8-98034 929-0 |
|
SUPPORT; TRAY,HINGE |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN |
| 662 |
I8-97405 258-2 |
|
COVER; LWR,INST PANEL |
1 |
1208- |
|
NQR71 |
GRAY IDN |
| 709 |
I0-71040 516-0 |
|
SCREW; TRAY INST |
4 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING IDN |
| 66 |
I8-98199 358-0 |
|
REINFORCEMENT; INST PANEL |
1 |
1208- |
|
NQR71 |
(A) IDN |

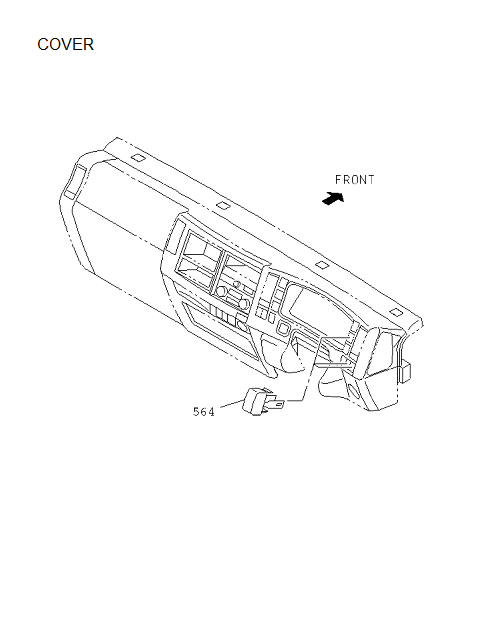

| 564 |
I8-98025 954-1 |
|
COVER; SW |
3 |
1208- |
|
NQR71 |
|
| 603 |
I8-98004 025-0 |
|
CLIP; COVER |
1 |
1208- |
|
NQR71 |
|
| 701 |
I8-97415 542-5 |
|
TRAY; INST |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY IDN |
| 336 |
I8-97414 961-4 |
|
COVER; INST PANEL SIDE |
1 |
1208- |
|
NQR71 |
(B) GRAY IDN |
| 4 |
I8-97407 898-1 |
|
COVER; INST PNL |
1 |
1208- |
|
NQR71 |
EXC. CUP HOLDER<7KZ> GRAY IDN |
| 69 |
I8-98028 562-2 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
1208- |
|
NQR71 |
(B) IDN |
| 125 |
I8-97408 063-0 |
|
CLIP; INST PANEL |
2 |
1208- |
|
NQR71 |
(A) GRAY |
| 712 |
I8-98031 846-0 |
|
LOCK; TRAY INST LID |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN |
| 704 |
I8-97585 616-2 |
|
BRACKET; CENTER POCKET |
2 |
1208- |
|
NQR71 |
(B) IDN |
| 718 |
I8-98097 696-0 |
|
SEAL; COVER |
1 |
1208- |
|
NQR71 |
(A) 30X15 IDN |
| 54 |
I8-97408 864-4 |
|
POCKET; CENTER CLUSTER |
1 |
1208- |
|
NQR71 |
(B) H=58.4 BLACK IDN |
| 524 |
I8-98054 414-0 |
|
STAND ASM; CUP,INST |
1 |
1208- |
|
NQR71 |
CUP HOLDER<7KZ> |
| 718 |
I8-98200 040-0 |
|
SEAL; COVER |
1 |
1208- |
|
NQR71 |
(B) 8X80 IDN |
| 721 |
I8-97995 992-0 |
|
FINISHER; BRKT,KNEE |
1 |
1208- |
|
NQR71 |
IDN |
| 182 |
I8-97359 709-0 |
|
BOLT; BRKT,INST PANEL |
1 |
1208- |
|
NQR71 |
(C) M8X2 0 W/LK&PL WASHER |
| 603 |
I8-98021 271-0 |
|
CLIP; COVER |
5 |
1208- |
|
NQR71 |
|
| 525 |
I8-98177 744-0 |
|
SCREW; CUP STAND |
3 |
1208- |
|
NQR71 |
CUP HOLDER<7KZ> |
| 718 |
I8-98176 199-0 |
|
SEAL; COVER |
1 |
1208- |
|
NQR71 |
(B) 5X30 IDN |
| 704 |
I8-98107 549-0 |
|
BRACKET; CENTER POCKET |
2 |
1208- |
|
NQR71 |
EXC. FORGED AIR VENTILATION(C3 9),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT |
| 182 |
I8-98177 744-0 |
|
BOLT; BRKT,INST PANEL |
2 |
1208- |
|
NQR71 |
FORGED AIR VENTILATION(C3 9),HEATER & DEFRO STER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET |
| 700 |
I8-98177 744-0 |
|
BOLT; HOOK |
1 |
1208- |
|
NQR71 |
SCREW M5X16 HEXALOBULAR SOCKET |
| 718 |
I8-98200 041-0 |
|
SEAL; COVER |
1 |
1208- |
|
NQR71 |
(B) 4X35 IDN |
| 603 |
I8-98021 271-0 |
|
CLIP; COVER |
2 |
1208- |
|
NQR71 |
|
| 59 |
I8-98058 632-0 |
|
SCREW; CLUSTER POCKET |
2 |
1208- |
|
NQR71 |
EXC. FORGED AIR VENTILATION(C3 9),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT (C60),COOLER WO/HEATER(C65) M5X10 TAPPING W/TORQUES |
| 66 |
I8-97585 578-1 |
|
REINFORCEMENT; INST PANEL |
1 |
1208- |
|
NQR71 |
(B) IDN |
| 707 |
I8-98035 730-1 |
|
SHAFT; TRAY INST LID |
2 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN |
| 54 |
I8-97408 865-4 |
|
POCKET; CENTER CLUSTER |
1 |
1208- |
|
NQR71 |
(C) H=6 9.8 BLACK |
| 341 |
I8-97423 658-0 |
|
LID; FUSE BOX |
1 |
1208- |
|
NQR71 |
GRAY IDN |
| 61 |
I8-98108 915-0 |
|
SCREW; GLOVE BOX |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> |
| 18 |
I0-28050 816-0 |
|
BOLT; BRKT |
4 |
1208- |
|
NQR71 |
02.343 (B) M8X16 FLANGE |
| 336 |
I8-97405 259-5 |
|
COVER; INST PANEL SIDE |
1 |
1208- |
|
NQR71 |
(A) GRAY IDN |
| 689 |
I8-98061 778-1 |
|
SEAL; INST |
1 |
1208- |
|
NQR71 |
(B) 18X170 IDN |
| 698 |
I8-98089 257-1 |
|
BRACKET; INST BAR SIDE |
1 |
1208- |
|
NQR71 |
IDN |
| 704 |
I8-97585 618-2 |
|
BRACKET; CENTER POCKET |
2 |
1208- |
|
NQR71 |
(A) IDN |
| 182 |
I8-98177 720-0 |
|
BOLT; BRKT,INST PANEL |
3 |
1208- |
|
NQR71 |
16.585 (A) SCREW M6X12 HEXALOBULAR SOCKET |
| 54 |
I8-97408 865-4 |
|
POCKET; CENTER CLUSTER |
1 |
1208- |
|
NQR71 |
EXC. FORGED AIR VENTILATION(C3 9),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT |
| 698 |
I8-98089 256-1 |
|
BRACKET; INST BAR SIDE |
1 |
1208- |
|
NQR71 |
IDN |
| 705 |
I8-98177 743-0 |
|
SCREW; BRACKET CENTER POCKET |
4 |
1208- |
|
NQR71 |
M5X2 0 HEXALOBULAR SOCKET |
| 1 |
I8-97405 253-8 |
|
PANEL; INST |
1 |
1208- |
|
NQR71 |
GRAY IDN |
| 16 |
I8-97585 612-2 |
|
BRACKET; INST PNL |
1 |
1208- |
|
NQR71 |
FORGED AIR VENTILATION(C39),HEATER & DEFRO STER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) |
| 48 |
I8-98034 986-0 |
|
SPRING; GLOVE BOX LID |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN |
| 11 |
I8-98177 744-0 |
|
BOLT; INST PNL |
8 |
1208- |
|
NQR71 |
(A) M5X16 HEXALOBULAR SOCKET |
| 18 |
I8-98058 632-0 |
|
BOLT; BRKT |
3 |
1208- |
|
NQR71 |
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW M5X10 TAPPING W/TORQUES |
| 70 |
I8-98028 563-2 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
1208- |
|
NQR71 |
IDN |
| 568 |
I8-98177 744-0 |
|
BOLT; COVER |
1 |
1208- |
|
NQR71 |
|
| 265 |
I8-97418 528-0 |
|
HOLDER; CUP |
1 |
1208- |
|
NQR71 |
CUP HOLDER<7KZ> GRAY |
| 178 |
I0-91180 106-0 |
|
NUT; INST PANEL |
3 |
1208- |
|
NQR71 |
01.062 M6 FLANGE |
| 708 |
I8-98010 867-1 |
|
STOPPER; TRAY INST LID |
2 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN |
| 59 |
I8-98058 632-0 |
|
SCREW; CLUSTER POCKET |
2 |
1208- |
|
NQR71 |
M5X10 TAPPING W/TORQUES |
| 706 |
I8-97415 541-0 |
|
LID; TRAY INST |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY IDN |
| 59 |
I8-98058 632-0 |
|
SCREW; CLUSTER POCKET |
2 |
1208- |
|
NQR71 |
M5X10 TAPPING W/TORQUES |
| 666 |
I8-98037 629-0 |
|
INSERT; INST PANEL |
2 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) IDN |
| 48 |
I8-98034 987-0 |
|
SPRING; GLOVE BOX LID |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN |
| 724 |
I8-98200 042-0 |
|
INSULATOR; INST PANEL |
1 |
1208- |
|
NQR71 |
IDN |
| 53 |
I8-98108 913-0 |
|
STRIKER; GLOVE BOX |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> |
| 701 |
I8-97422 091-1 |
|
TRAY; INST |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP > (B) |
| 69 |
I8-98028 561-2 |
|
GRILLE; SIDE,AIR OUTLET |
2 |
1208- |
|
NQR71 |
(A) IDN |
| 702 |
I0-91180 106-0 |
|
NUT; TRAY |
2 |
1208- |
|
NQR71 |
01.062 M6 FLANGE |
| 666 |
I8-98037 629-0 |
|
INSERT; INST PANEL |
15 |
1208- |
|
NQR71 |
(A) IDN |
| 703 |
I8-98058 632-0 |
|
SCREW; CENTER POCKET |
4 |
1208- |
|
NQR71 |
16.100 M5X10 TAPPING W/TORQUES |
| 167 |
I8-97264 766-0 |
|
BOLT; REINF TO INST |
4 |
1208- |
|
NQR71 |
16 .090 M8X2 3 FLANGE |
| 54 |
I8-97407 129-4 |
|
POCKET; CENTER CLUSTER |
1 |
1208- |
|
NQR71 |
(A) H=108.4 BLACK IDN |
| 580 |
I8-98091 546-0 |
|
BRACKET; COVER |
1 |
1208- |
|
NQR71 |
EXC. CUP HOLDER<7KZ> |
| 125 |
I8-97419 968-1 |
|
CLIP; INST PANEL |
2 |
1208- |
|
NQR71 |
(C) GRAY IDN |
| 705 |
I8-98177 743-0 |
|
SCREW; BRACKET CENTER POCKET |
1 |
1208- |
|
NQR71 |
EXC. FORGED AIR VENTILATION(C3 9),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT (C60),COOLER WO/HEATER(C65) M5X2 0 HEXALOBULAR SOCKET |
| 569 |
I8-97410 276-0 |
|
HOLDER; CARD |
1 |
1208- |
|
NQR71 |
|
| 689 |
I8-98061 777-0 |
|
SEAL; INST |
1 |
1208- |
|
NQR71 |
(A) 7X31 IDN |
| 18 |
I8-98177 720-0 |
|
BOLT; BRKT |
2 |
1208- |
|
NQR71 |
16.585 (A) SCREW M6X12 HEXALOBULAR SOCKET |
| 527 |
I8-97151 251-0 |
|
CLIP; INST CLUSTER |
1 |
1208- |
|
NQR71 |
EXC. FORGED AIR VENTILATION(C3 9),HEATER & |
| 666 |
I8-98038 450-0 |
|
INSERT; INST PANEL |
4 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) IDN |
| 603 |
I8-98021 271-0 |
|
CLIP; COVER |
3 |
1208- |
|
NQR71 |
|
| 125 |
I8-97408 817-0 |
|
CLIP; INST PANEL |
2 |
1208- |
|
NQR71 |
(B) GRAY |
| 16 |
I8-98053 711-0 |
|
BRACKET; INST PNL |
1 |
1208- |
|
NQR71 |
(C) IDN |
| 715 |
I8-98034 928-0 |
|
SUPPORT; TRAY,HINGE |
1 |
1208- |
|
NQR71 |
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN |
| 718 |
I8-98218 319-0 |
|
SEAL; COVER |
1 |
1208- |
|
NQR71 |
(C) IDN |
| 16 |
I8-97585 532-0 |
|
BRACKET; INST PNL |
1 |
1208- |
|
NQR71 |
FORGED AIR VENTILATION(C3 9),HEATER & DEFRO STER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) |
| 544 |
I8-98177 744-0 |
|
SCREW; TRAY |
3 |
1208- |
|
NQR71 |
|
| 699 |
I8-97408 927-0 |
|
HOOK; INST PANEL |
1 |
1208- |
|
NQR71 |
GRAY IDN |
| 11 |
I8-98018 440-0 |
|
BOLT; INST PNL |
4 |
1208- |
|
NQR71 |
(B) M6X25 W/LK&PL WASHER |
| 10 |
I8-97419 683-5 |
|
PANEL ASM; GARNISH |
1 |
1208- |
|
NQR71 |
GRAY IDN |
| 705 |
I8-98177 743-0 |
|
SCREW; BRACKET CENTER POCKET |
4 |
1208- |
|
NQR71 |
M5X2 0 HEXALOBULAR SOCKET |
| 626 |
I8-94279 804-0 |
|
RETAINER |
2 |
1208- |
|
NQR71 |
|
| 34 |
I8-97405 260-1 |
|
LID; OIL TANK |
1 |
1208- |
|
NQR71 |
GRAY IDN |
| 696 |
I8-97589 189-4 |
|
BRACKET; KNEE |
1 |
1208- |
|
NQR71 |
IDN |
| 697 |
I8-97423 656-2 |
|
PANEL; INST CENTER |
1 |
1208- |
|
NQR71 |
GRAY IDN |
