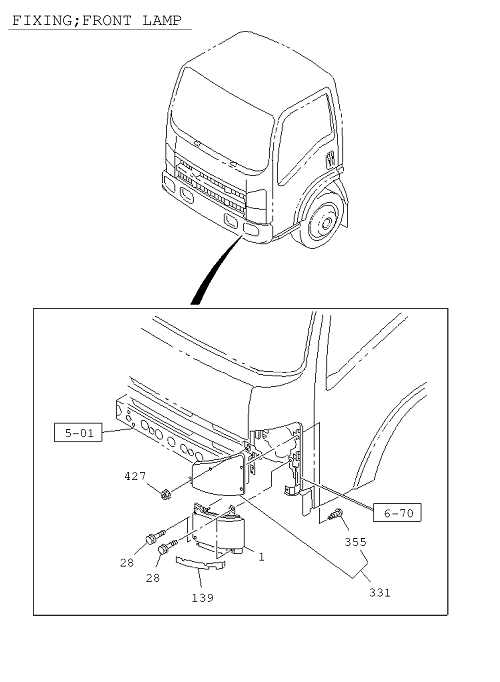

8-01 | LAMP; FRONT AND FRONT SIDE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

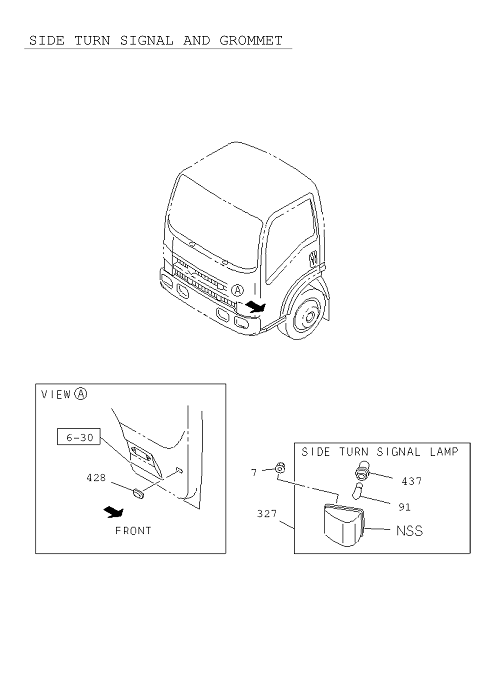

| 327 | I8-97410 180-A | LAMP ASM; SIDE TURN SIGNAL | 1 | 1208- | NQR71 | |||
| 324 | I1-82210 260-A | LAMP; FRT FLASHER | 2 | 2003- | NQR71 | |||
| 432 | I8-98051 431-0 | FASTENER; TURN SIGNAL,LAMP | 4 | 1208- | NQR71 | IDN | ||
| 355 | I8-98051 428-0 | SCREW; TURN SIGNAL | 4 | 1208- | NQR71 | |||

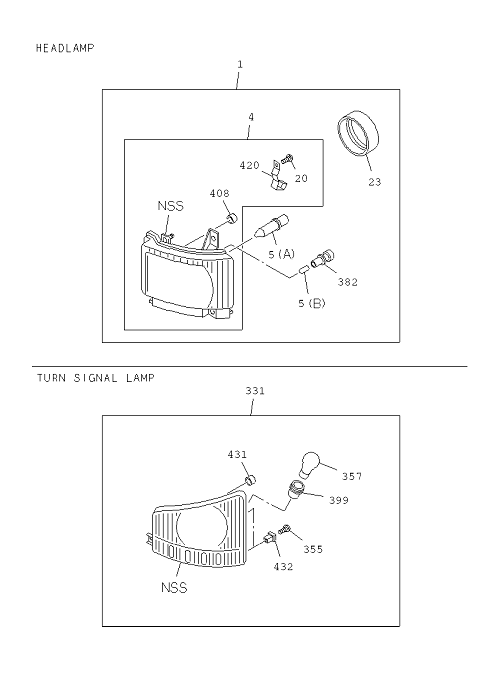

| 4 | I8-98226 183-0 | HEADLAMP UNIT | 1 | 1208- | NQR71 | |||
| 4 | I8-98226 182-0 | HEADLAMP UNIT | 1 | 1208- | NQR71 | |||
| 331 | I8-98155 458-A | LAMP; TURN SIGNAL | 1 | 1208- | NQR71 | |||
| 427 | I0-91180 106-0 | NUT; TURN SIGNAL LAMP | 2 | 1208- | NQR71 | 01.062 M6 FLANGE | ||
| 327 | I8-97410 181-A | LAMP ASM; SIDE TURN SIGNAL | 1 | 1208- | NQR71 | |||
| 139 | I8-98034 056-1 | COVER; HEADLAMP | 2 | 1208- | NQR71 | |||
| 5 | I6-82194 063-1 | BULB; HEADLAMP | 1 | 1208- | NQR71 | (IADG) (A) 24V 75/70W | ||
| 5 | I1-82194 063-0 | BULB; HEADLAMP | 2 | 1208- | NQR71 | (A) 24V 75/70W | ||
| 1 | I8-98241 326-A | LAMP ASM; HEAD | 1 | 2003- | NQR71 | |||
| 23 | I8-97232 491-0 | COVER; BULB,HEADLAMP | 2 | 1208- | NQR71 | IDN | ||
| 357 | I8-97323 806-A | BULB; TURN SIGNAL | 2 | 1208- | NQR71 | 2 4V 21W AMBER IDN | ||
| 1 | I8-98241 325-A | LAMP ASM; HEAD | 1 | 2003- | NQR71 | |||
| 437 | I8-98051 390-0 | SOCKET; SIDE,TURN | 2 | 1208- | NQR71 | IDN | ||
| 324 | I7-41100 210-A | LAMP; FRT FLASHER | 2 | 1208-2002 | NQR71 | |||
| 324 | I7-41100 211-A | LAMP; FRT FLASHER | 2 | 1208-2002 | NQR71 | |||
| 91 | I8-98051 495-0 | BULB; SIDE TURN SIGNAL | 2 | 1208- | NQR71 | 24V 21W IDN | ||
| 5 | I6-82194 063-1 | BULB; HEADLAMP | 1208- | NQR71 | (IADG) (A) 24V 75/70W | |||
| 20 | I8-97378 871-0 | SCREW; HEADLAMP | 6 | 1208- | NQR71 | IDN | ||
| 331 | I8-98155 459-A | LAMP; TURN SIGNAL | 1 | 1208- | NQR71 | |||
| 5 | I1-82194 042-0 | BULB; HEADLAMP | 2 | 1208- | NQR71 | (B) 2 4V 5W | ||
| 324 | I1-82210 259-A | LAMP; FRT FLASHER | 2 | 2003- | NQR71 | |||
| 7 | I0-91180 106-0 | NUT; FRT COMB LAMP | 2 | 1208- | NQR71 | 01.062 M6 FLANGE | ||
| 28 | I8-98164 723-0 | BOLT; HEADLAMP | 8 | 1208- | NQR71 | M6X23.5 W/LK&PL WASHER | ||
| 431 | I8-97378 874-0 | CAP; TURN SIGNAL,LAMP | 2 | 1208- | NQR71 | IDN | ||
| 1 | I7-41010 210-A | LAMP ASM; HEAD | 1 | 1208-2002 | NQR71 | |||
| 1 | I7-41010 211-A | LAMP ASM; HEAD | 1 | 1208-2002 | NQR71 | |||
| 428 | I8-94430 184-1 | GROMMET; SIDE COMB LAMP | 2 | 1208- | NQR71 | 17.447 IDN |
