8-21 | METER ASM
ELF
NQR 71

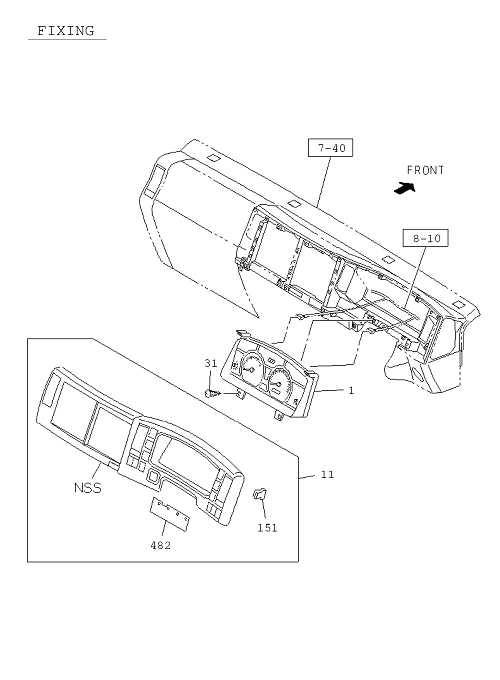

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 31 | I8-98177 744-0 | SCREW; METER,INST PANEL | 4 | 1208- | NQR71 | 16 .090 M5X16 HEXALOBULAR SOCKET | ||

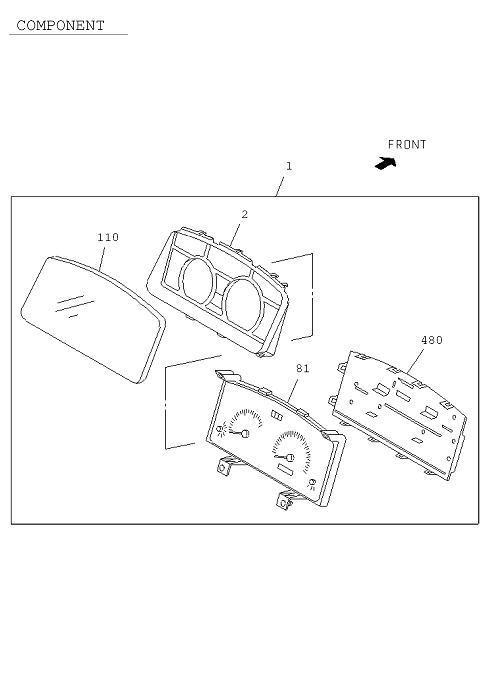

| 11 | I8-97405 350-6 | CLUSTER ASM; METER | 1 | 1208- | NQR71 | DARK GRAY IDN | ||
| 81 | I8-98176 354-0 | METER SUB ASM | 1 | 1208- | NQR71 | |||
| 2 | I8-98054 638-0 | PANEL; CLUSTER | 1 | 1208- | NQR71 | |||
| 110 | I8-98054 431-0 | GLASS; CLUSTER METER | 1 | 1208- | NQR71 | |||
| 482 | I8-98116 842-0 | SEAL; CLUSTER METER | 1 | 1208- | NQR71 | IDN | ||
| 151 | I8-98021 271-0 | CLIP; METER CLUSTER | 13 | 1208- | NQR71 | 16.085 IDN | ||
| 480 | I8-98054 433-0 | COVER; METER | 1 | 1208- | NQR71 | |||
| 1 | I8-98168 759-0 | METER COMPL; CLUSTER | 1 | 1208- | NQR71 |
