8-25 | SWITCH AND RELAY; INSTRUMENT PANEL
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||

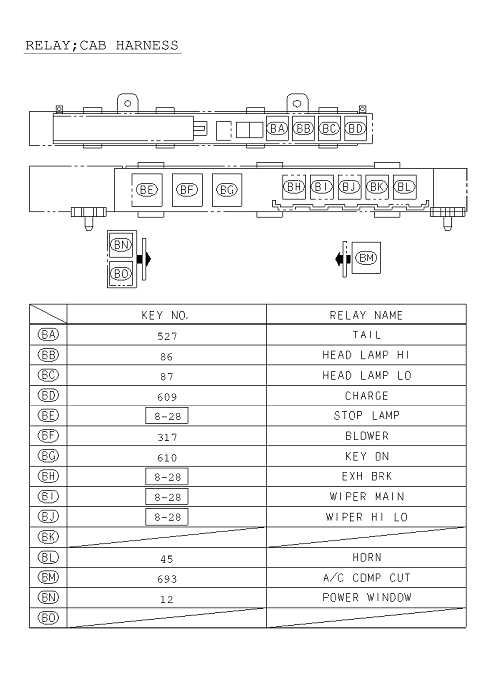

| 527 | I8-97173 035-1 | RELAY; TAIL | 1 | 1208- | NQR71 | 08.852 2 4V 10A MATSUSHITA IDN | ||
| 257 | I8-98029 917-0 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 2 | 1208- | NQR71 | |||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||
| 263 | I8-98153 836-0 | COVER; SW | 1 | 1208- | NQR71 | POWER WINDOW FRT DOOR<A32> | ||
| 87 | I8-97173 035-1 | RELAY; LOW-BEAM | 1 | 1208- | NQR71 | |||
| 10 | I8-98153 865-0 | SCREW; POWER WINDOW SW | 3 | 1208- | NQR71 | POWER WINDOW FRT DOOR<A32> | ||
| 8 | I8-97387 034-2 | SWITCH; POWER WINDOW | 1 | 1208- | NQR71 | POWER WINDOW FRT DOOR<A32> | ||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||

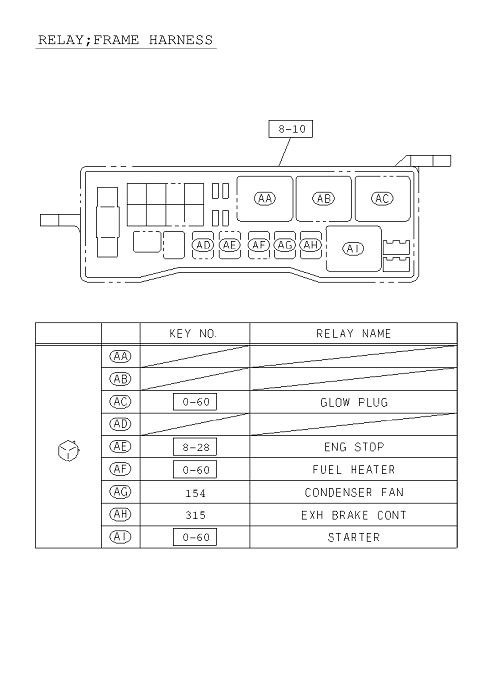

| 315 | I8-97173 035-1 | RELAY; EXH BRAKE CONT | 1 | 1208- | NQR71 | |||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||
| 693 | I8-97262 933-0 | RELAY; A/C.COMP.CUT | 1 | 1208- | NQR71 | AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO /HEATER(C65) 02.510 2 4V 12.5A MATSUSHITA | ||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||
| 180 | I8-98091 660-0 | BRACKET; RELAY | 1 | 1208- | NQR71 | AUTO DOOR LOCK<AU4> | ||

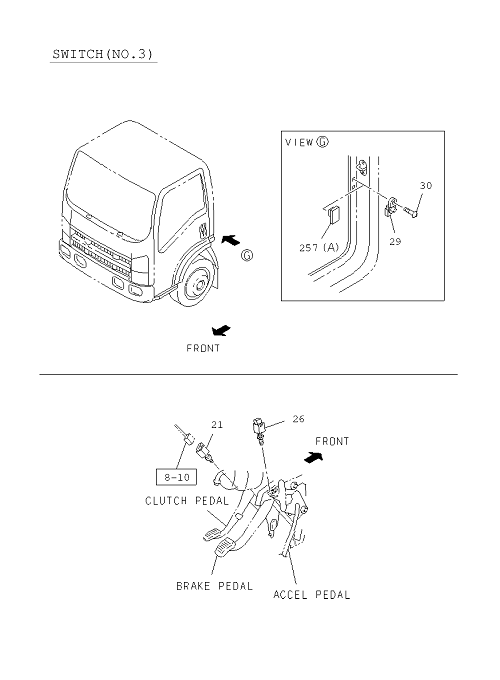

| 21 | I8-97358 248-0 | SWITCH; CLU | 1 | 1208- | NQR71 | |||

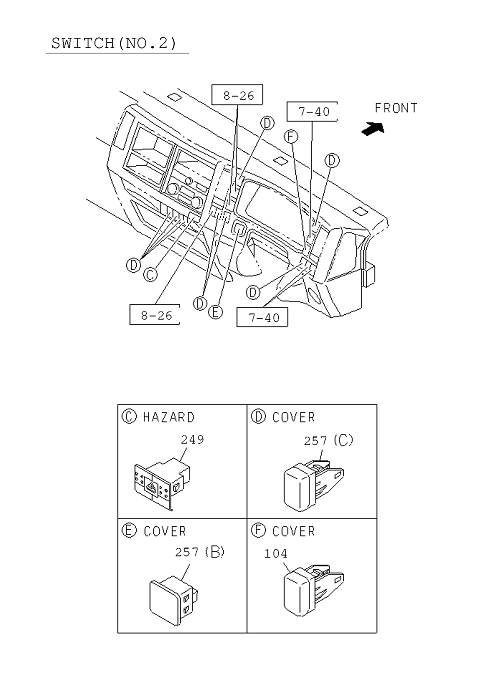

| 249 | I8-97386 922-1 | SWITCH; HAZARD | 1 | 1208- | NQR71 | |||
| 317 | I8-97262 933-0 | RELAY; BLOWER MOTOR,HTR | 1 | 1208- | NQR71 | FORGED AIR VENTILATION(C39),HEATER & DEFRO | ||

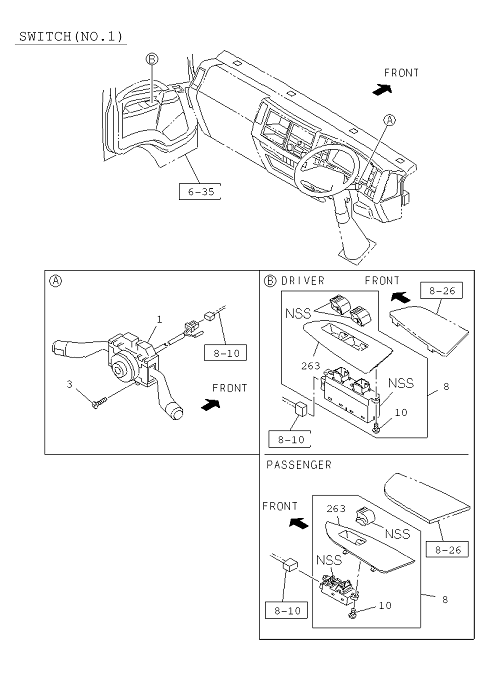

| 1 | I8-98114 331-1 | SWITCH; COMB | 1 | 1208- | NQR71 | EXC. INTERMITTENT WIPER<C13> | ||
| 29 | I8-98022 211-0 | SWITCH; DOOR | 1 | 1208- | NQR71 | |||
| 30 | I8-98047 201-0 | SCREW; DOOR SW | 1 | 1208- | NQR71 | |||
| 86 | I8-97173 035-1 | RELAY; HI-BEAM | 1 | 1208- | NQR71 | |||
| 1 | I8-98243 736-0 | SWITCH; COMB | 1 | 1208- | NQR71 | INTERMITTENT WIPER<C13> | ||
| 263 | I8-98153 841-0 | COVER; SW | 1 | 1208- | NQR71 | POWER WINDOW FRT DOOR<A32> | ||
| 154 | I8-97173 035-1 | RELAY; CONDENSER FAN | 1 | 1208- | NQR71 | AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO | ||
| 257 | I8-98029 914-1 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||
| 610 | I8-97262 933-0 | RELAY; KEY ON | 1 | 1208- | NQR71 | 2 4V 12.5A MATSUSHITA | ||
| 3 | I8-98061 743-0 | SCREW; COMB SW | 2 | 1208- | NQR71 | |||
| 104 | I8-98025 954-1 | COVER; SW HOLE,FOG LAMP | 1 | 1208- | NQR71 | |||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 1208- | NQR71 | |||

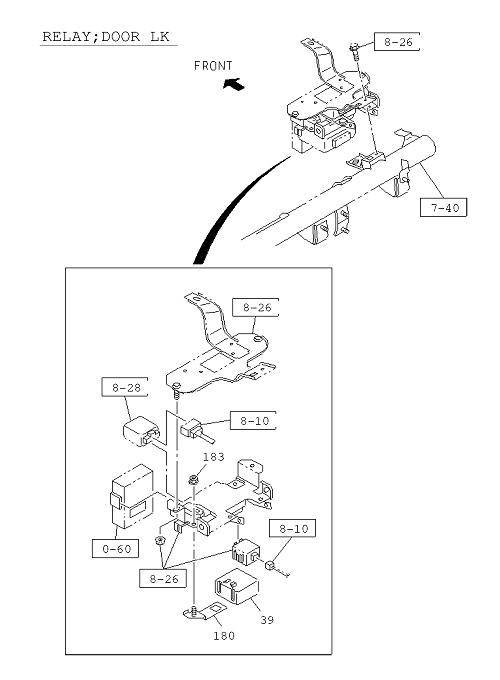

| 39 | I8-98060 789-1 | RELAY; DOOR LK | 1 | 1208- | NQR71 | AUTO DOOR LOCK<AU4> | ||
| 183 | I0-91180 106-0 | NUT; RELAY BRKT | 1 | 1208- | NQR71 | AUTO DOOR LOCK<AU4> | ||
| 26 | I8-97358 315-0 | SWITCH; ACCEL | 1 | 1208- | NQR71 | |||
| 45 | I8-97173 035-1 | RELAY; HORN | 1 | 1208- | NQR71 | |||
| 8 | I8-98159 543-0 | SWITCH; POWER WINDOW | 1 | 1208- | NQR71 | POWER WINDOW FRT DOOR<A32> | ||
| 609 | I8-97173 035-1 | RELAY; CHARGE | 1 | 1208- | NQR71 | 08.852 2 4V 10A MATSUSHITA IDN | ||
| 12 | I8-97173 035-1 | RELAY; POWER WINDOW | 1 | 1208- | NQR71 | POWER WINDOW FRT DOOR<A32> |
