8-26 | ELECTRICAL CONTROL AND OTHER PARTS
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

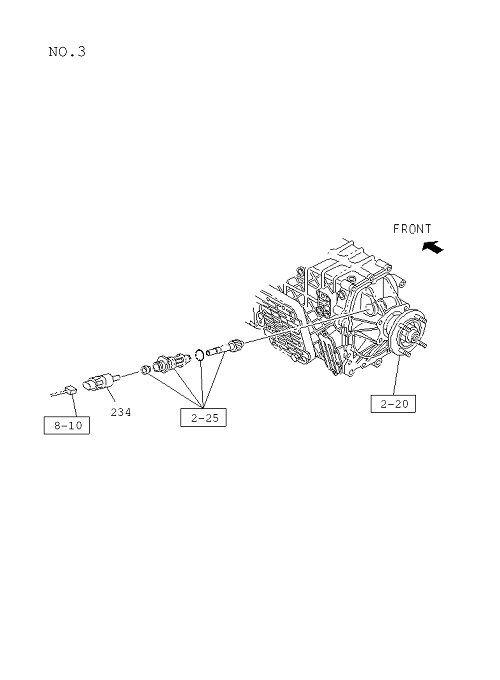

| 234 | I8-97328 058-1 | SENSOR; VEHICLE SPD | 1 | 1208- | NQR71 | 25 PULSE ALUMINUM | ||

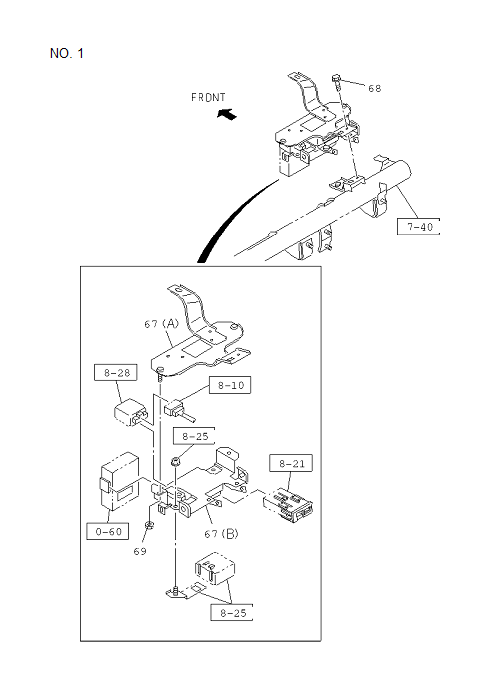

| 67 | I8-98022 170-1 | BRACKET; CONT UNIT | 1 | 1208- | NQR71 | (A) IDN | ||
| 1 | I8-98142 962-0 | LIGHTER; CIGAR | 1 | 1208- | NQR71 | IDN | ||
| 21 | I8-98025 954-1 | COVER; HOLE | 1 | 1208- | NQR71 | 16081 | ||
| 635 | I8-97214 325-0 | SENSOR; TACHOMETER | 1 | 1208- | NQR71 | YAZAKI | ||

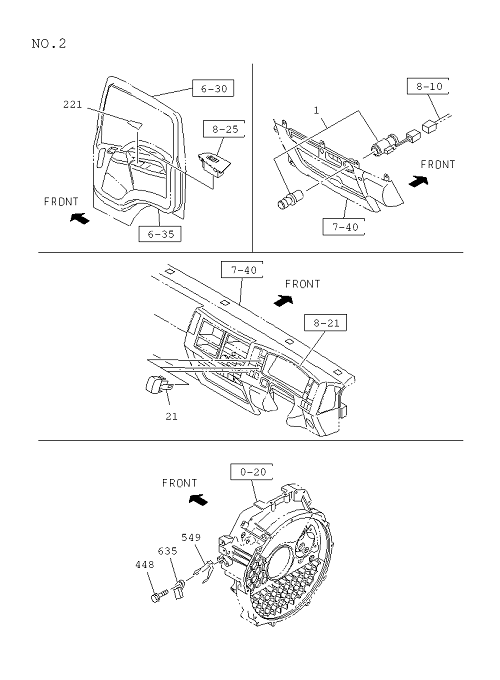

| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 1208- | NQR71 | EXC. POWER WINDOW FRT DOOR<A32> IDN | ||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 1208- | NQR71 | EXC. POWER WINDOW FRT DOOR<A32> IDN | ||
| 67 | I8-98172 518-0 | BRACKET; CONT UNIT | 1 | 1208- | NQR71 | (B) IDN | ||
| 448 | I0-28050 616-0 | BOLT; SENSOR | 1 | 1208- | NQR71 | 09.242 M6X16 FLANGE IDN | ||
| 69 | I0-91180 106-0 | NUT; BRKT | 2 | 1208- | NQR71 | 01.062 M6 FLANGE | ||
| 68 | I0-28450 612-0 | BOLT; BRKT | 1 | 1208- | NQR71 | 00.206 M6X12 FLANGE IDN | ||
| 549 | I8-97161 633-2 | SHEET | 1 | 1208- | NQR71 | 9743 | ||
| 21 | I8-98025 954-1 | COVER; HOLE | 2 | 1208- | NQR71 | 16 .081 |
