8-28 | CHASSIS ELECTRICAL
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I8-97173 035-1 | RELAY; WIPER | 1 | 1208- | NQR71 | 08.852 24V 10A MATSUSHITA IDN | ||

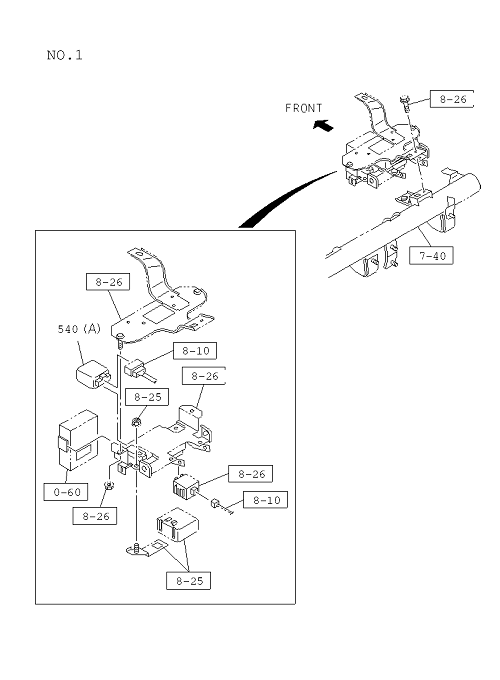

| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 1208- | NQR71 | INTERMITTENT WIPER<C13> (A) | ||

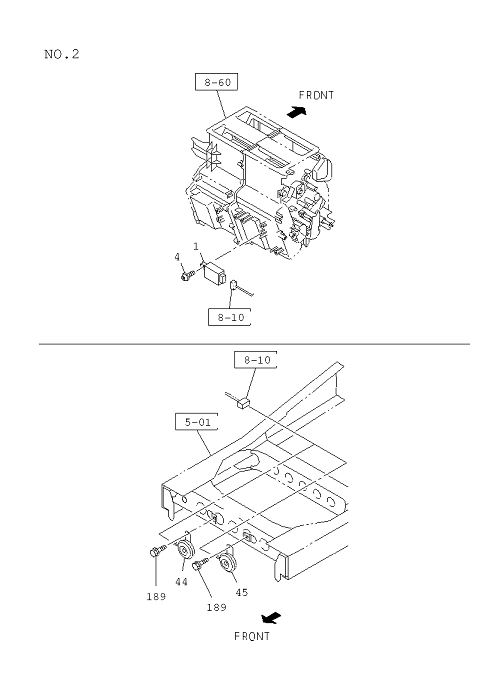

| 45 | I7-43600 341-A | HORN; LOW NOTE | 1 | 1208- | NQR71 | IDN | ||
| 189 | I8-98141 255-0 | BOLT; HORN | 1 | 1208- | NQR71 | 02.343 M8X18.5 W/PL WASHER | ||
| 1 | I8-98025 533-A | UNIT; FLASHER | 1 | 1208- | NQR71 | |||
| 236 | I8-97173 035-1 | RELAY; FUEL PUMP | 1 | 1208- | NQR71 | 08.852 24V 10A MATSUSHITA IDN | ||
| 189 | I8-98141 255-0 | BOLT; HORN | 1 | 1208- | NQR71 | DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER | ||
| 540 | I8-97173 035-1 | RELAY; WIPER INTERVAL | 1 | 1208- | NQR71 | 08.852 (B) 24V 10A MATSUSHITA IDN | ||
| 4 | I8-98177 744-0 | SCREW; FLASHER UNIT | 1 | 1208- | NQR71 | 16.090 M5X16 HEXALOBULAR SOCKET | ||
| 770 | I8-97173 035-1 | RELAY; ENG BRK | 1 | 1208- | NQR71 | 08.852 24V 10A MATSUSHITA IDN | ||
| 22 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 1208- | NQR71 | 02.510 24V 12.5A MATSUSHITA | ||
| 44 | I8-98070 080-0 | HORN; HIGH NOTE | 1 | 1208- | NQR71 | DUAL HEAVY DUTY HORN(6KK) IDN |
