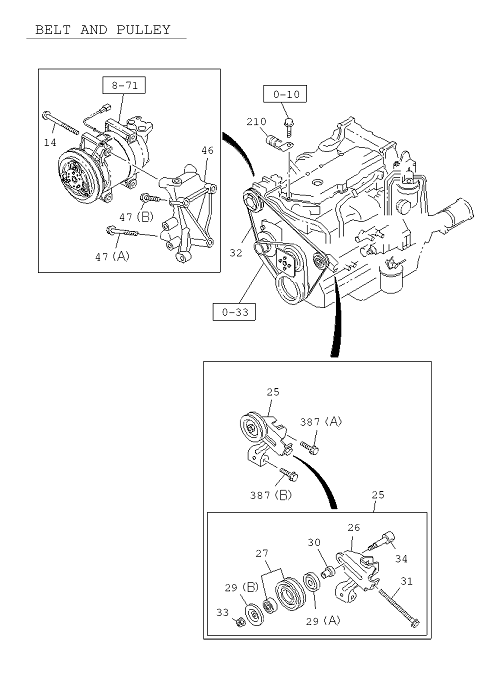

| 32 |
I8-97180 183-3 |
|
BELT; A/C CMPR |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 387 |
I0-28050 850-0 |
|
BOLT; TENSIONER FIX |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE |
| 210 |
I8-97367 984-1 |
|
CLIP; HARNESS |
1 |
1208- |
|
NQR71 |
03.671 ID=12 IDN |
| 31 |
I8-97384 113-0 |
|
BOLT; ADJ,IDLE PULLEY |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 7 |
I0-28651 230-0 |
|
BOLT; BRKT |
4 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO |
| 27 |
I8-97386 869-0 |
|
PULLEY; IDLE,A/C |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 34 |
I8-97384 116-0 |
|
SHAFT; IDLE PULLEY |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 14 |
I0-28050 890-0 |
|
BOLT; CMPR |
4 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 47 |
I8-97365 449-0 |
|
BOLT; BRKT TO BODY |
2 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 29 |
I8-97384 114-0 |
|
COVER; DUST,IDLE PULLEY |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 71 |
I8-98017 234-1 |
|
COVER; EVAP,A/C |
1 |
1208- |
|
NQR71 |
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT (C60),COOLER WO/HEATER(C65) IDN |
| 211 |
I8-94463 508-0 |
|
CLIP; HOSE |
1 |
1208- |
|
NQR71 |
HEATER & DEFROSTER(C41),AIR CONDITIONER MA NUAL CONT(C60) 03.278 |
| 25 |
I8-97161 198-1 |
|
PULLEY ASM; IDLER,CMPR |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 32 |
I6-97180 183-0 |
|
BELT; A/C CMPR NQR71B |
1 |
1208- |
|
NQR71 |
(IADG) AIR CONDITIONER MANUAL CONT(C60) |
| 70 |
I0-91180 108-0 |
|
0-91180-108-0 |
4 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO /HEATER(C65) 01. 062 M8 FLANGE |
| 378 |
I8-97387 174-2 |
|
HOSE; DRAIN,EVAPORATOR |
1 |
1208- |
|
NQR71 |
FORGED AIR VENTILATION(C39),HEATER & DEFRO STER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) |
| 387 |
I8-94344 540-1 |
|
BOLT; TENSIONER FIX |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X6 5 FLANGE |
| 29 |
I8-97384 115-0 |
|
COVER; DUST,IDLE PULLEY |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) i r ^ |
| 30 |
I8-97384 117-0 |
|
COLLAR; IDLE PULLEY |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 33 |
I8-97384 118-0 |
|
NUT; IDLER PULLEY |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 47 |
I0-50640 820-0 |
|
BOLT; BRKT TO BODY |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 26 |
I8-97161 031-1 |
|
BRACKET; IDLE PULLEY,A/C |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 46 |
I8-97305 489-0 |
|
BRACKET; CMPR |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C60) |
| 1 |
I8-97387 182-0 |
|
BRACKET; A/C |
1 |
1208- |
|
NQR71 |
AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO |
