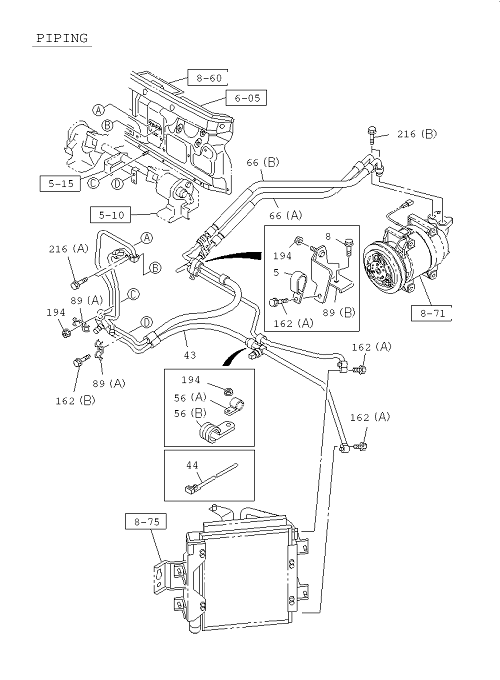

8-52 | PIPING; AIR CONDITIONING
ELF
NQR 71

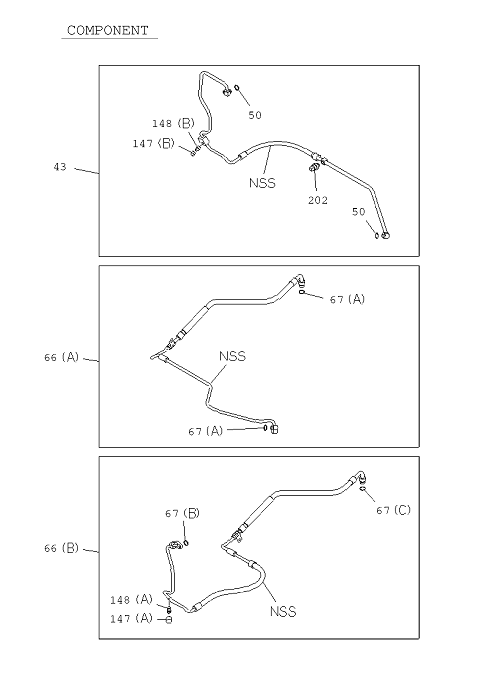

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I5-09707 030-1 | CLIP; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 162 | I0-28650 620-0 | BOLT; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 194 | I0-91180 106-0 | NUT; HOSE | 3 | 1208- | NQR71 | AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO /HEATER(C65) 01.062 M6 FLANGE | ||
| 147 | I8-97095 911-0 | CAP; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 44 | I5-09707 030-1 | CLIP; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 216 | I0-28650 825-0 | BOLT; HOSE FIX | 2 | 1208- | NQR71 | AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO /HEATER(C65) 06.216 (B) M8X2 5 FLANGE IDN | ||
| 89 | I8-98002 365-2 | BRACKET; A/C PIPE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 66 | I8-98100 100-1 | HOSE; FLEX,A/C | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 66 | I8-98159 630-2 | HOSE; FLEX,A/C | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 56 | I8-98032 641-0 | CLIP; PIPE,A/C | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 5 | I8-98052 857-0 | CLIP; FLEX HOSE,A/C | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 147 | I1-83539 331-0 | CAP; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 50 | I1-83539 316-0 | GASKET; FLEX HOSE,A/C | 2 | 1208- | NQR71 | AIR CONDITIONER | ||
| 162 | I0-28650 625-0 | BOLT; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 202 | I1-83564 392-1 | SWITCH; PRESSURE | 1 | 1208- | NQR71 | AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO /HEATER(C65) | ||
| 67 | I8-97095 908-0 | GASKET; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 148 | I8-97095 909-0 | VALVE; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 67 | I8-97095 907-0 | GASKET; FLEX HOSE | 2 | 1208- | NQR71 | AIR CONDITIONER | ||
| 89 | I8-98151 264-0 | BRACKET; A/C PIPE | 2 | 1208- | NQR71 | AIR CONDITIONER | ||
| 8 | I0-28650 825-0 | BOLT; CLIP | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 162 | I0-28650 625-0 | BOLT; FLEX HOSE | 2 | 1208- | NQR71 | AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO /HEATER(C65) 00.685 (A) M6X25 FLANGE IDN | ||
| 67 | I8-98036 895-0 | GASKET; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 56 | I0-95235 232-0 | CLIP; PIPE,A/C | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 148 | I8-98031 629-0 | VALVE; FLEX HOSE | 1 | 1208- | NQR71 | AIR CONDITIONER | ||
| 216 | I0-28650 630-0 | BOLT; HOSE FIX | 2 | 1208- | NQR71 | AIR CONDITIONER MANUAL CONT(C6 0),COOLER WO /HEATER(C65) 03.680 (A) M6X3 0 FLANGE | ||
| 43 | I8-98179 006-0 | HOSE; FLEX,A/C,EVAP TO CMPR | 1 | 1208- | NQR71 | AIR CONDITIONER |
