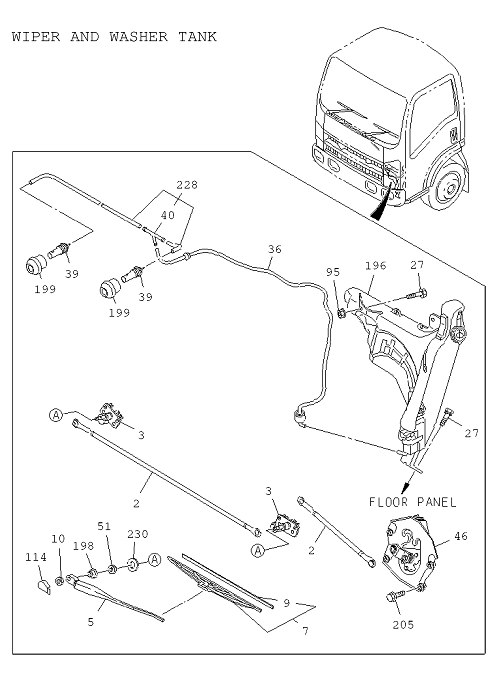

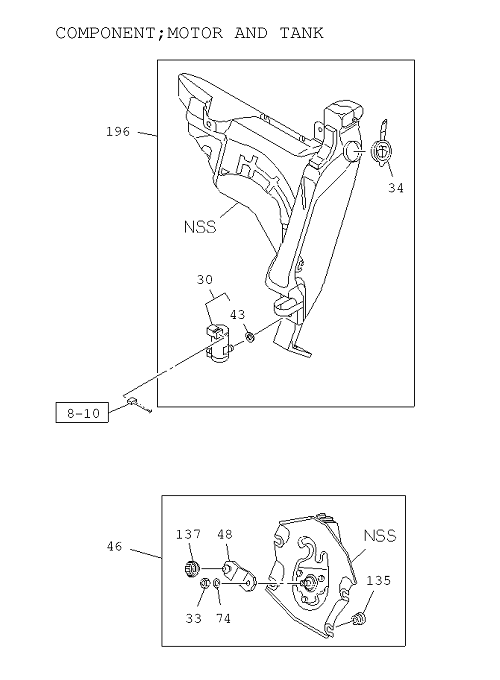

8-80 | WINDSHIELD WIPER AND WASHER
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 34 | I8-97855 140-0 | CAP; WASHER TANK | 1 | 1208- | NQR71 | IDN | ||
| 40 | I5-83363 003-0 | JOINT; WASHER HOSE | 1 | 1208- | NQR71 | 3WAY IDN | ||
| 33 | I8-97855 157-0 | NUT; MOTOR TO ARM | 1 | 1208- | NQR71 | M8 IDN | ||
| 196 | I8-98029 135-3 | TANK; WASHER | 1 | 1208- | NQR71 | IDN | ||
| 5 | I8-98053 779-0 | ARM; WIPER | 1 | 1208- | NQR71 | IDN | ||
| 46 | I8-98029 123-3 | MOTOR ASM; FRT WINDSHIELD WIPER | 1 | 1208- | NQR71 | IDN | ||
| 230 | I8-98029 097-0 | COLLAR; WIPER LINK | 2 | 1208- | NQR71 | IDN | ||
| 2 | I8-98053 765-0 | LINK; FRT WIPER | 1 | 1208- | NQR71 | L=350 W/CAP STAMP P IDN | ||
| 39 | I8-98029 139-1 | NOZZLE; WINDSHIELD WASHER | 2 | 1208- | NQR71 | IDN | ||
| 114 | I8-94282 851-0 | COVER; FRT WIPER ARM | 2 | 1208- | NQR71 | BLACK IDN | ||
| 95 | I0-91180 108-0 | NUT; WASHER TANK | 1 | 1208- | NQR71 | 01.062 M8 FLANGE | ||
| 30 | I8-97855 139-0 | MOTOR ASM; FRT WASHER TANK | 1 | 1208- | NQR71 | |||
| 51 | I8-98029 167-0 | NUT; WIPER MOTOR LINK | 2 | 1208- | NQR71 | M2 4 IDN | ||
| 199 | I8-98079 030-0 | COVER; NOZZLE,WIPER | 2 | 1208- | NQR71 | IDN | ||
| 5 | I8-98053 778-0 | ARM; WIPER | 1 | 1208- | NQR71 | IDN | ||
| 3 | I8-98053 764-0 | PIVOT ASM; FRT WIPER | 1 | 1208- | NQR71 | IDN | ||
| 74 | I8-97162 101-0 | WASHER; ARM TO MOTOR | 1 | 1208- | NQR71 | ID=8 IDN | ||
| 137 | I8-98052 218-0 | SEAL; JOINT,WIPER MOTOR | 1 | 1208- | NQR71 | IDN | ||
| 205 | I8-98018 440-0 | BOLT; WIPER MOTOR | 4 | 1208- | NQR71 | 16.090 M6X25 W/LK&PL WASHER | ||
| 228 | I8-98029 168-1 | HOSE ASM; WASHER | 1 | 1208- | NQR71 | IDN | ||
| 36 | I8-98029 172-3 | HOSE; WASHER | 1 | 1208- | NQR71 | IDN | ||
| 27 | I8-94310 730-0 | BOLT; WASHER TANK | 2 | 1208- | NQR71 | 16.550 M8X16 W/LK&PL WASHER | ||
| 2 | I8-98053 769-0 | LINK; FRT WIPER | 1 | 1208- | NQR71 | L=840 W/CAP IDN | ||
| 48 | I8-98052 215-0 | ARM; WIPER MOTOR | 1 | 1208- | NQR71 | IDN | ||
| 10 | I0-91110 508-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 1208- | NQR71 | 02.334 M8 IDN | ||
| 3 | I8-98053 762-0 | PIVOT ASM; FRT WIPER | 1 | 1208- | NQR71 | IDN | ||
| 198 | I8-98029 164-0 | COVER; PIVOT,WIPER | 2 | 1208- | NQR71 | IDN | ||
| 9 | I8-98053 792-0 | RUBBER; FRT WIPER BLADE | 2 | 1208- | NQR71 | IDN | ||
| 43 | I8-94352 050-0 | RUBBER; GASKET,TANK | 1 | 1208- | NQR71 | 10.154 IDN | ||
| 135 | I8-98052 214-0 | RUBBER; CUSHION, WIPER MOTOR | 4 | 1208- | NQR71 | IDN |
