0-13 | OIL PAN AND LEVEL GUIDE
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 360 | 8-97329 650-1 | BRACKET CRANK CASE | 1 | 1602- | A | |||
| 216 | 8-94329 953-1 | BOLT BRKT | 1 | 1602- | A | 00.034 (B) M8X22 W/LK&PL WASHER | ||
| 2 | 8-98206 801-1 | GAUGE OIL LEVEL | 1 | 1602- | A | |||
| 3 | 8-94158 328-0 | GASKET DRAIN PLUG | 1 | 1602- | ABCD | ID=14.2 OD=24 | ||
| 8 | 8-98206 113-1 | TUBE GUIDE,OIL LEVEL GAUGE | 1 | 1602- | A | |||
| 27 | 8-98195 138-0 | CRANKCASE | 1 | 1602- | D | 4X4(TFS***) | ||
| 357 | 8-97371 498-0 | BUSHING COVER | 3 | 1602- | A | |||
| 28 | 0-28055 812-0 | BOLT CRANKCASE TO C/BL | 1 | 1602- | A | (B) M8X12 0 FLANGE | ||
| 280 | 8-94329 953-1 | BOLT COVER | 3 | 1602- | A | 00.034 M8X22 W/LK&PL WASHER | ||
| 27 | 8-98225 709-3 | CRANKCASE | 1 | 1602- | C | 4X2(TFB***) | ||
| 27 | 8-98225 708-2 | CRANKCASE | 1 | 1602- | B | 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) | ||
| 9 | 5-09623 002-0 | GASKET GUIDE TUBE,OIL LEVEL GAU | 2 | 1602- | A | ID=11 | ||
| 27 | 8-98225 709-3 | CRANKCASE | 1 | 1602- | B | 4X2(TFB***) A/T 5 SPEED-AISIN(MA1) | ||
| 25 | 0-41010 816-0 | STUD OIL PAN | 2 | 1602- | BCD | M8X16 L=2 8 | ||
| 8 | 8-98151 195-3 | TUBE GUIDE,OIL LEVEL GAUGE | 1 | 1602- | D | |||
| 25 | 0-41010 612-0 | STUD OIL PAN | 2 | 1602- | A | M6X12 L=21 | ||
| 43 | 8-98225 711-0 | PLATE CRANKCASE | 1 | 1602- | BC | |||
| 28 | 0-28050 816-0 | BOLT CRANKCASE TO C/BL | 6 | 1602- | BC | 02 .343 (C) M8X16 FLANGE | ||
| 113 | 9-08161 032-0 | PIN STRAIGHT | 2 | 1602- | B | A/T 5 SPEED-AISIN(MA1) 08.939 OD=10 L=3 2 | ||
| 71 | 0-41010 818-0 | STUD OIL DRAIN PIPE | 2 | 1602- | A | M8X18 L=3 0 | ||
| 23 | 8-97135 141-0 | BOLT OIL PAN | 15 | 1602- | A | M6X13 W/PL WASHER | ||
| 10 | 0-28050 816-0 | BOLT GUIDE TUBE | 1 | 1602- | BC | 02 .343 M8X16 FLANGE | ||
| 2 | 8-98228 328-2 | GAUGE OIL LEVEL | 1 | 1602- | BC | 4X4(TFS***) | ||
| 27 | 8-98225 710-2 | CRANKCASE | 1 | 1602- | B | 4X4(TFS***) A/T 5 SPEED-AISIN(MA1) | ||
| 29 | 0-91180 108-0 | NUT CRANKCASE | 2 | 1602- | A | 01 . 062 M8 FLANGE | ||
| 24 | 0-91180 208-0 | NUT OIL PAN | 2 | 1602- | BCD | 01.540 M8 FLANGE | ||
| 42 | 8-97120 933-0 | GASKET CRANKCASE TO C/BL | 1 | 1602- | A | (A) | ||
| 216 | 0-28050 812-0 | BOLT BRKT | 1 | 1602- | A | 02 .343 (A) M8X12 FLANGE | ||
| 9 | 8-98034 629-0 | GASKET GUIDE TUBE,OIL LEVEL GAU | 1 | 1602- | BCD | ID=11 OD=15.8 | ||
| 330 | 8-97325 051-0 | RUBBER MTG,CRANKCASE COVER | 3 | 1602- | A | 00.413 OD=21.8 | ||
| 27 | 8-98195 137-0 | CRANKCASE | 1 | 1602- | D | 4X2(TFB***) | ||

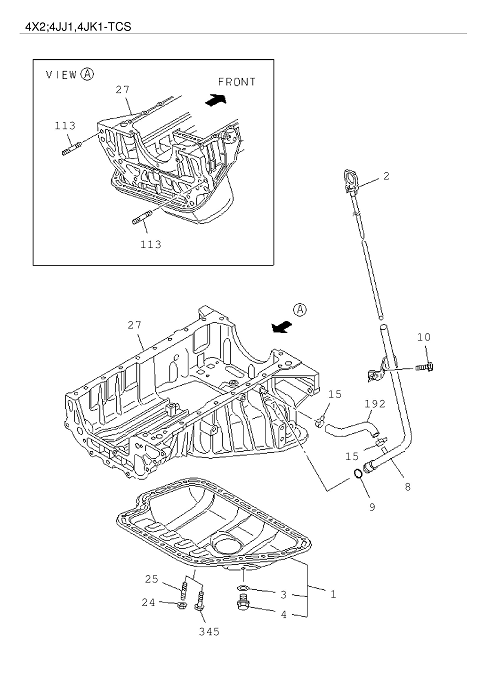

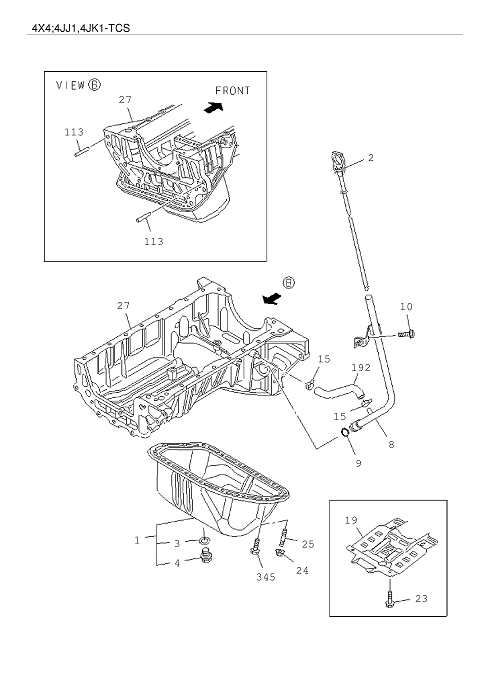

| 1 | 8-98132 001-2 | PAN ASM OIL | 1 | 1602- | BCD | 4X4(TFS***) | ||
| 2 | 8-98254 458-2 | GAUGE OIL LEVEL | 1 | 1602- | D | 4X2(TFB***) | ||
| 1 | 8-97248 860-2 | PAN ASM OIL | 1 | 1602- | A | |||
| 28 | 0-50540 832-0 | BOLT CRANKCASE TO C/BL | 19 | 1602- | A | (A) M8X32 W/LK WASHER | ||
| 42 | 8-97123 342-0 | GASKET CRANKCASE TO C/BL | 1 | 1602- | A | (B) | ||
| 2 | 8-98254 459-2 | GAUGE OIL LEVEL | 1 | 1602- | D | 4X4 (TFS***) | ||
| 113 | 9-09878 597-0 | PIN STRAIGHT | 2 | 1602- | A | 01.428 L=31 | ||
| 192 | 8-98211 985-0 | HOSE GUIDE TUBE | 1 | 1602- | D | |||
| 27 | 8-98225 710-2 | CRANKCASE | 1 | 1602- | C | 4X4(TFS***) | ||
| 1 | 8-98156 371-0 | PAN ASM OIL | 1 | 1602- | BCD | 4X2 (TFB***) | ||
| 24 | 8-97329 622-0 | NUT OIL PAN | 2 | 1602- | A | M6 W/LK WASHER | ||
| 8 | 8-98228 277-2 | TUBE GUIDE,OIL LEVEL GAUGE | 1 | 1602- | BC | |||
| 27 | 8-97358 796-0 | CRANKCASE | 1 | 1602- | A | |||
| 276 | 8-97373 085-2 | COVER CRANKCASE | 1 | 1602- | A | |||
| 15 | 8-94107 762-0 | CLIP GUIDE TUBE | 2 | 1602- | D | 03.145 ID=8 | ||
| 4 | 8-97329 621-0 | PLUG DRAIN,OIL | 1 | 1602- | BCD | M14X14 | ||
| 345 | 0-28050 812-0 | BOLT SENSOR,OIL LEVEL | 21 | 1602- | BCD | 4X2 (TFB***) 02 .343 M8X12 FLANGE | ||
| 4 | 8-94152 613-0 | PLUG DRAIN,OIL | 1 | 1602- | A | 03 . 001 M14X14 | ||
| 10 | 0-28050 816-0 | BOLT GUIDE TUBE | 2 | 1602- | A D | 02 .343 M8X16 FLANGE | ||
| 2 | 8-98228 327-2 | GAUGE OIL LEVEL | 1 | 1602- | BC | 4X2(TFB***) | ||
| 40 | 5-11369 038-0 | NIPPLE OIL RETURN HOSE VAC PUMP | 1 | 1602- | A | 1531 | ||
| 345 | 0-28050 812-0 | BOLT SENSOR,OIL LEVEL | 14 | 1602- | BCD | 4X4(TFS***) 02 .343 M8X12 FLANGE | ||
| 27 | 8-98225 707-3 | CRANKCASE | 1 | 1602- | B | 4X2 (TFB***) M/T MUA 5 SPEED 5H(MWQ) | ||
| 30 | 0-41010 835-0 | STUD CRANKCASE | 2 | 1602- | A | M8X35 L=4 7 | ||
| 113 | 9-08161 032-0 | PIN STRAIGHT | 2 | 1602- | CD | 08.939 OD=10 L=3 2 |
