0-14 | CAMSHAFT AND VALVE
DMAX
D-MAX 2016

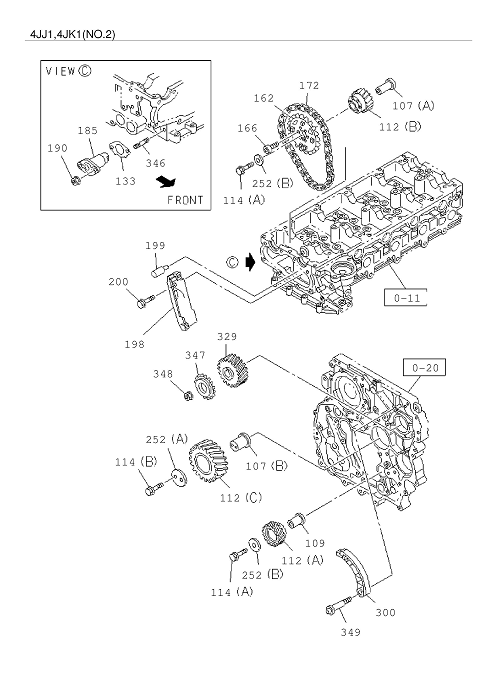

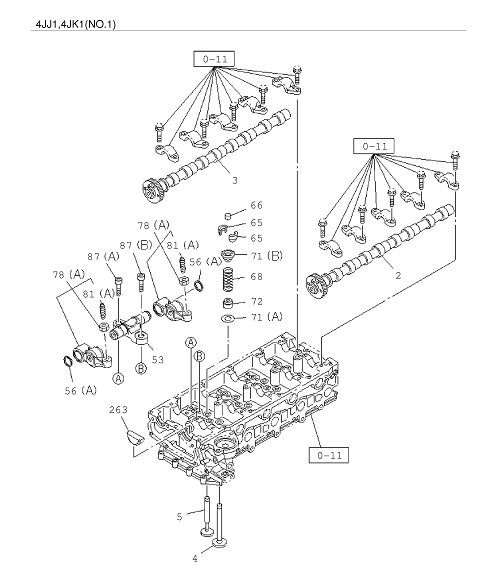

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 172 | 8-98119 279-1 | CHAIN TIMING,CM/SHF | 1 | 1602- | BCD | |||
| 65 | 5-12565 004-0 | COLLAR SPLIT | 16 | 1602- | A | |||
| 107 | 8-98245 905-0 | SHAFT IDLE GEAR | 1 | 1602- | BC | (D) | ||
| 359 | 8-97947 983-0 | SLEEVE GEAR | 1 | 1602- | BC | |||
| 275 | 8-97245 683-0 | PIN IDLE GEAR | 4 | 1602- | A | OD=5 L= 7.5 | ||
| 162 | 8-97312 331-1 | SPROCKET IDLE | 1 | 1602- | BCD | |||
| 190 | 0-91180 206-0 | NUT CHAIN TENSIONER | 2 | 1602- | BCD | 01.540 M6 FLANGE | ||
| 305 | 8-97240 019-1 | BEARING IDLE GEAR | 1 | 1602- | A | |||
| 199 | 8-97356 061-1 | JET OIL,TIMING CHAIN | 1 | 1602- | BCD | |||
| 282 | 8-97245 337-0 | SPRING GEAR | 2 | 1602- | A | |||
| 111 | 8-94171 289-0 | COLLAR THRUST,IDLE GEAR | 1 | 1602- | A | |||
| 3 | 8-98228 492-2 | CAMSHAFT EXH | 1 | 1602- | BC | |||
| 109 | 8-97312 319-1 | SHAFT IDLE GEAR | 1 | 1602- | BCD | |||
| 112 | 8-98021 052-1 | GEAR IDLE | 1 | 1602- | BCD | (A) Z=34 | ||
| 104 | 8-94129 384-1 | BOLT SHAFT IDLE | 1 | 1602- | A | M12X77 | ||
| 200 | 1-09070 120-1 | BOLT CHAIN GUIDE,LWR | 2 | 1602- | BCD | 01.064 M8X20 | ||
| 56 | 8-98109 470-0 | RING SNAP,ROCKER ARM | 16 | 1602- | D | (A) | ||
| 95 | 8-94341 905-0 | SPRING ROCKER SHAFT | 3 | 1602- | A | |||
| 78 | 8-98029 537-6 | ARM ROCKER | 16 | 1602- | D | (A) | ||
| 263 | 8-97947 079-0 | GASKET CAM END | 4 | 1602- | D | |||
| 81 | 8-98029 893-0 | SCREW ADJ,ROCKER ARM | 16 | 1602- | BCD | (A) M8 L=22 | ||
| 71 | 8-94133 731-2 | SEAT SPR | 8 | 1602- | A | (D) OD=32.8 | ||
| 112 | 8-97240 014-1 | GEAR IDLE | 1 | 1602- | A | (D) Z=43 | ||
| 71 | 5-12563 001-0 | SEAT SPR | 8 | 1602- | A | (C) OD=34 | ||
| 347 | 8-98246 954-0 | SPROCKET I/PUMP | 1 | 1602- | BC | |||
| 112 | 8-98231 907-0 | GEAR IDLE | 1 | 1602- | BC | (E) Z=35 | ||
| 185 | 8-98039 754-1 | TENSIONER CHAIN | 1 | 1602- | D | |||
| 10 | 8-94110 480-1 | PLATE THRUST | 1 | 1602- | A | |||
| 87 | 0-58330 840-0 | BOLT ROCKER SHAFT | 8 | 1602- | D | (A) M8X4 0 HEX SOCKET | ||
| 112 | 8-98021 050-2 | GEAR IDLE | 1 | 1602- | D | (C) Z= 8 0 | ||
| 114 | 0-28161 260-0 | BOLT IDLE GEAR | 2 | 1602- | D | (A) M12X6 0 FLANGE | ||
| 78 | 8-98204 885-1 | ARM ROCKER | 16 | 1602- | BC | (C) | ||
| 9 | 8-97240 012-2 | GEAR CM/SHF | 1 | 1602- | A | Z= 6 0 | ||
| 53 | 8-98244 914-0 | SHAFT ROCKER ARM | 2 | 1602- | BC | |||
| 65 | 8-94239 501-0 | COLLAR SPLIT | 32 | 1602- | BCD | |||
| 329 | 8-97312 298-3 | GEAR INJ PUMP | 1 | 1602- | BCD | Z=44 | ||
| 5 | 8-97309 677-1 | VALVE EXH | 8 | 1602- | BCD | |||
| 334 | 8-97245 232-2 | GEAR IDLE,FRT | 1 | 1602- | A | Z=52 | ||
| 196 | 8-97245 684-1 | RING SNAP | 2 | 1602- | A | |||
| 87 | 8-98224 626-0 | BOLT ROCKER SHAFT | 14 | 1602- | BC | 00.738 (D) M6X2 5 HEX SOCKET | ||
| 68 | 8-94433 247-0 | SPRING VLV | 8 | 1602- | A | H=48 NATURAL | ||
| 2 | 8-97328 642-9 | CAMSHAFT INL | 1 | 1602- | D | |||
| 83 | 0-91111 508-0 | NUT ADJ SCREW,LK | 8 | 1602- | A | 00 . 777 M8 | ||
| 349 | 8-97312 328-0 | PIVOT CHAIN LEVER | 1 | 1602- | BCD | |||
| 2 | 8-98228 489-2 | CAMSHAFT INL | 1 | 1602- | BC | |||
| 4 | 8-97309 675-1 | VALVE INL | 8 | 1602- | BCD | |||
| 107 | 8-97943 224-0 | SHAFT IDLE GEAR | 1 | 1602- | A | (C) | ||
| 114 | 0-28061 060-0 | BOLT IDLE GEAR | 2 | 1602- | BCD | (B) M10X60 FLANGE | ||
| 333 | 8-97240 018-2 | GEAR IDLE,MAIN | 1 | 1602- | A | Z=52 | ||
| 53 | 8-97036 197-0 | SHAFT ROCKER ARM | 1 | 1602- | A | |||
| 55 | 9-12626 005-0 | PLUG ROCKER SHAFT END | 2 | 1602- | A | |||
| 14 | 9-08000 718-0 | KEY CM/SHF | 1 | 1602- | A | 8960 | ||
| 85 | 8-94433 304-0 | BOLT BRKT | 2 | 1602- | A | (A) M8X15,M10X60 L=82 | ||
| 45 | 5-12519 002-1 | WASHER GEAR CAM | 1 | 1602- | A | ID=13 OD=3 6 | ||
| 44 | 9-05820 630-0 | BOLT | 1 | 1602- | A | (B) M6X3 0 HEX SOCKET | ||
| 84 | 8-94152 345-1 | BRACKET ROCKER SHAFT,INTER | 4 | 1602- | A | |||
| 78 | 8-94152 344-0 | ARM ROCKER | 8 | 1602- | A | (B) | ||
| 11 | 8-94433 407-0 | BOLT THRUST PLATE TO C/BL | 1 | 1602- | A | M12X47 | ||
| 166 | 0-58330 616-0 | BOLT SPROCKET TO LAYSHAFT | 6 | 1602- | BCD | M6X16 HEX SOCKET | ||
| 252 | 8-97312 316-1 | FLANGE IDLE SHAFT | 1 | 1602- | BCD | (A) | ||
| 226 | 8-98204 889-0 | SPRING CMPR,ROCKER ARM | 8 | 1602- | BC | |||
| 72 | 8-97328 647-0 | SEAL VLV GUIDE | 16 | 1602- | BCD | |||
| 72 | 8-97120 307-0 | SEAL VLV GUIDE | 8 | 1602- | A | |||
| 300 | 8-98119 278-1 | LEVER TENSION,TIMING CHAIN | 1 | 1602- | BCD | |||
| 112 | 8-98021 053-3 | GEAR IDLE | 1 | 1602- | D | (B) Z=35 | ||
| 68 | 8-97311 669-0 | SPRING VLV | 16 | 1602- | BCD | H=49 NATURAL | ||
| 112 | 8-98233 470-1 | GEAR IDLE | 1 | 1602- | BC | (F) Z= 8 0 | ||
| 107 | 8-97312 315-2 | SHAFT IDLE GEAR | 1 | 1602- | BCD | (B) | ||
| 86 | 9-09164 010-0 | WASHER ROCKER ARM FIX | 4 | 1602- | A | ID=10.5 | ||
| 348 | 8-97312 423-2 | NUT SPROCKET | 1 | 1602- | BCD | M14 FLANGE | ||
| 362 | 8-98233 620-0 | PLATE | 6 | 1602- | BC | |||
| 106 | 5-12519 002-1 | WASHER IDLE GEAR SHAFT | 1 | 1602- | A | 00.738 ID=13 OD=3 6 | ||
| 335 | 8-97245 231-1 | GEAR IDLE,RR | 1 | 1602- | A | Z=52 | ||
| 89 | 8-94438 305-1 | TAPPET VLV | 8 | 1602- | A | |||
| 87 | 8-94433 302-0 | BOLT ROCKER SHAFT | 1 | 1602- | A | (C) M10X60 | ||
| 44 | 0-28050 816-0 | BOLT | 2 | 1602- | A | 02 .343 (A) | ||
| 53 | 8-97364 809-2 | SHAFT ROCKER ARM | 4 | 1602- | D | INLET | ||
| 101 | 8-97223 999-0 | BOLT THRUST COLLAR | 2 | 1602- | A | M8X53 FLANGE | ||
| 3 | 8-97328 644-9 | CAMSHAFT EXH | 1 | 1602- | D | |||
| 85 | 8-94437 493-1 | BOLT BRKT | 1 | 1602- | A | (B) M8X37 & M10X60 L=104 | ||
| 88 | 8-97378 496-0 | ROD PUSH | 8 | 1602- | A | |||
| 81 | 8-94152 283-1 | SCREW ADJ,ROCKER ARM | 8 | 1602- | A | (B) M8 L=30 | ||
| 71 | 8-97311 668-0 | SEAT SPR | 16 | 1602- | BCD | (B) OD=29.5 | ||
| 198 | 8-98173 188-0 | GUIDE TIMING CHAIN | 1 | 1602- | BCD | |||
| 252 | 8-97312 323-1 | FLANGE IDLE SHAFT | 2 | 1602- | D | (B) | ||
| 252 | 8-97312 323-1 | FLANGE IDLE SHAFT | 1 | 1602- | BC | (B) | ||
| 4 | 8-94464 921-2 | VALVE INL | 4 | 1602- | A | |||
| 66 | 8-98147 945-0 | CAP VLV STEM END | 16 | 1602- | BCD | |||
| 5 | 8-98277 383-0 | VALVE EXH | 4 | 1602- | A | |||
| 87 | 0-58330 825-0 | BOLT ROCKER SHAFT | 8 | 1602- | D | (B) M8X2 5 HEX SOCKET | ||
| 56 | 9-09180 019-0 | RING SNAP,ROCKER ARM | 2 | 1602- | A | (B) ID=17.5 | ||
| 1 | 8-97287 657-1 | CAMSHAFT | 1 | 1602- | A | |||
| 133 | 8-97312 336-0 | GASKET CHAIN TENSIONER | 1 | 1602- | BCD | |||
| 109 | 8-97943 225-0 | SHAFT IDLE GEAR | 1 | 1602- | A | |||
| 114 | 0-28161 260-0 | BOLT IDLE GEAR | 1 | 1602- | BC | (A) M12X6 0 FLANGE | ||
| 185 | 8-98258 885-0 | TENSIONER CHAIN | 1 | 1602- | BC | |||
| 71 | 8-97144 584-0 | SEAT SPR | 16 | 1602- | BCD | (A) OD=31 | ||
| 107 | 8-97312 322-1 | SHAFT IDLE GEAR | 1 | 1602- | D | (A) | ||
| 347 | 8-97312 330-1 | SPROCKET I/PUMP | 1 | 1602- | D | |||
| 114 | 8-98176 233-0 | BOLT IDLE GEAR | 1 | 1602- | BC | 05 . 506 (C) M12X75 FLANGE | ||
| 346 | 0-41010 618-0 | STUD CHAIN | 2 | 1602- | BCD | 01.062 M6X18 L=2 7 | ||
| 53 | 8-97364 811-2 | SHAFT ROCKER ARM | 4 | 1602- | D | EXHAUST | ||
| 54 | 8-94341 906-0 | WASHER ROCKER SPR | 6 | 1602- | A | ID=19.1 OD=23 |
