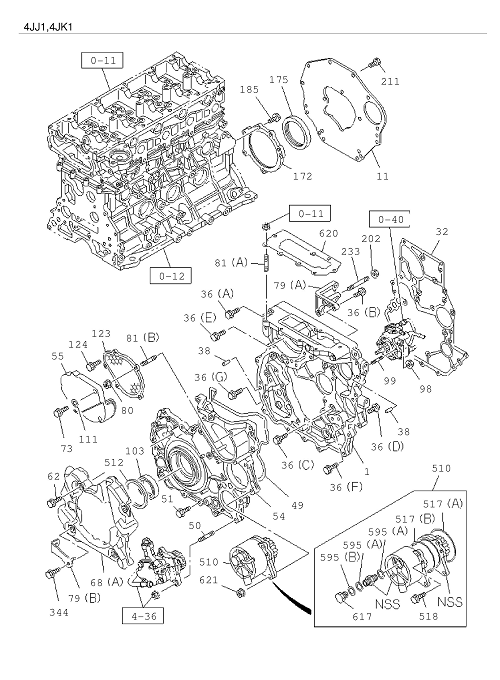

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 11 | 8-98132 021-0 | PLATE RR,C/BL | 1 | 1602- | CD | |||
| 36 | 0-28050 835-0 | BOLT GEAR CASE | 1 | 1602- | BCD | 03.162 (E) M8X35 FLANGE | ||
| 36 | 0-28650 830-0 | BOLT GEAR CASE | 3 | 1602- | BCD | 03 .403 (B) M8X30 FLANGE | ||
| 98 | 0-91180 208-0 | NUT STUD,INJ PUMP | 2 | 1602- | BCD | 01.540 M8 FLANGE | ||
| 68 | 8-97943 086-0 | COVER ASM GEAR CASE COVER | 1 | 1602- | R | A | (B) | |
| 38 | 8-97135 423-0 | PIN GEAR CASE COVER | 2 | 1602- | A | 04.510 OD=10 L=20 | ||
| 32 | 8-97312 221-2 | GASKET GEAR CASE TO C/BL | 1 | 1602- | D | |||
| 172 | 8-97379 826-0 | RETAINER CR/SHF | 1 | 1602- | BCD | |||
| 32 | 8-97129 426-1 | GASKET GEAR CASE TO C/BL | 1 | 1602- | A | |||
| 38 | 9-08151 020-0 | PIN GEAR CASE COVER | 2 | 1602- | BCD | 00. 669 OD=10 L=20 | ||
| 512 | 8-97373 716-0 | RUBBER SPACE | 1 | 1602- | BCD | |||
| 79 | 8-98107 106-0 | BRACKET GEAR CASE COVER | 1 | 1602- | BCD | |||
| 36 | 0-28050 816-0 | BOLT GEAR CASE | 1 | 1602- | BCD | 02.343 (C) M8X16 FLANGE | ||
| 73 | 0-28050 612-0 | BOLT COVER FIX | 2 | 1602- | BCD | 03.162 M6X12 FLANGE | ||
| 103 | 8-97943 951-0 | SEAL OIL,CR/SHF,FRT | 1 | 1602- | BCD | |||
| 50 | 8-97354 808-2 | STUD | 5 | 1602- | BCD | (A) M8X27,M8X14 L=64.5 | ||
| 15 | 5-09000 227-0 | BOLT RR PLATE TO C/BL | 3 | 1602- | A | M12X25 | ||
| 68 | 8-98171 756-4 | COVER ASM GEAR CASE COVER | 1 | 1602- | D | (A) | ||
| 56 | 8-97287 694-0 | GASKET GEAR CASE TO COVER | 1 | 1602- | A | |||
| 68 | 8-98228 636-0 | COVER ASM GEAR CASE COVER | 1 | 1602- | C | (A) | ||
| 73 | 0-28050 616-0 | BOLT COVER FIX | 5 | 1602- | A | 09. 242 M6X16 FLANGE | ||
| 595 | 5-19679 003-0 | GASKET VLV | 1 | 1602- | BCD | 03.280 (B) ID=12 OD=24 | ||
| 11 | 8-98162 657-1 | PLATE RR,C/BL | 1 | 1602- | B | M/T MUA 5 SPEED 5H(MWQ) | ||
| 54 | 8-98228 336-1 | COVER GEAR CASE | 1 | 1602- | BCD | |||
| 62 | 0-28650 620-0 | BOLT COVER | 4 | 1602- | B | EURO1 SPECIFICATION<NT1 ATION<NT2 >,EURO4 SPECIF 03.162 M6X2 0 FLANGE | ||
| 60 | 8-94130 055-1 | BOLT COVER TO CASE | 1 | 1602- | A | 01.252 (D) M8X58 FLANGE | ||
| 1 | 8-98217 735-0 | CASE TIMING GEAR | 1 | 1602- | BC | |||
| 617 | 8-97376 402-0 | BOLT CHECK VLV | 1 | 1602- | BCD | |||
| 233 | 8-97367 083-0 | STUD BRKT | 1 | 1602- | BCD | 03.275 M8X71 L=83 | ||
| 49 | 8-97945 298-0 | GASKET GEAR CASE TO COVER | 1 | 1602- | BCD | |||
| 60 | 0-58331 255-0 | BOLT COVER TO CASE | 1 | 1602- | A | (C) M12X55 HEX SOCKET | ||
| 57 | 8-97353 706-2 | COVER TIMING CHECK HOLE | 1 | 1602- | A | (B) | ||
| 72 | 5-19389 009-0 | BUSHING SPACER,COVER TO COVER | 3 | 1602- | L | A | (A) | |
| 111 | 0-91614 806-0 | WASHER PL | 2 | 1602- | BCD | ID= 6.4 OD=22 | ||
| 620 | 8-97328 828-2 | GASKET GEAR CASE | 1 | 1602- | BCD | GRADE A T=1.40 1-NOTCH | ||
| 36 | 0-28050 860-0 | BOLT GEAR CASE | 1 | 1602- | BCD | 04.686 (A) M8X6 0 FLANGE | ||
| 60 | 0-50540 870-0 | BOLT COVER TO CASE | 6 | 1602- | A | (B) M8X70 W/LK WASHER | ||
| 620 | 8-97331 632-2 | GASKET GEAR CASE | 1 | 1602- | BCD | GRADE C T=1 . 50 3-NOTCH | ||
| 36 | 0-28650 825-0 | BOLT GEAR CASE | 16 | 1602- | BC | 06 .216 (G) M8X2 5 FLANGE | ||
| 621 | 0-91180 208-0 | NUT VAC PUMP | 3 | 1602- | BCD | 01.540 M8 FLANGE | ||
| 60 | 0-28050 830-0 | BOLT COVER TO CASE | 8 | 1602- | A | (A) M8X3 0 FLANGE | ||
| 518 | 8-97184 180-0 | BOLT VAC PUMP | 3 | 1602- | BCD | |||
| 595 | 5-19679 002-0 | GASKET VLV | 2 | 1602- | BCD | 03.280 (A) ID=18 OD=24 | ||
| 36 | 0-50540 820-0 | BOLT GEAR CASE | 6 | 1602- | A | (H) M8X2 0 W/LK WASHER | ||
| 36 | 0-28050 845-0 | BOLT GEAR CASE | 2 | 1602- | BCD | 09.173 (F) M8X45 FLANGE | ||
| 55 | 8-97375 190-1 | COVER NOISE SHIELD | 1 | 1602- | BCD | |||
| 62 | 0-28650 620-0 | BOLT COVER | 4 | 1602- | CD | 03.162 M6X2 0 FLANGE | ||
| 36 | 0-28050 820-0 | BOLT GEAR CASE | 1 | 1602- | D | 04.338 (D) M8X2 0 FLANGE | ||
| 11 | 8-98132 021-0 | PLATE RR,C/BL | 1 | 1602- | B | A/T 5 SPEED-AISIN(MA1) | ||
| 69 | 8-97329 009-1 | SEAL RUBBER,COVER TO COVER | 1 | 1602- | L | A | (A) | |
| 51 | 8-97354 697-1 | BOLT GEAR CASE COVER | 14 | 1602- | BCD | M6X12 | ||
| 185 | 0-28650 825-0 | BOLT RET TO C/BL | 5 | 1602- | BCD | 06.216 M8X2 5 FLANGE | ||
| 123 | 8-97371 720-1 | COVER TIMING,LWR | 1 | 1602- | BCD | |||
| 81 | 0-49140 830-0 | STUD GEAR CASE COVER FIX | 2 | 1602- | BCD | 00.413 (A) M8X30 L=48 | ||
| 72 | 8-97914 630-1 | BUSHING SPACER,COVER TO COVER | 3 | 1602- | R | A | (B) | |
| 36 | 0-50540 845-0 | BOLT GEAR CASE | 2 | 1602- | A | 03.704 (F) M8X45 W/LK WASHER | ||
| 510 | 8-98251 765-0 | PUMP ASM VACUUM | 1 | 1602- | BCD | |||
| 71 | 8-97914 631-0 | RUBBER MTG,COVER | 3 | 1602- | R | A | (B) | |
| 211 | 8-97916 324-1 | BOLT HSG | 3 | 1602- | BCD | 00.683 M12X25 | ||
| 32 | 8-98228 292-0 | GASKET GEAR CASE TO C/BL | 1 | 1602- | BC | |||
| 54 | 8-97306 431-2 | COVER GEAR CASE | 1 | 1602- | A | |||
| 69 | 8-97306 548-1 | SEAL RUBBER,COVER TO COVER | 1 | 1602- | R | A | (B) | |
| 58 | 0-28050 612-0 | BOLT CHECK HOLE COVER | 6 | 1602- | A | 03.162 M6X12 FLANGE | ||
| 1 | 8-98186 648-0 | CASE TIMING GEAR | 1 | 1602- | D | |||
| 175 | 8-97071 561-1 | SEAL OIL,CR/SHF,RR | 1 | 1602- | ABCD | ID=95 OD=118 | ||
| 517 | 0-95690 271-0 | GASKET VAC PUMP | 1 | 1602- | BCD | (A) | ||
| 202 | 0-91180 208-0 | NUT BRKT | 1 | 1602- | BCD | 01.540 M8 FLANGE | ||
| 68 | 8-97255 034-1 | COVER ASM GEAR CASE COVER | 1 | 1602- | L | A | (C) | |
| 80 | 0-91180 206-0 | NUT COVER | 2 | 1602- | BCD | 01.540 M6 FLANGE | ||
| 81 | 0-41010 616-0 | STUD GEAR CASE COVER FIX | 2 | 1602- | BCD | (B) M6X16 L=25 | ||
| 68 | 8-98228 636-0 | COVER ASM GEAR CASE COVER | 1 | 1602- | B | EURO1 SPECIFICATION<NT1 ATION<NT2 >,EURO4 SPECIF (A) | ||
| 50 | 8-98134 221-0 | STUD | 1 | 1602- | BCD | (B) M8X70,M8X14 L=107.5 | ||
| 11 | 8-94437 923-2 | PLATE RR,C/BL | 1 | 1602- | A | |||
| 65 | 8-97118 698-1 | GASKET COVER,TIMING CHECK HOLE | 3 | 1602- | A | |||
| 620 | 8-97331 631-2 | GASKET GEAR CASE | 1 | 1602- | BCD | GRADE B T=1.45 2-NOTCH | ||
| 36 | 0-28650 825-0 | BOLT GEAR CASE | 15 | 1602- | D | 06 .216 (G) M8X2 5 FLANGE | ||
| 517 | 8-98251 768-0 | GASKET VAC PUMP | 1 | 1602- | BCD | (B) | ||
| 99 | 0-49140 830-0 | STUD INJ PUMP | 2 | 1602- | BCD | 00.413 M8X30 L=48 | ||
| 57 | 5-11321 009-0 | COVER TIMING CHECK HOLE | 2 | 1602- | A | (A) | ||
| 71 | 5-19389 002-0 | RUBBER MTG,COVER | 3 | 1602- | L | A | (A) | |
| 124 | 0-28050 616-0 | BOLT TIMING COVER | 3 | 1602- | BCD | 09. 242 M6X16 FLANGE | ||
| 33 | 8-94109 707-0 | GASKET BRKT TO CASE | 1 | 1602- | A | |||
| 1 | 8-97306 429-1 | CASE TIMING GEAR | 1 | 1602- | A | |||
| 103 | 8-97351 704-0 | SEAL OIL,CR/SHF,FRT | 1 | 1602- | A |
