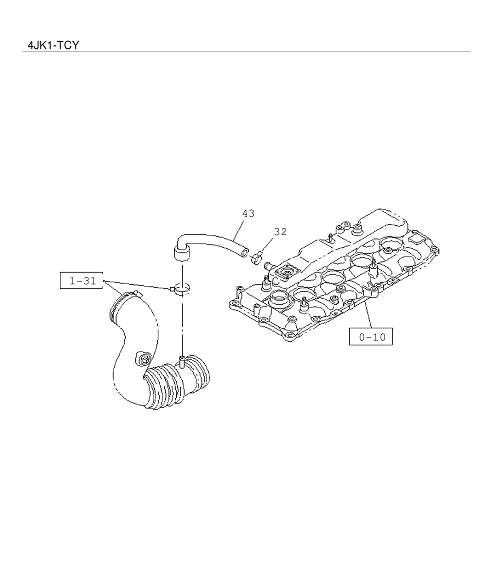

0-28 | VENTILATION SYSTEM
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | 0-36220 408-0 | SCREW VENTILATOR TO HD COVER | 4 | 1602- | A | 00.662 M4X8 W/LK WASHER | ||
| 32 | 8-94121 113-0 | CLIP VENT HOSE | 2 | 1602- | A | 03 .265 ID=2 0 . 4 | ||
| 32 | 8-98133 607-0 | CLIP VENT HOSE | 1 | 1602- | D | ID=2 0.8 | ||
| 43 | 8-98152 307-2 | HOSE PCV | 1 | 1602- | D | |||
| 52 | 8-97306 435-2 | HOSE PCV | 1 | 1602- | A | |||
| 65 | 8-94250 615-1 | PIPE BREATHER | 1 | 1602- | A | |||
| 12 | 8-97119 887-0 | VENTILATOR AIR | 1 | 1602- | A | .413194444 |
