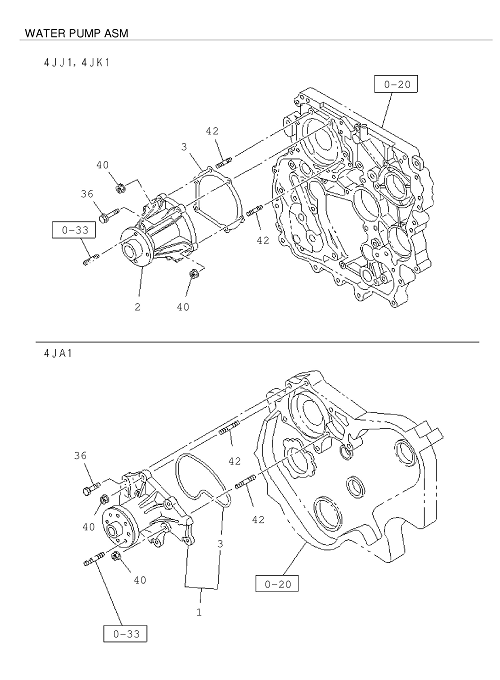

0-30 | WATER PUMP AND CORROSION RESISTOR
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | 8-97105 012-5 | PUMP ASM WATER,W/GASKET | 1 | 1602- | A | |||

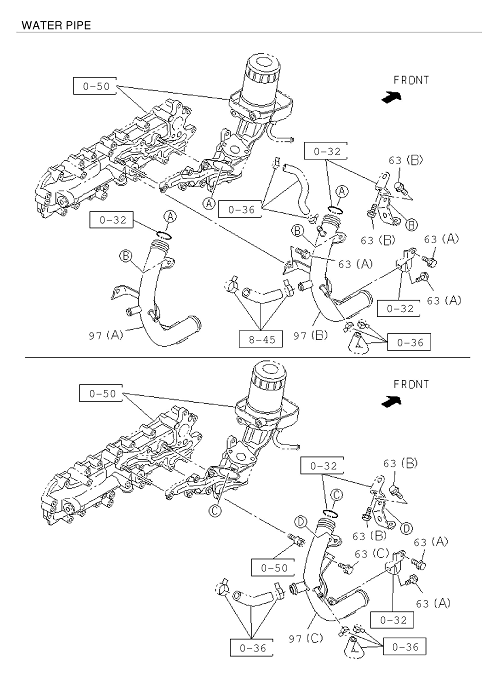

| 97 | 8-98228 423-0 | PIPE WATER | 1 | 1602- | C | EMISSION SYSTEM R15-04<K75>,EURO1 FICATION<NT1>,EURO2 SPECIFICATION (A) | ||
| 97 | 8-98228 422-0 | PIPE WATER | 1 | 1602- | B | COOLER W/FRESH AIR(C65) (A) | ||
| 97 | 8-98181 124-0 | PIPE WATER | 1 | 1602- | D | (B) | ||
| 97 | 8-98228 423-0 | PIPE WATER | 1 | 1602- | B | HEATER & DEFROSTER(C42),AIR CONDI MANUAL CONT(C60) ,AIR CONDITIONER ATIC CONT(C61) (A) | ||
| 63 | 0-28050 812-0 | BOLT INL PIPE | 1 | 1602- | D | 02.343 (C) M8X12 FLANGE | ||
| 63 | 0-28050 816-0 | BOLT INL PIPE | 2 | 1602- | BCD | 02 . 343 (A) M8X16 FLANGE | ||
| 36 | 0-28050 850-0 | BOLT WATER PUMP TO C/BL | 4 | 1602- | BCD | M8X50 FLANGE | ||
| 2 | 8-97312 147-4 | PUMP ASM WATER | 1 | 1602- | BCD | |||
| 155 | 0-91180 208-0 | NUT PIPE | 2 | 1602- | BC | 01.540 M8 FLANGE | ||
| 42 | 0-41010 822-0 | STUD WATER PUMP | 2 | 1602- | A | M8X22 L=34 | ||
| 22 | 0-95690 226-0 | GASKET | 1 | 1602- | BC | 1159 | ||
| 42 | 0-49140 822-0 | STUD WATER PUMP | 2 | 1602- | BCD | M8X22 L=40 | ||
| 40 | 0-91180 208-0 | NUT WATER PUMP | 2 | 1602- | BCD | 01.540 M8 FLANGE | ||
| 63 | 0-28050 880-0 | BOLT INL PIPE | 1 | 1602- | BC | 01.252 (D) M8X8 0 FLANGE | ||
| 3 | 8-97312 156-0 | GASKET PUMP TO C/BL | 1 | 1602- | BCD | |||
| 63 | 0-28050 820-0 | BOLT INL PIPE | 2 | 1602- | D | 04 . 338 (B) M8X2 0 FLANGE | ||
| 99 | 8-98233 994-0 | GASKET WATER PIPE | 1 | 1602- | BC | |||
| 36 | 5-09000 084-1 | BOLT WATER PUMP TO C/BL | 5 | 1602- | A | 03 . 330 M8X55 W/LK WASHER | ||
| 97 | 8-98228 420-1 | PIPE WATER | 1 | 1602- | C | EURO4 SPECIFICATION<NT4 > (A) | ||
| 3 | 8-94178 081-1 | GASKET PUMP TO C/BL | 1 | 1602- | A | |||
| 40 | 0-91180 108-0 | NUT WATER PUMP | 2 | 1602- | A | 01.062 M8 FLANGE |
