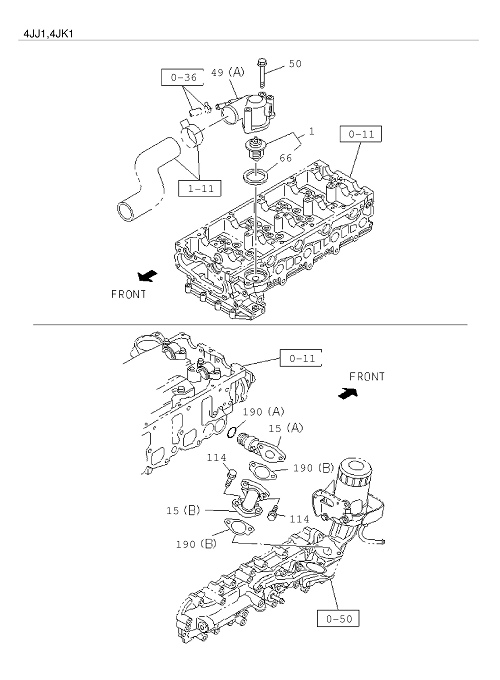

0-31 | THERMOSTAT AND HOUSING
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | 8-94478 870-1 | PIPE HSG TO HTR | 1 | 1602- | A | |||
| 54 | 8-97367 983-1 | CLIP THERMO SWITCH,OUTLET PIPE | 1 | 1602- | A | 01 . 150 ID=12 | ||
| 17 | 8-94125 862-1 | CLIP WATER HOSE | 2 | 1602- | A | ID=2 0.8 | ||
| 190 | 0-95690 226-0 | GASKET BYPASS PIPE | 1 | 1602- | D | (A) | ||
| 49 | 8-97352 105-0 | PIPE WATER OUTLET | 1 | 1602- | A | |||
| 49 | 8-97355 456-7 | PIPE WATER OUTLET | 1 | 1602- | BCD | |||
| 66 | 8-98114 587-0 | GASKET THERMOSTAT HSG | 1 | 1602- | BCD | |||
| 1 | 8-98017 027-2 | THERMOSTAT | 1 | 1602- | BCD | 85 CELSIUS | ||
| 114 | 0-28650 825-0 | BOLT BYPASS PIPE | 4 | 1602- | D | 06 .216 M8X2 5 FLANGE | ||
| 22 | 8-94478 869-2 | PIPE HTR,RETURN | 1 | 1602- | A | |||
| 66 | 8-97212 537-1 | GASKET THERMOSTAT HSG | 1 | 1602- | A | |||
| 15 | 8-98165 517-1 | PIPE BYPASS | 1 | 1602- | D | (A) | ||
| 15 | 8-98165 518-0 | PIPE BYPASS | 1 | 1602- | D | (B) | ||
| 50 | 0-50640 830-0 | BOLT OUTLET PIPE | 2 | 1602- | A | M8X3 0 W/LK&PL WASHER | ||
| 64 | 8-94365 674-2 | GASKET OUTLET PIPE TO HSG | 1 | 1602- | A | 1252 | ||
| 44 | 8-94479 011-1 | BOLT HSG TO HD | 1 | 1602- | A | (B) M8X28,M8X34 L=69 | ||
| 2 | 8-97372 994-1 | HOUSING THERMOSTAT | 1 | 1602- | A | |||
| 14 | 5-09605 005-0 | PLUG SW | 1 | 1602- | A | EMISSION SYSTEM R15-04<K75 01 .073 PT3/8 | ||
| 190 | 8-98197 538-0 | GASKET BYPASS PIPE | 2 | 1602- | D | (B) | ||
| 15 | 8-94343 211-1 | PIPE BYPASS | 1 | 1602- | A | (C) | ||
| 1 | 8-97361 770-0 | THERMOSTAT | 1 | 1602- | A | 82 CELSIUS | ||
| 50 | 0-28050 880-0 | BOLT OUTLET PIPE | 2 | 1602- | BCD | M8X8 0 FLANGE | ||
| 44 | 0-50540 830-0 | BOLT HSG TO HD | 4 | 1602- | A | 09 . 171 (A) M8X3 0 W/LK WASHER |
