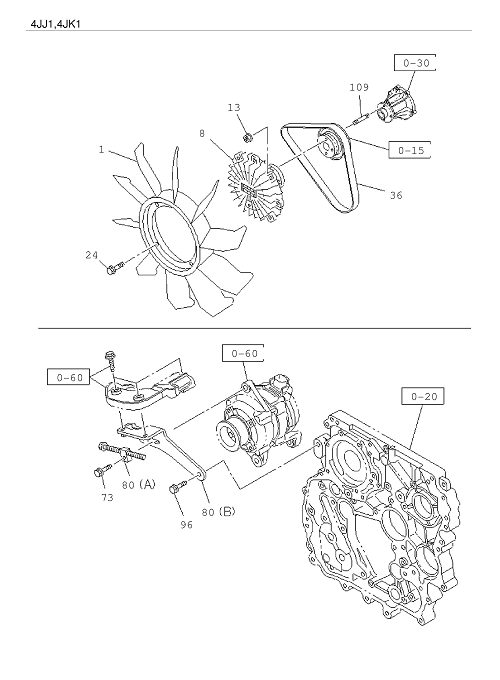

0-33 | FAN AND FAN BELT
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 80 | 8-98132 102-4 | PLATE ADJ | 1 | 1602- | D | (B) | ||
| 96 | 0-28650 820-0 | BOLT ADJ PLATE | 1 | 1602- | D | 01.531 M8X20 FLANGE | ||
| 8 | 8-98119 213-1 | CLUTCH COOLING FAN | 1 | 1602- | BCD | |||
| 14 | 8-98012 835-0 | NUT FAN TO CLU | 4 | 1602- | A | |||
| 175 | 0-91614 708-0 | WASHER PL,ADJ PLATE | 1 | 1602- | A | 02.277 ID= 8.4 OD=22 | ||
| 1 | 8-98162 703-0 | FAN COOLING | 1 | 1602- | BCD | |||
| 71 | 0-50540 825-0 | BOLT ADJ PLATE,GEN | 1 | 1602- | A | 09.008 (A) M8X25 W/LK WASHER | ||
| 71 | 0-28050 840-0 | BOLT ADJ PLATE,GEN | 1 | 1602- | A | 02.277 (B) M8X4 0 FLANGE | ||
| 230 | 8-97921 857-1 | FAN COOLING | 1 | 1602- | A | |||
| 80 | 8-98228 448-0 | PLATE ADJ | 1 | 1602- | BC | (D) | ||
| 36 | 8-98020 247-0 | BELT COOLING FAN | 1 | 1602- | BC | L=1086 MITSUBOSHI | ||
| 8 | 8-97302 291-0 | CLUTCH COOLING FAN | 1 | 1602- | A | |||
| 36 | 8-98132 367-0 | BELT COOLING FAN | 1 | 1602- | D | L=1036 | ||
| 109 | 0-41010 618-0 | STUD FAN CLU | 4 | 1602- | A | M6X18 L=27 | ||
| 36 | 8-97910 219-0 | BELT COOLING FAN | 1 | 1602- | A | L=1027 | ||
| 71 | 0-28650 820-0 | BOLT ADJ PLATE,GEN | 1 | 1602- | D | 01.531 (C) M8X20 FLANGE | ||
| 13 | 8-98049 362-0 | NUT COOLING FAN | 4 | 1602- | BCD | 16 . 320 M6 FLANGE | ||
| 80 | 8-97306 546-0 | PLATE ADJ | 1 | 1602- | A | 02.277 (C) | ||
| 81 | 8-97944 144-1 | PIECE SLIDING | 1 | 1602- | D | |||
| 24 | 0-28650 625-0 | BOLT FAN | 4 | 1602- | BCD | 00. 685 M6X25 FLANGE | ||
| 73 | 0-28650 835-0 | BOLT GEN TO ADJ PLATE | 1 | 1602- | D | 01.060 M8X3 5 FLANGE | ||
| 80 | 8-97944 144-1 | PLATE ADJ | 1 | 1602- | D | (A) | ||
| 147 | 0-28651 020-0 | BOLT BELT TENSIONER | 3 | 1602- | BC | 02.343 M10X2 0 FLANGE | ||
| 144 | 8-98276 119-1 | TENSIONER DRIVE BELT | 1 | 1602- | BC | |||
| 109 | 8-98256 636-0 | STUD FAN CLU | 4 | 1602- | BCD | M6X20 L=31 | ||
| 1 | 8-97318 963-1 | FAN COOLING | 1 | 1602- | A |
