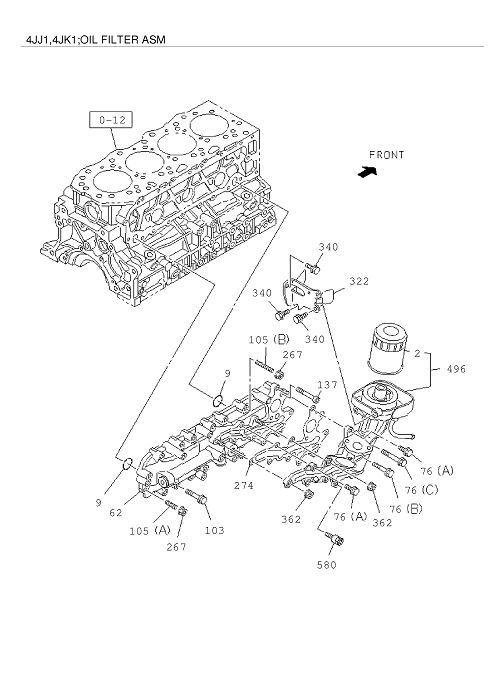

0-50 | OIL COOLER AND OIL FILTER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | 8-97373 137-1 | FILTER & COOLER ASM OIL | 1 | 1602- | A | |||
| 201 | 8-98199 904-0 | PIPE VINYL,OIL DRAIN | 1 | 1602- | BC | EXC. PROVISIONAL PACKAGE SPE | ||
| 76 | 0-28050 860-0 | BOLT OIL FILTER | 1 | 1602- | D | 04.686 (C) M8X60 FLANGE | ||
| 274 | 8-98226 841-0 | GASKET OIL FILTER | 1 | 1602- | BC | |||
| 76 | 0-28050 845-0 | BOLT OIL FILTER | 1 | 1602- | D | 09 . 173 (B) M8X4 5 FLANGE | ||
| 267 | 0-91180 208-0 | NUT OIL COOLER | 2 | 1602- | BCD | 01.540 M8 FLANGE | ||
| 64 | 8-97373 138-0 | BODY OIL FILTER & OIL COOLER | 1 | 1602- | A | |||
| 582 | 8-98235 616-3 | TRAY OIL | 1 | 1602- | BCD | PROVISIONAL PACKAGE SPEC(BCC HIGH RIDE SUSPENSION(7YC) | ||
| 343 | 8-97040 812-0 | CLIP HOSE,OIL DRAIN | 1 | 1602- | BC | IDENTIFICATION LABEL FOR KD< EXC. PROVISIONAL PACKAGE SPE 02.559 (A) ID=16 | ||
| 274 | 8-98124 080-1 | GASKET OIL FILTER | 1 | 1602- | D | |||
| 76 | 0-28050 800-0 | BOLT OIL FILTER | 1 | 1602- | BC | 00.386 (D) M8X100 FLANGE | ||
| 76 | 0-28050 825-0 | BOLT OIL FILTER | 6 | 1602- | D | 03 .275 (A) M8X2 5 FLANGE | ||
| 63 | 8-94450 917-0 | GASKET COOLER TO BRKT | 1 | 1602- | A | |||
| 343 | 8-98074 650-0 | CLIP HOSE,OIL DRAIN | 1 | 1602- | BC | IDENTIFICATION LABEL FOR KD< EXC. PROVISIONAL PACKAGE SPE (C) | ||
| 70 | 8-97914 706-0 | GASKET PLUG,OIL FILTER | 2 | 1602- | A | |||
| 2 | 8-97309 927-0 | ELEMENT OIL FILTER | 1 | 1602- | A | |||
| 469 | 8-98087 965-0 | GASKET OIL COOLER TO C/BL | 1 | 1602- | A | |||
| 496 | 8-98226 423-1 | FILTER ASM OIL | 1 | 1602- | BC | |||
| 340 | 0-28650 840-0 | BOLT BRKT | 1 | 1602- | BC | 00.685 M8X4 0 FLANGE | ||
| 103 | 0-28050 820-0 | BOLT OIL COOLER | 1 | 1602- | BC | 04 .338 (A) M8X2 0 FLANGE | ||
| 374 | 0-41010 825-0 | STUD OIL FILTER | 2 | 1602- | A | 03.275 M8X25 L=3 7 | ||
| 322 | 8-98132 020-1 | BRACKET OIL FILTER | 1 | 1602- | D | |||
| 62 | 8-98226 843-0 | COOLER ASM OIL | 1 | 1602- | C | EMISSION SYSTEM R15-04<K75>, FICATION<NT1>,EURO2 SPECIFIC | ||
| 137 | 0-58330 860-0 | BOLT | 3 | 1602- | D | 00.206 M8X60 HEX SOCKET | ||
| 105 | 0-41010 845-0 | STUD OIL COOLER | 1 | 1602- | D | 01.252 (B) M8X45 L=57 | ||
| 343 | 8-98074 648-0 | CLIP HOSE,OIL DRAIN | 2 | 1602- | BC | IDENTIFICATION LABEL FOR KD< EXC. PROVISIONAL PACKAGE SPE (B) | ||
| 76 | 0-28050 825-0 | BOLT OIL FILTER | 2 | 1602- | BC | 03 .275 (A) M8X2 5 FLANGE | ||
| 62 | 8-98226 843-0 | COOLER ASM OIL | 1 | 1602- | B | |||
| 62 | 8-97319 556-1 | COOLER ASM OIL | 1 | 1602- | A | |||
| 103 | 0-28050 845-0 | BOLT OIL COOLER | 15 | 1602- | D | 09 . 173 (B) M8X4 5 FLANGE | ||
| 462 | 8-97025 737-1 | CLIP HOSE,DRAIN | 1 | 1602- | BC | EXC. PROVISIONAL PACKAGE SPE 04.681 | ||
| 580 | 8-98181 435-0 | ADAPTER | 1 | 1602- | D | |||
| 2 | 8-98165 071-0 | ELEMENT OIL FILTER | 1 | 1602- | BCD | |||
| 103 | 0-28050 845-0 | BOLT OIL COOLER | 13 | 1602- | BC | 09 . 173 (B) M8X4 5 FLANGE | ||

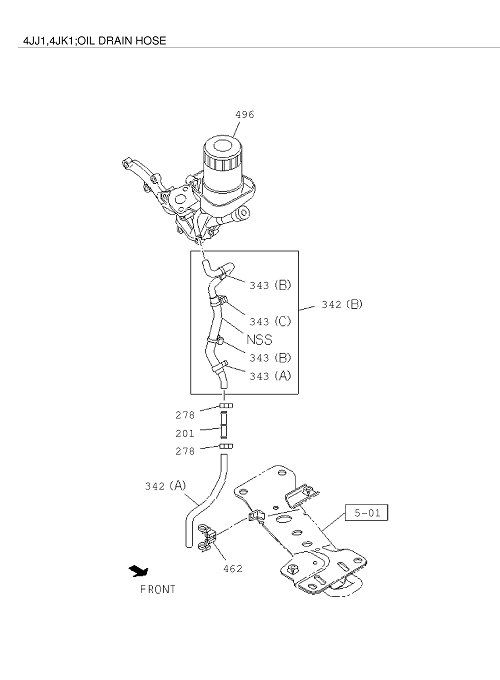

| 342 | 8-98200 230-1 | HOSE OIL DRAIN | 1 | 1602- | BC | IDENTIFICATION LABEL FOR KD< EXC. PROVISIONAL PACKAGE SPE (B) | ||
| 329 | 1-09044 075-1 | BOLT OIL FILTER | 2 | 1602- | A | 01.062 M8X95 FLANGE | ||
| 362 | 0-91180 108-0 | NUT OIL FILTER | 2 | 1602- | A | 01.062 M8 FLANGE | ||
| 342 | 8-98199 910-0 | HOSE OIL DRAIN | 1 | 1602- | BC | EXC. PROVISIONAL PACKAGE SPE (A) | ||
| 582 | 8-98236 507-2 | TRAY OIL | 1 | 1602- | BCD | PROVISIONAL PACKAGE SPEC(BCC EXC. HIGH RIDE SUSPENSION(7Y | ||
| 278 | 8-97173 221-0 | CLAMP RUBBER HOSE | 2 | 1602- | BC | EXC. PROVISIONAL PACKAGE SPE 03 .162 ID=14 | ||
| 62 | 8-98185 691-0 | COOLER ASM OIL | 1 | 1602- | D | |||
| 105 | 0-41010 820-0 | STUD OIL COOLER | 2 | 1602- | BC | 02 . 510 (A) M8X20 L=3 2 | ||
| 340 | 0-28050 816-0 | BOLT BRKT | 3 | 1602- | D | 02 .343 M8X16 FLANGE | ||
| 9 | 9-09566 226-0 | GASKET CENTER BOLT | 2 | 1602- | BCD | 01 . 550 ID=2 6.2 | ||
| 62 | 8-98251 175-0 | COOLER ASM OIL | 1 | 1602- | C | EURO4 SPECIFICATION<NT4 > | ||
| 105 | 0-41010 820-0 | STUD OIL COOLER | 1 | 1602- | D | 02 . 510 (A) M8X20 L=3 2 | ||
| 11 | 8-97288 935-0 | BOLT CENTER | 1 | 1602- | A | |||
| 496 | 8-98186 452-1 | FILTER ASM OIL | 1 | 1602- | D | |||
| 76 | 0-28050 880-0 | BOLT OIL FILTER | 2 | 1602- | BC | 01.252 (E) M8X80 FLANGE | ||
| 362 | 0-91180 208-0 | NUT OIL FILTER | 2 | 1602- | BCD | 01.540 M8 FLANGE | ||
| 9 | 8-97288 938-0 | GASKET CENTER BOLT | 1 | 1602- | A |
