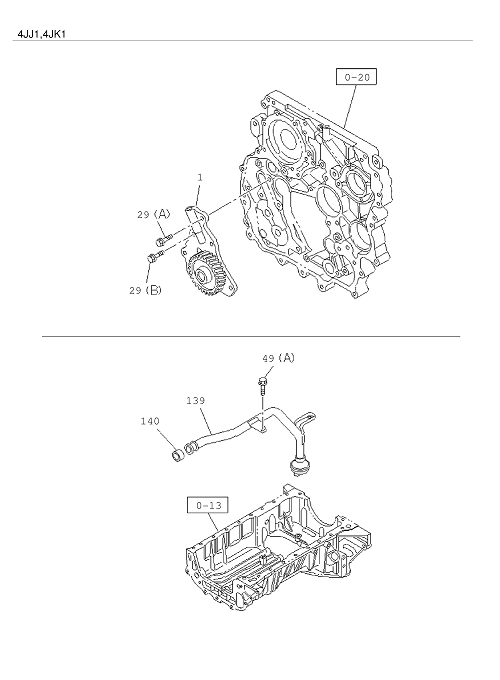

0-51 | OIL PUMP AND OIL STRAINER
DMAX
D-MAX 2016
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | 5-13165 004-0 | SEAT SPR | 1 | 1602- | A | |||
| 29 | 0-28050 830-0 | BOLT OIL PUMP | 4 | 1602- | BCD | 00.206 (B) M8X30 FLANGE | ||
| 49 | 0-28050 816-0 | BOLT STRAINER,OIL PUMP | 2 | 1602- | BCD | 02 .343 (A) M8X16 FLANGE | ||
| 29 | 0-28050 825-0 | BOLT OIL PUMP | 2 | 1602- | A | 03 .275 (C) M8X2 5 FLANGE | ||
| 29 | 0-28050 845-0 | BOLT OIL PUMP | 2 | 1602- | BCD | 09 . 173 (A) M8X45 FLANGE | ||
| 49 | 0-28050 825-0 | BOLT STRAINER,OIL PUMP | 2 | 1602- | A | 03 .275 (B) M8X2 5 FLANGE | ||
| 121 | 8-94235 567-1 | VALVE RELIEF,OIL PUMP | 1 | 1602- | A | 1837 | ||
| 35 | 8-97203 876-0 | COVER OIL PUMP | 1 | 1602- | A | |||
| 1 | 8-98232 624-1 | PUMP ASM OIL | 1 | 1602- | BCD | |||
| 1 | 8-97385 985-0 | PUMP ASM OIL | 1 | 1602- | A | |||
| 140 | 8-97356 150-0 | GASKET OIL STRAINER | 1 | 1602- | BCD | |||
| 45 | 9-08104 030-0 | PIN SPLIT,RELIEF VLV | 1 | 1602- | A | 06 . 022 L=30 | ||
| 49 | 0-28050 835-0 | BOLT STRAINER,OIL PUMP | 2 | 1602- | A | 03.162 (C) M8X35 FLANGE | ||
| 42 | 8-97089 824-0 | STRAINER OIL,OIL PUMP | 1 | 1602- | A | .497916667 | ||
| 5 | 8-97036 834-0 | SPRING COIL | 1 | 1602- | A | |||
| 19 | 8-94384 778-1 | GEAR SET OIL PUMP | 1 | 1602- | A | |||
| 139 | 8-98127 247-0 | PIPE OIL STRAINER | 1 | 1602- | BCD | 4X2 (TFB** *) | ||
| 139 | 8-98132 012-0 | PIPE OIL STRAINER | 1 | 1602- | BCD | 4X4 (TFS***) |
