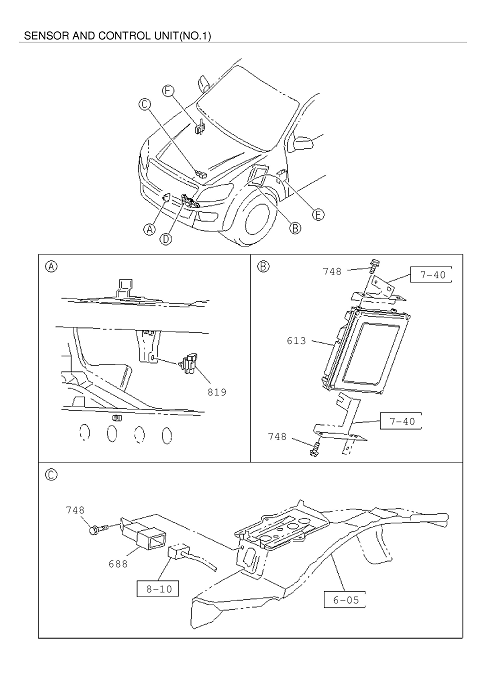

| 613 |
8-98273 845-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>,HIG SPENSION(7YC) |
| 613 |
8-98223 039-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30> |
| 613 |
8-98273 844-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K3 0> |
| 613 |
8-98273 835-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTE PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> |
| 113 |
8-94147 870-0 |
|
CLIP THERMO SWITCH |
1 |
1602- |
|
A |
EURO1 SPECIFICATION<NT1> 04.785 ID= 9.6 |
| 26 |
0-28651 040-0 |
|
BOLT GEN BRKT |
2 |
1602- |
|
D |
03.613 (B) M10X4 0 FLANGE |
| 613 |
8-98223 039-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30> |
| 24 |
0-28650 820-0 |
|
BOLT GEN BRKT |
1 |
1602- |
|
BC |
EXC. IDENTIFICATION LABEL FOR 01.531 (D) M8X2 0 FLANGE |

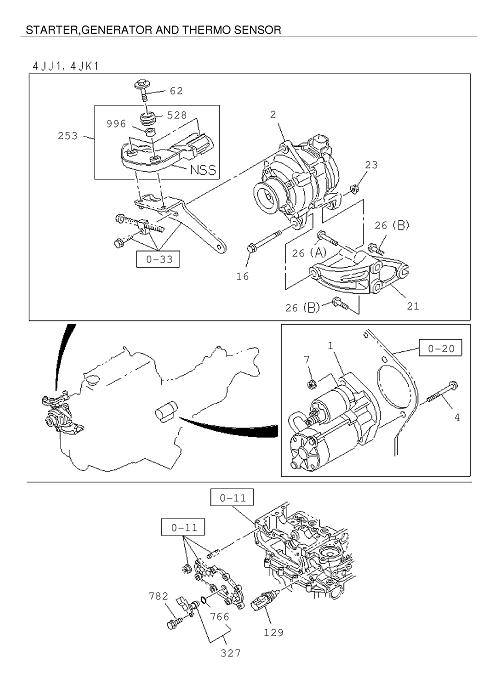

| 1 |
8-98028 199-0 |
|
STARTER ASM |
1 |
1602- |
|
BC |
12V 2.3KW |
| 7 |
0-91180 112-0 |
|
NUT STARTER |
2 |
1602- |
|
ABC |
M12 FLANGE |
| 613 |
8-98223 023-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2 (TFB***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,HIGH RIDE SUSPENSION(7YC) |
| 748 |
0-28650 616-0 |
|
BOLT CONT UNIT |
4 |
1602- |
|
BCD |
02.343 M6X16 FLANGE |
| 21 |
8-98275 351-0 |
|
BRACKET GEN |
1 |
1602- |
|
BC |
|
| 613 |
8-98223 030-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30> |
| 613 |
8-98224 138-3 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC UISE CONT<K30>,HIGH RIDE SUSP ) |

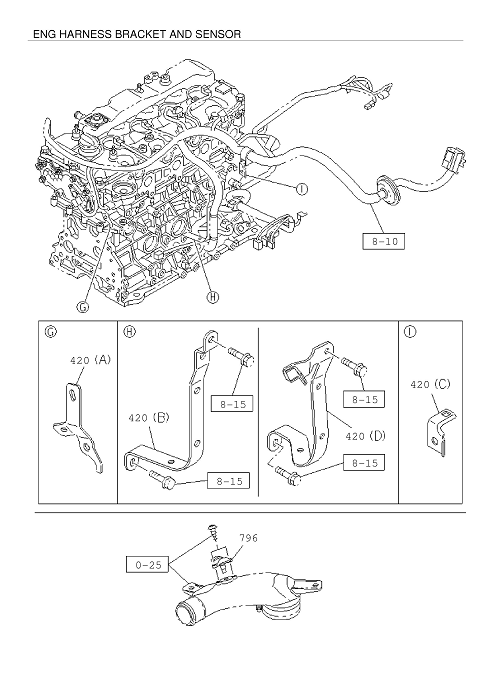

| 420 |
8-98166 379-0 |
|
BRACKET HARNESS |
1 |
1602- |
|
D |
(D) |
| 613 |
8-98304 377-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 1 |
8-98183 655-0 |
|
STARTER ASM |
1 |
1602- |
|
D |
12V 2.3KW |
| 613 |
8-98273 835-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2 (TFB***) M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTE PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) |
| 613 |
8-98268 828-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
A/T 5 SPEED-AISIN(MA1) EURO5 SPECIFICATION<NT5> EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC UISE CONT<K30>,IMMOBILIZER SY |
| 613 |
8-98308 067-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTE PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K3 0> |
| 613 |
8-98273 841-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>,HIG SPENSION(7YC) |
| 613 |
8-98268 826-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
4X2(TFB***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC UISE CONT<K30>,IMMOBILIZER SY HIGH RIDE SUSPENSION(7YC) |
| 26 |
0-28051 060-0 |
|
BOLT GEN BRKT |
1 |
1602- |
|
D |
00. 685 (A) M10X6 0 FLANGE |
| 13 |
0-28650 820-0 |
|
BOLT BRKT |
1 |
1602- |
|
BC |
PROVISIONAL PACKAGE SPEC(BCC) IDENTIFICATION LABEL FOR KD<6 01.531 (B) M8X2 0 FLANGE |
| 327 |
8-98019 024-0 |
|
SENSOR CAMSHAFT POSITION |
1 |
1602- |
|
BC |
.502777778 |
| 395 |
8-98049 362-0 |
|
NUT BRKT FIX |
1 |
1602- |
|
A |
16 . 320 M6 FLANGE |
| 613 |
8-98304 391-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 26 |
0-28051 045-0 |
|
BOLT GEN BRKT |
1 |
1602- |
|
BC |
00. 685 (C) M10X4 5 FLANGE |
| 613 |
8-98304 391-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X4 (TFS***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 613 |
8-98223 022-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START > |
| 112 |
0-91111 516-0 |
|
NUT SWITCH BRKT |
1 |
1602- |
|
A |
EURO1 SPECIFICATION<NT1> 00.785 M16 |
| 613 |
8-98273 844-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K3 0> |
| 613 |
8-98224 142-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
A/T 5 SPEED-AISIN(MA1) AUTO CRUISE CONT<K3 0 > EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC |
| 613 |
8-98320 105-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START >,IMMOBILIZER SYSTEM<7KC> |
| 21 |
8-98169 084-0 |
|
BRACKET GEN |
1 |
1602- |
|
D |
|
| 83 |
8-94235 691-0 |
|
THERMOMETER UNIT |
1 |
1602- |
|
A |
DENSO |
| 613 |
8-98223 040-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 16 |
0-28056 013-0 |
|
BOLT GEN |
1 |
1602- |
|
A |
M10X13 0 FLANGE |
| 83 |
8-94237 861-0 |
|
THERMOMETER UNIT |
1 |
1602- |
|
A |
YAZAKI |
| 613 |
8-98223 040-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 819 |
8-98008 687-0 |
|
SENSOR MASS AIR FLOW (MAF) |
1 |
1602- |
|
ABCD |
ELECTRO LUMINESCENT INSTRUMEN STER<UCA> |
| 613 |
8-98223 020-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START > |
| 613 |
8-98224 139-3 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
4X4(TFS***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC UISE CONT<K3 0 > |
| 613 |
8-98304 375-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 613 |
8-98304 376-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTE PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K3 0> |
| 613 |
8-98223 041-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC (BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC>,HIGH RIDE SUSPENSION |
| 613 |
8-98224 141-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
A/T 5 SPEED-AISIN(MA1) EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC UISE CONT<K30> |
| 2 |
8-97245 850-2 |
|
GENERATOR ASM |
1 |
1602- |
|
A |
12V 60A |
| 897 |
8-98221 054-4 |
|
DRM |
1 |
1602- |
|
BC |
|
| 613 |
8-98224 140-3 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
4X4(TFS***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K3 0 > EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC |
| 153 |
0-28050 610-0 |
|
BOLT BRKT FIX |
1 |
1602- |
|
A |
03.671 M6X10 FLANGE |
| 613 |
8-98223 026-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30> |
| 613 |
8-98223 065-8 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4 > EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC>,HIGH RIDE SUSPENSION |
| 13 |
0-28050 825-0 |
|
BOLT BRKT |
1 |
1602- |
|
BC |
PROVISIONAL PACKAGE SPEC (BCC) IDENTIFICATION LABEL FOR KD<6 03.275 (A) M8X2 5 FLANGE |

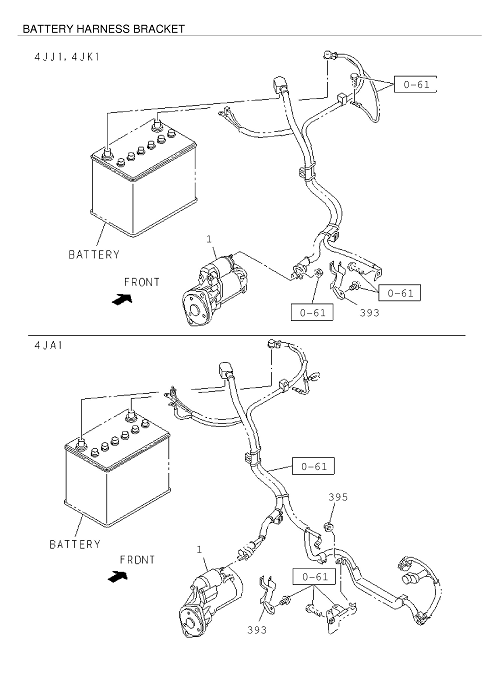

| 393 |
8-98102 992-4 |
|
BRACKET HARNESS TO BODY |
1 |
1602- |
|
ABCD |
|
| 153 |
8-98043 527-0 |
|
BOLT BRKT FIX |
1 |
1602- |
|
BCD |
03.604 M6X10 FLANGE |
| 613 |
8-98223 030-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2 (TFB***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30> |
| 867 |
0-28650 616-0 |
|
BOLT |
1 |
1602- |
|
BC |
02.343 M6X16 FLANGE |
| 613 |
8-98223 038-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 528 |
8-98158 298-0 |
|
BUSHING |
3 |
1602- |
|
D |
|
| 420 |
8-98132 062-1 |
|
BRACKET HARNESS |
1 |
1602- |
|
D |
(A) |
| 24 |
0-50541 070-0 |
|
BOLT GEN BRKT |
2 |
1602- |
|
A |
17.185 (B) M10X70 W/LK WASHER |

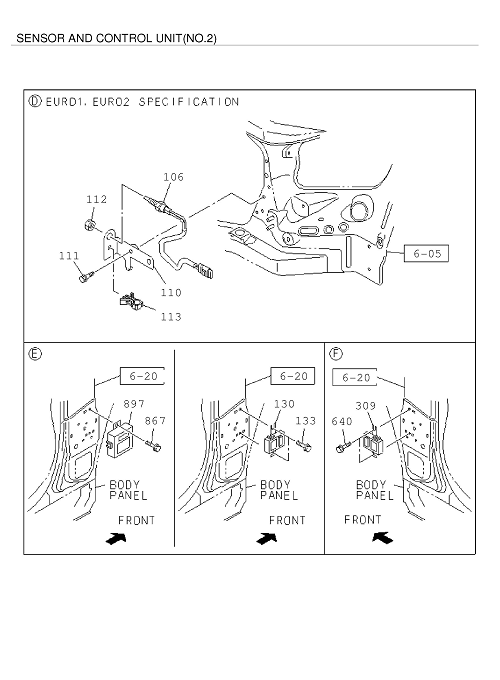

| 130 |
8-98205 418-1 |
|
CONTROLLER EGR |
1 |
1602- |
|
A |
EURO1 SPECIFICATION<NT1> |
| 110 |
8-98205 050-0 |
|
BRACKET THERMO SW CONNECTOR |
1 |
1602- |
|
A |
EURO1 SPECIFICATION<NT1> |
| 613 |
8-98223 036-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
a/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC (BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 613 |
8-98304 374-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K3 0> |
| 16 |
8-97226 470-1 |
|
BOLT GEN |
1 |
1602- |
|
D |
M10X12 5 FLANGE |
| 613 |
8-98223 044-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 613 |
8-98308 067-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTE PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K3 0> |
| 613 |
8-98304 390-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC (BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 996 |
8-98158 299-0 |
|
MOUNT PROTECTOR |
3 |
1602- |
|
D |
|
| 24 |
0-50541 035-0 |
|
BOLT GEN BRKT |
1 |
1602- |
|
A |
09.171 (A) M10X35 W/LK WASHER |
| 748 |
0-28650 616-0 |
|
BOLT CONT UNIT |
1 |
1602- |
|
D |
02.343 M6X16 FLANGE |
| 26 |
0-28051 035-0 |
|
BOLT GEN BRKT |
1 |
1602- |
|
BC |
04.510 (E) M10X3 5 FLANGE |
| 24 |
0-28050 825-0 |
|
BOLT GEN BRKT |
1 |
1602- |
|
BC |
EXC. IDENTIFICATION LABEL FOR 03.275 (C) M8X2 5 FLANGE |
| 21 |
8-94437 276-2 |
|
BRACKET GEN |
1 |
1602- |
|
A |
|
| 16 |
8-98236 407-0 |
|
BOLT GEN |
1 |
1602- |
|
BC |
M10X95 FLANGE |
| 782 |
0-28050 616-0 |
|
BOLT SENSOR |
1 |
1602- |
|
BCD |
09. 242 M6X16 FLANGE |
| 129 |
8-98260 257-0 |
|
SENSOR GLOW PLUG,THERMO |
1 |
1602- |
|
BCD |
NISHIDA |
| 420 |
8-98179 101-0 |
|
BRACKET HARNESS |
1 |
1602- |
|
BC |
(C) |
| 613 |
8-98223 045-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC>,HIGH RIDE SUSPENSION |
| 2 |
8-98229 071-1 |
|
GENERATOR ASM |
1 |
1602- |
|
D |
12V 90A |
| 26 |
0-28051 025-0 |
|
BOLT GEN BRKT |
1 |
1602- |
|
BC |
09.171 (D) M10X2 5 FLANGE |
| 613 |
8-98297 162-0 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START >,IMMOBILIZER SYSTEM<7KC> |
| 935 |
8-97383 407-0 |
|
BOLT PROTECTOR |
3 |
1602- |
|
D |
2277 |
| 613 |
8-98224 140-3 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
4X2 (TFB***) M/T AISIN 6 SPEED(RNU) AUTO CRUISE CONT<K3 0 > EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC(BC |
| 613 |
8-98223 035-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
A/T 5 SPEED-AISIN(MA1) PROVISIONAL PACKAGE SPEC (BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30> |
| 613 |
8-98273 840-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC (BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. AUTO CRUISE CONT<K3 0> |
| 309 |
8-97361 319-3 |
|
TIMER AFTER GLOW,QOS |
1 |
1602- |
|
A |
|
| 106 |
8-97043 749-0 |
|
SWITCH THERMO,AIR |
1 |
1602- |
|
A |
EURO1 SPECIFICATION<NT1> |
| 1 |
8-98028 198-0 |
|
STARTER ASM |
1 |
1602- |
|
A |
12V 2.3KW |
| 613 |
8-98304 376-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) PASSIVE ENTRY AND START SYSTE PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K3 0> |
| 327 |
8-97312 108-1 |
|
SENSOR CAMSHAFT POSITION |
1 |
1602- |
|
D |
|
| 613 |
8-98308 065-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START >,IMMOBILIZER SYSTEM<7KC> |
| 613 |
8-98273 833-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> |
| 4 |
8-98183 142-0 |
|
BOLT STARTER |
2 |
1602- |
|
D |
M12X70 FLANGE |
| 688 |
8-98176 474-0 |
|
CONTROLLER GLOW PLUG |
1 |
1602- |
|
D |
|
| 23 |
0-91180 210-0 |
|
NUT GEN |
1 |
1602- |
|
A D |
04.085 (A) M10 FLANGE |
| 4 |
0-28051 260-0 |
|
BOLT STARTER |
2 |
1602- |
|
BC |
IDENTIFICATION LABEL FOR KD<6 M12X6 0 FLANGE |
| 105 |
8-94121 152-1 |
|
SWITCH THERMO,QOS |
1 |
1602- |
|
A |
|
| 4 |
8-97161 846-1 |
|
BOLT STARTER |
2 |
1602- |
|
BC |
EXC. IDENTIFICATION LABEL FOR M12X60 |
| 613 |
8-98223 062-8 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC (BCC) EURO4 SPECIFICATION<NT4 > EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 613 |
8-98273 837-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K3 0> |
| 2 |
8-98225 813-0 |
|
GENERATOR ASM |
1 |
1602- |
|
BC |
12V 90A |
| 23 |
0-91180 210-0 |
|
NUT GEN |
1 |
1602- |
|
BC |
IDENTIFICATION LABEL FOR KD<6 04.085 (A) M10 FLANGE |
| 613 |
8-98273 840-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC(BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K3 0> |
| 613 |
8-98223 031-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,HIGH NSION(7YC) |
| 613 |
8-98223 044-6 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) PROVISIONAL PACKAGE SPEC(BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 640 |
0-28650 616-0 |
|
BOLT BRKT,QOS GLOW TIMER |
2 |
1602- |
|
A |
02.343 M6X16 FLANGE |
| 4 |
0-28051 260-0 |
|
BOLT STARTER |
2 |
1602- |
|
A |
M12X6 0 FLANGE |
| 766 |
8-97369 404-0 |
|
GASKET SENSOR |
1 |
1602- |
|
BCD |
00.724 ID=14.2 OD=18.8 |
| 133 |
0-28650 616-0 |
|
BOLT EGR CONTROLLER |
2 |
1602- |
|
A |
EURO1 SPECIFICATION<NT1> 02.343 M6X16 FLANGE |
| 111 |
0-28650 825-0 |
|
BOLT SWITCH BRKT |
1 |
1602- |
|
A |
EURO1 SPECIFICATION<NT1> 06 .216 M8X2 5 FLANGE |
| 420 |
8-98226 846-1 |
|
BRACKET HARNESS |
1 |
1602- |
|
BC |
(B) |
| 613 |
8-98273 839-2 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
B |
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC (BCC) EMISSION SYSTEM R15-04<K75> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K3 0> |
| 613 |
8-98224 139-3 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
4X2 (TFB***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION(7YC) EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC UISE CONT<K30> |
| 62 |
8-97383 407-0 |
|
BOLT PROTECTOR |
3 |
1602- |
|
D |
|
| 23 |
0-91180 108-0 |
|
NUT GEN |
1 |
1602- |
|
BCD |
IDENTIFICATION LABEL FOR KD<6 01. 062 (B) M8 FLANGE |
| 613 |
8-98308 066-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
A/T 5 SPEED-AISIN(MA1) PASSIVE ENTRY AND START SYSTEM PROVISIONAL PACKAGE SPEC (BCC) EURO1 SPECIFICATION<NT1>,EURO ATION<NT2 > IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K3 0> |
| 796 |
8-98009 418-0 |
|
SENSOR MAP |
1 |
1602- |
|
BCD |
|
| 613 |
8-98304 377-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC (BCC) EMISSION SYSTEM R15-04<K75> EXC. PASSIVE ENTRY AND START >,AUTO CRUISE CONT<K30>,IMMOB TEM<7KC> |
| 253 |
8-98157 835-2 |
|
PROTECTOR HEAT,GEN |
1 |
1602- |
|
D |
|
| 613 |
8-98268 827-1 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
D |
4X4 (TFS***) M/T AISIN 6 SPEED(RNU) EURO5 SPECIFICATION<NT5> EXC. PASSIVE ENTRY AND START >,PROVISIONAL PACKAGE SPEC (BC UISE CONT<K30>,IMMOBILIZER SY |
| 97 |
8-94457 511-0 |
|
SWITCH THERMO,EGR CONT |
1 |
1602- |
|
A |
EURO1 SPECIFICATION<NT1> |
| 613 |
8-98223 022-4 |
|
CONTROL UNIT ENG |
1 |
1602- |
|
C |
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) PROVISIONAL PACKAGE SPEC(BCC) AUTO CRUISE CONT<K3 0 > EURO4 SPECIFICATION<NT4 > IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START > |
